895409 (MP-3132) - Gravely Tow-Behind Mulching Mower Attachment (SN: 000101 & Above) Rear Frame Assembly Parts Diagram

Tow-Behind Mulching Mower Attachment

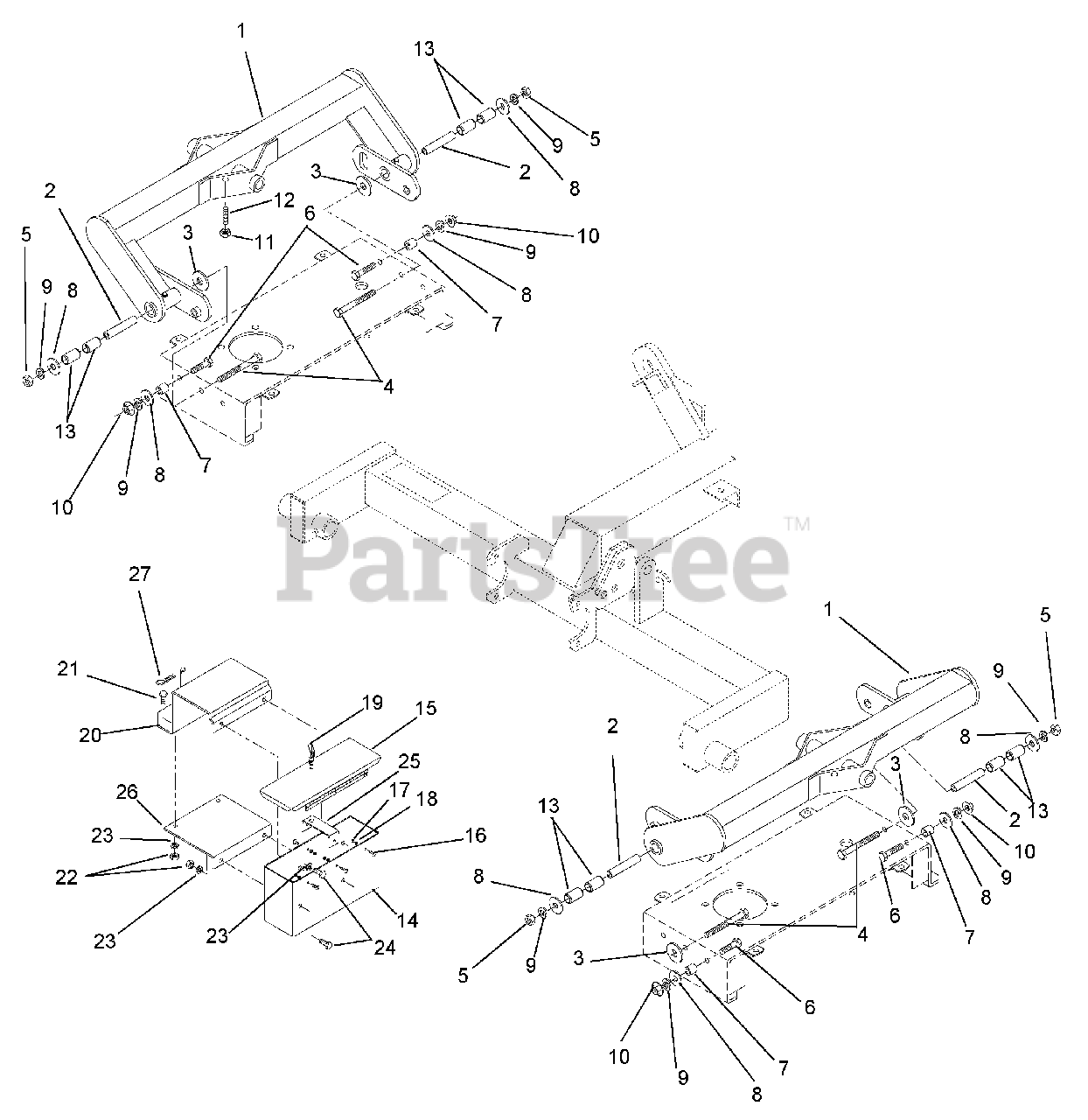

Rear Frame Assembly Parts Diagram

  • Title

1

02385151

Weldment, Deck Roll Bracket (Dick, painted part not yet in AS400)

Note: (Dick, painted part not yet in AS400)

$

$

Not available

2

Gravely 05500618

Bushing, Wear

$

$

Not available

3

Gravely 06400531

Washer, Heavy Duty Safety

$

$

Not available

4

Gravely 05900815

Cap Screw, Hex Head .50-13 x 5.5

$5.99

$

Usually ships in 4-12 days

0

5

Gravely 02116500

Nut, Lock .50-13

$

$

Not available

6

Gravely 05901006

Cap Screw, Hex Head .50 x 2 Grade 8

$

$

Not available

7

Gravely 02945100

Spacer, Limit

$

$

Not available

8

Gravely 06400416

Washer, Flat .50 SAE

$3.49

$

Usually ships in 4-12 days

0

9

Gravely 06300028

Washer, Lock .50

$3.49

$

Usually ships in 4-12 days

0

10

Gravely 06500612

Nut, Hex .50

$3.49

$

Usually ships in 4-12 days

0

11

Gravely 02116100

Nut, Jam .50-13

$3.99

$

Usually ships in 4-12 days

0

12

Gravely 06000113

Screw, Set .50-163 x 1.75

$

$

Not available

13

Gravely 05500619

Bushing, Spring 1 x 1.75 x 1.75

$

$

Not available

14

Gravely 02627251

Weldment, Box

$

$

Not available

15

Gravely 02944751

Weldment, Top

$

$

Not available

16

Gravely 05900915

Screw, Slotted Pan Head Machine #10 x .50

$

$

Not available

17

Gravely 06500609

Nut, Hex #10

$

$

Not available

18

Gravely 06300037

Washer, Lock #10

$

$

Not available

19

Gravely 02943700

Latch, Swell

$19.99

$

Usually ships in 4-12 days

0

20

Gravely 02626951

Bracket, Upper Tool Box Mounting

$

$

Not available

21

Gravely 05900731

Cap Screw, Hex Head .38-16 x .75

$3.99

$

Usually ships in 4-12 days

0

22

Gravely 06500610

Nut, Hex .38-16

$

$

Not available

23

Gravely 06300030

Washer, Locking .38

$

$

Not available

24

Gravely 05901107

Cap Screw, Hex Head .38 x .75

$

$

Not available

25

Gravely 02947151

Strap

$

$

Not available

26

Gravely 02627051

Bracket, Lower Tool Box Mounting

$

$

Not available

27

Gravely 02106400

Pin, Presto Spring Clip 9 G

$

$

Not available
