895409 (MP-3132) - Gravely Tow-Behind Mulching Mower Attachment (SN: 000101 & Above) Spindle - MP Parts Diagram

Tow-Behind Mulching Mower Attachment

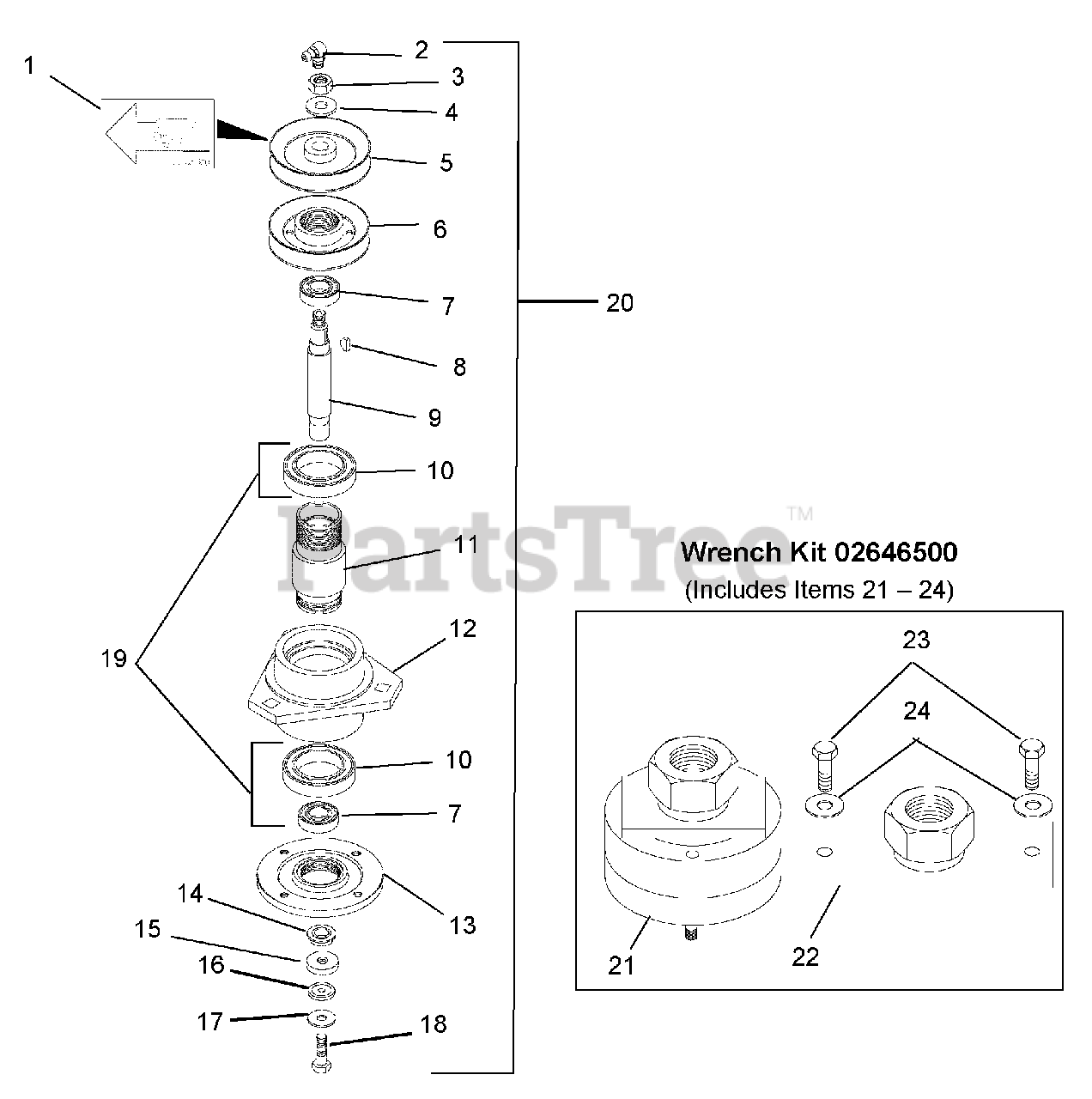

Spindle - MP Parts Diagram

  • Title

1

Gravely 02591600

DECAL GREASE 25 HRS 50022862

$

$

Not available

2

Gravely 07000836

GREASE FITTING 1/4-28 900 2361

$

$

Not available

3

Gravely 02892600

LOCKNUT 5/8-11 GRC CP

$4.99

$

Usually ships in 4-12 days

0

4

Gravely 06400511

FLATWASHER 5/8 SAE ZP 20748

$

$

Not available

5

Gravely 02931400

SHEAVE; 5.50 EOD 95752

$59.99

$

Usually ships in 4-12 days

0

6

Gravely 02933800

LOWER SHEAVE 96165

$182.99

$

Usually ships in 4-12 days

0

7

Gravely 05400639

BEARING 25 MM CLEARANCE 4

$

$

Not available

8

Gravely 02145000

WOODRUFF KEY #606 (3/4 20593

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 02931700

SHAFT INNER 95757

$179.99

$

Usually ships in 4-12 days

0

10

Gravely 05400702

BEARING; 6012 94953

$

$

Not available

11

Gravely 02933700

OUTER SHAFT 96162

$316.99

$

Usually ships in 4-12 days

0

12

Gravely 07100711

HUB; MACHINED SPINDLE 94924

$

$

Not available

13

Gravely 02933600

BLADE CARRIER 96161

$164.99

$

Usually ships in 4-12 days

0

14

Gravely 05500539

BUSHING; BLADE 50017379

$

$

Not available

15

Gravely 06400720

WASHER; BLADE 50034015

$

$

Not available

16

Gravely 06400724

WASHER BLADE REINFOR 50100045

$

$

Not available

17

Gravely 06400531

HEAVY DUTY SAFTEY WASHER 44040

$

$

Not available

18

Gravely 05901004

HHCS 1/2-20 X1-3/4 GR8 Y ZINC

$4.99

$

Usually ships in 4-12 days

0

19

Gravely 05400513

BEARING KIT;MULCH NO REGREASE

Note: (Includes Items 7 and 10)

$

$

Not available

20

Gravely 02245051

SPINDLE ASSY.; MULCHI 50018216

Note: (Includes Items 1 - 18)

$

$

Not available

21

Gravely 02646700

SHEAVE WRENCH ASSY 50026086

$

$

Not available

22

Gravely 02646600

WRENCH WELDMENT 50026084

$

$

Not available

23

Gravely 05900931

HEX HD CPSC 3/8-16 X 1-3/4

$

$

Not available

24

Gravely 06400421

FLATWASHER 3/8 USS ZP 15915

$

$

Not available
