895409 (MP-3132) - Gravely Tow-Behind Mulching Mower Attachment (SN: 000101 & Above) Transport Locks Parts Diagram

Tow-Behind Mulching Mower Attachment

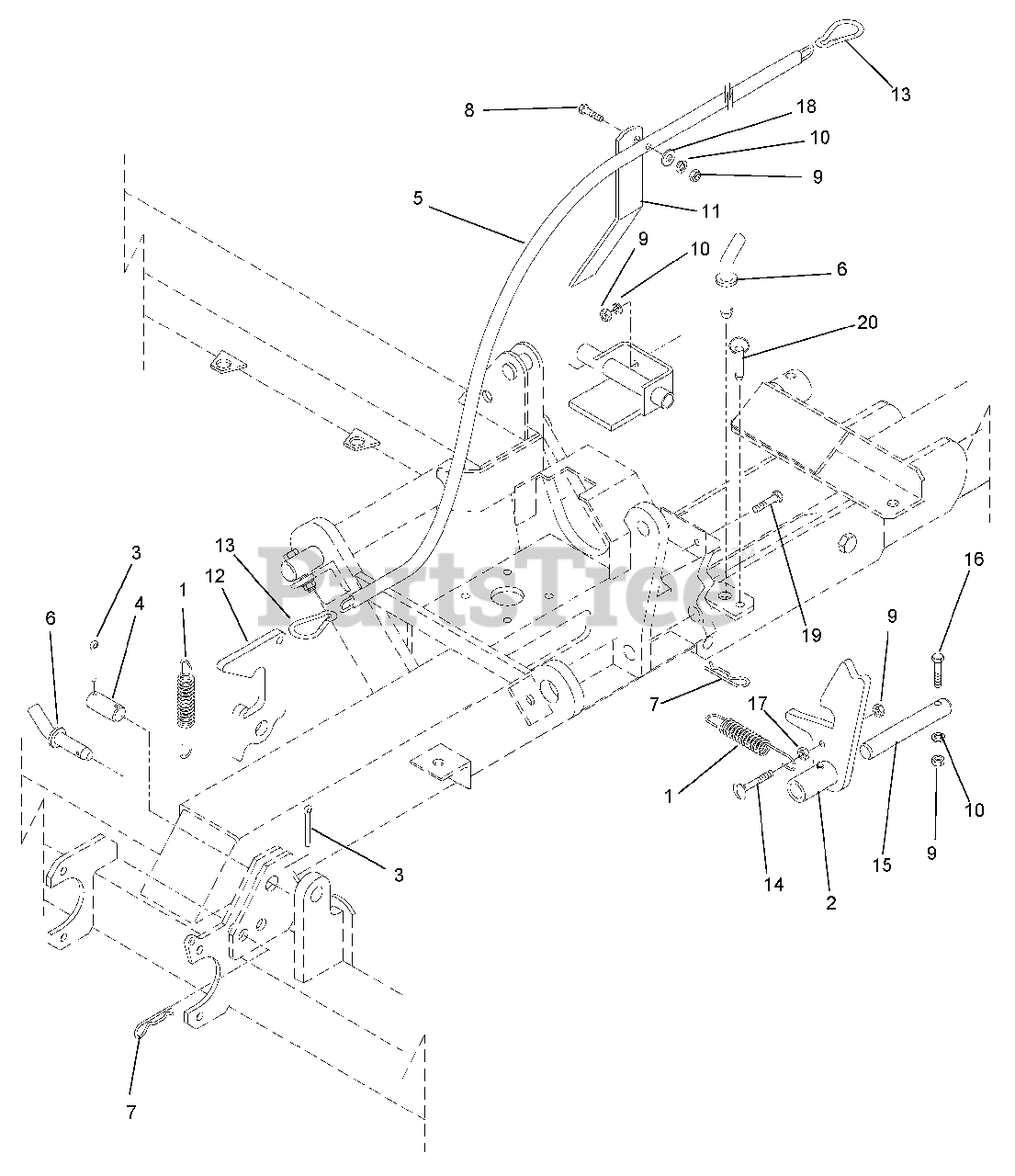

Transport Locks Parts Diagram

  • Title

1

Gravely 02897900

Spring, Extension

$

$

Not available

2

Gravely 02247151

Weldment, Wing Lock Right Hand

$

$

Not available

Gravely 02247251

Weldment, Wing Lock Left Hand

$

$

Not available

3

Gravely 06700105

Pin, Cotter .156 x 1.5

$

$

Not available

4

Gravely 02896500

Pin

$

$

Not available

5

Gravely 02238000

Chain With Sleeve

$

$

Not available

6

Gravely 02882300

Pin

$

$

Not available

7

Gravely 02106400

Pin, Spring Clip

$

$

Not available

8

Gravely 05900824

Cap Screw, Hex Head .38-16 x 1.5

$

$

Not available

9

Gravely 06500610

Nut, Hex .38-16

$

$

Not available

10

Gravely 06300030

Washer, Lock .38

$

$

Not available

11

Gravely 02248451

Weldment, Handle

$

$

Not available

12

Gravely 02625551

Hook, Rear Deck Locking

$

$

Not available

13

Gravely 05700120

Spring, Snap

$

$

Not available

14

Gravely 06200106

Bolt, Carriage .38 x 2.25

$

$

Not available

15

Gravely 02250100

Pin

$

$

Not available

16

Gravely 05900931

Cap Screw, Hex Head .38-16 x 1.75

$

$

Not available

17

Gravely 02091800

Nut, Jam .38-16

$

$

Not available

18

Gravely 06400421

Washer, Flat .38

$

$

Not available

19

Gravely 05900623

Cap Screw, Hex Head .38-16 x 1.25

$

$

Not available

20

Gravely 02897800

Pin

$

$

Not available
