895412 - Gravely Walker Sprayer (SN: 000101 & Above) Walking Spray Attachment Parts Diagram

Walker Sprayer

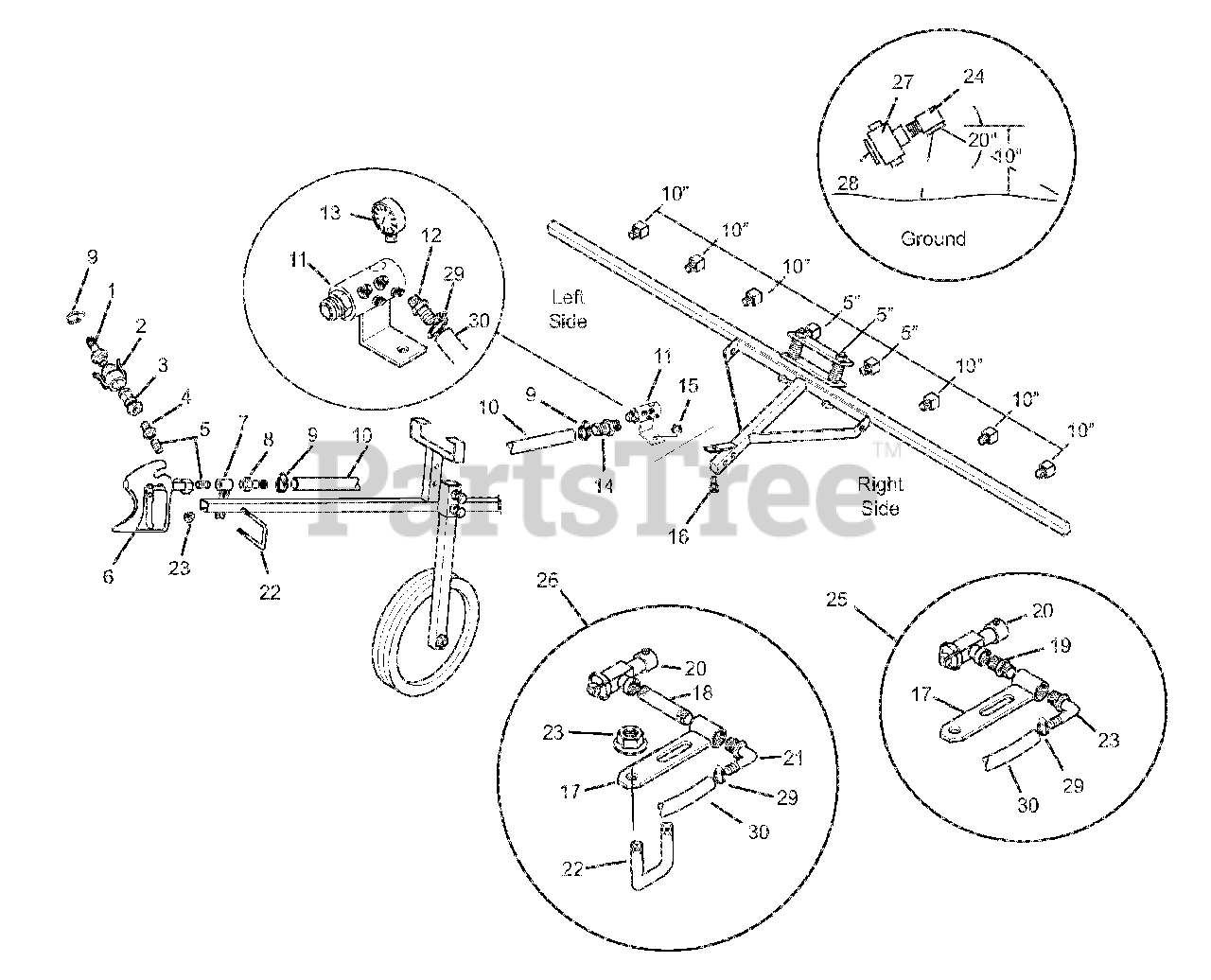

Walking Spray Attachment Parts Diagram

  • Title

1

Gravely 07001235

ADAPTER 3/4 MNPT X 50026375

$

$

Not available

2

Gravely 02621500

FEMALE QUICK COUPLER 50023905

$

$

Not available

3

Gravely 02621400

MALE QUICK COUPLER 50023904

$

$

Not available

4

Gravely 07001130

ADAPTER 3/4 MNPT X 1/2FNPT

$

$

Not available

5

Gravely 07001129

ADAPTER 1/2 MNPT CLOSE X 1-1/8

$

$

Not available

6

Gravely 02618900

SPRAY GUN 50023865

$

$

Not available

7

Gravely 02621300

COUPLER WELDMENT 50023903

$

$

Not available

8

Gravely 07001036

ADAPTER 1/2 MNPT X 3/4 HB

$

$

Not available

9

Gravely 02581900

CLAMP: WORM DRIVE #1 50022714

$

$

Not available

10

Gravely 07001131

HOSE 3/4 ID 200 PSI X 42IN

$

$

Not available

11

Gravely 02620300

MANIFOLD ASSEMBLY 50023881

$

$

Not available

12

Gravely 07001127

ADAPTER 1/4 MNPT X 50023888

$

$

Not available

13

Gravely 02616300

2 1/2 LIQUID GAUGE 50023812

$

$

Not available

14

Gravely 07001038

ADAPTER 3/4 MNPT X 3/4 HB

$

$

Not available

15

Gravely 06500517

HEX NUT 3/8-16 CP NYLOCK 44601

$

$

Not available

16

Gravely 05900801

HHCS 3/8-16 X 1 G5 20034
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 02620600

NOZZLE BRACKET WELDM 50023891

$

$

Not available

18

Gravely 02620800

NIPPLE 1/4 MNPT X 3IN 50023894

$

$

Not available

19

Gravely 07001218

ADAPTER 1/4 MNPT POLYPROP

$

$

Not available

20

Gravely 02620700

DIAPHRAGM CHECK VALVE 50023892

$

$

Not available

21

Gravely 07001128

ELBOW 1/4 MNPT X 3/4 HB POLY

$

$

Not available

22

Gravely 07001027

U-BOLT 5/16-18 UNC 50022814

$

$

Not available

23

Gravely 06500533

SRATED FLNG HEX NUT 5 50005770

$

$

Not available

24

Gravely 02651500

MC NOZZLE ASSEMBLY 2.50

$

$

Not available

25

Gravely 02621000

NOZZLE BRACKET ASSEM 50023897

$

$

Not available

26

Gravely 02621100

NOZZLE BRACKET ASSEM 50023898

$

$

Not available

27

Gravely 02620900

ADAPTER CAP 50023895

$

$

Not available

28

Gravely 05600321

SEAT GASKET 50023896

$

$

Not available

29

Gravely 02581800

CLAMP: WORM DRV 62606 50022713

$

$

Not available

30

Gravely 07001122

HOSE 3/8 I.D. 150 50023882

$

$

Not available

Gravely 07001123

HOSE 3/8 I.D. 150 50023883

$

$

Not available

Gravely 07001124

HOSE 3/8 I.D. 150 50023884

$

$

Not available

Gravely 07001125

HOSE 3/8 I.D. 150 50023885

$

$

Not available
