895434 (TRM-3083) - Gravely Tow-Behind Reel Mower Attachment (SN: 000101 & Above) Gearbox & V-Belts Parts Diagram
Tow-Behind Reel Mower Attachment

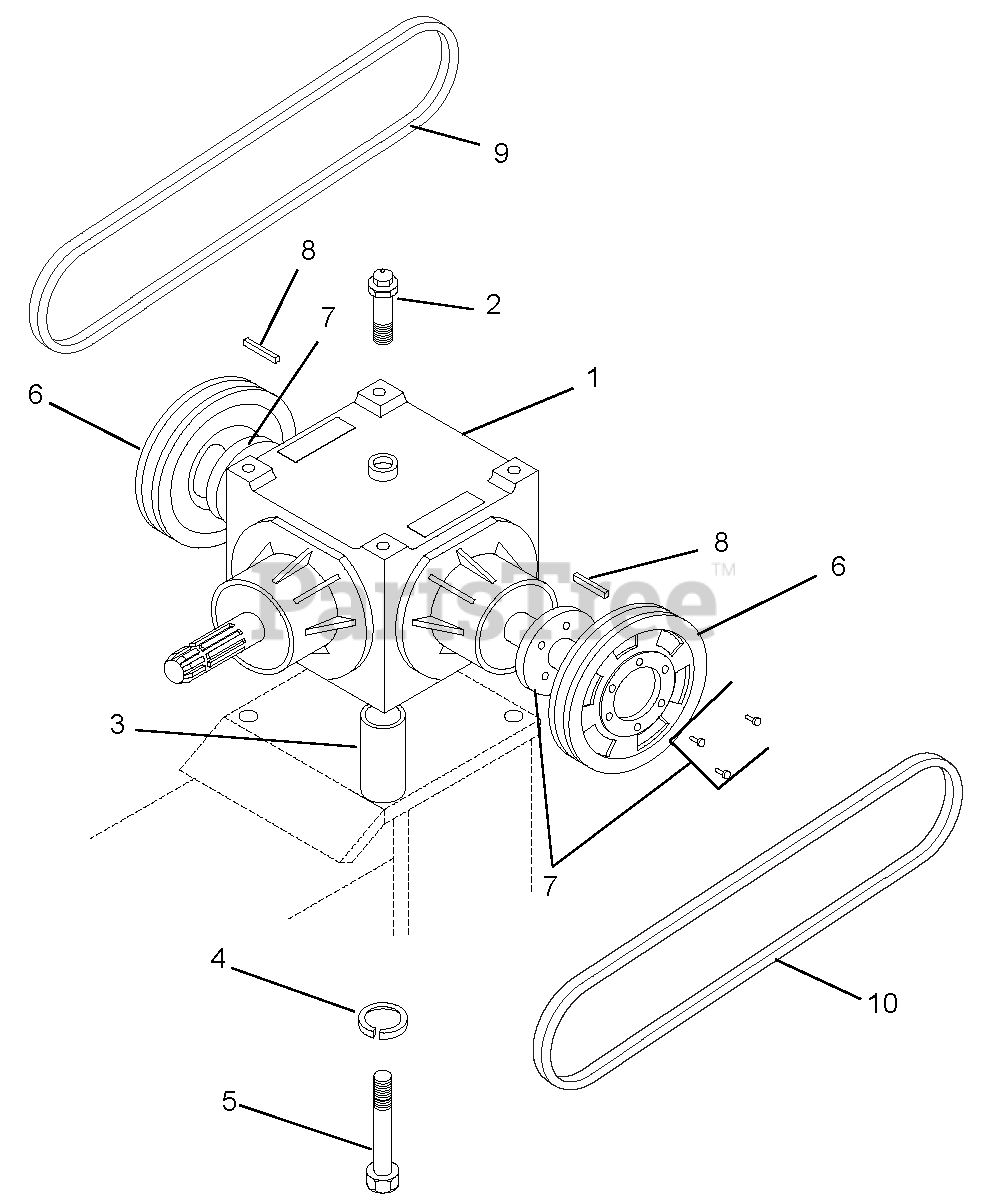

Gearbox & V-Belts Parts Diagram
Gravely 02295051
GEARBOX ASSEMBLY
$
$
Not available
Gravely 02875000
VALVE VENT PLUG 80538
$
$
Not available
Gravely 02374651
MOUNTING SPACER, GEAR BOX
$
$
Not available
Gravely 06300028
LOCKWASHER 1/2 CP PG 1/2 15806
$3.99
$
Usually ships in 4-12 days
Gravely 05900823
HEX HD CPSC 1/2-13 X 3 G 20864
$
$
Not available
Gravely 07333151
PULLEY,1BELT 7.0 (SDS) GEARBOX
$
$
Not available
Gravely 05563251
BUSHING 1 1/8 (SDS)
$
$
Not available
Gravely 06600139
KEY .25 X .25 X 2.00 65485
$
$
Not available
Gravely 07200403
BELT-V BX78 (ALSO 5 50022450
$
$
Not available
Gravely 07200404
BELT-V BX70 (ALSO 5 50022451
$
$
Not available
