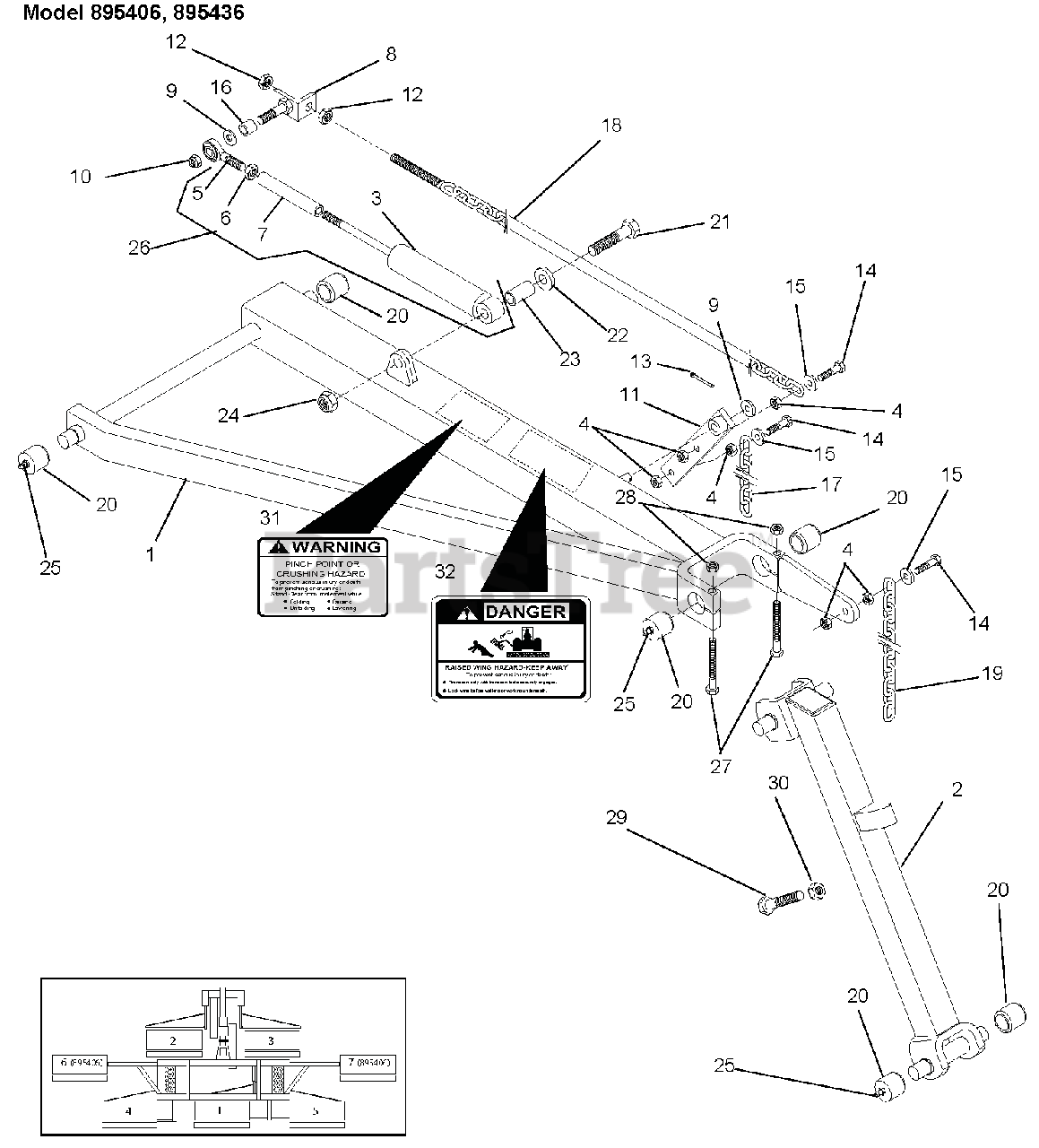

895435 (TRM-5138) - Gravely Tow-Behind Reel Mower Attachment (SN: 000101 & Above) Folding Lift Arms Parts Diagram

Tow-Behind Reel Mower Attachment

Folding Lift Arms Parts Diagram

  • Title

1

Gravely 02391653

INNER ARM WELDMENT LEFT HAND

$

$

Not available

Gravely 02391753

INNER ARM WELDMENT RIGHT HAND

$

$

Not available

2

Gravely 02389953

OUTER LIFT ARM WELDMENT

$

$

Not available

3

Gravely 02953800

SHOCK ABSORBER 1070004

$

$

Not available

4

Gravely 02091800

JAM NUT 3/8-16 10151200

$

$

Not available

5

Gravely 07001001

ROD END 1/2-20 MA 50019923

$

$

Not available

6

Gravely 02223900

JAM NUT 1/2-20 CP NF 44608

$

$

Not available

7

Gravely 02996251

MOUNTING ADAPTER, DAMPER

$

$

Not available

8

Gravely 07152651

LUG WELDMENT DAMPER

$

$

Not available

9

Gravely 06400416

FLATWASHER 1/2 SAE ZP 15829

$

$

Not available

10

Gravely 06500510

HEX NUT 1/2-13 CP NYLOCK 44539

$

$

Not available

11

Gravely 02368451

ARM LIFT WELDMENT, CHAIN

$

$

Not available

12

Gravely 02116100

JAM NUT 1/2 -13 CP 15519

$

$

Not available

13

Gravely 06700119

COTTER PIN 5/32 X 1 Z 21020510

$

$

Not available

14

Gravely 05900824

HEX HD CPSC 3/8-16 X 1-1/2

$

$

Not available

15

Gravely 06400415

WASHER 1565-1

$

$

Not available

16

Gravely 05500614

BUSHING DAMPER 50019961

$

$

Not available

17

Gravely 02376700

LIFT CHAIN INSIDE ( 50019959

Note: (#6 and #7)

$

$

Not available

18

Gravely 02376500

CHAIN ADJUSTER WELDME 50019957

$

$

Not available

19

Gravely 02376600

LIFT CHAIN OUTSIDE 50019958

Note: (#6 and #7)

$

$

Not available

20

Gravely 05400413

BEARING CUP ASSEMBLY 50019948

$

$

Not available

21

Gravely 05900922

HEX HD CPSC 5/8-11 X 3 G 44057

$

$

Not available

22

Gravely 06400511

FLATWASHER 5/8 SAE ZP 20748

$

$

Not available

23

Gravely 02996100

DAMPER BUSHING

$

$

Not available

24

Gravely 06500515

HEX NUT 5/8-11 CP NYLOCK 44599

$

$

Not available

25

Gravely 07000916

GREASE FITTING 1/4-28 UN 449

$

$

Not available

26

Gravely 02370400

DAMPER ASSEMBLY 50019924

$

$

Not available

27

Gravely 05900727

HHCS 3/8-16 X 3 G5 YZ 19055

$

$

Not available

28

Gravely 06500517

HEX NUT 3/8-16 CP NYLOCK 44601

$

$

Not available

29

Gravely 05900822

HHCS 1/2-13 X 3-1/2 G5

$

$

Not available

30

Gravely 06500612

HEX NUT 1/2 CP 8151600

$

$

Not available

31

Gravely 02541700

WARNING DECAL 50022082

$

$

Not available

32

Gravely 02541300

DANGER DECAL 50022078

$

$

Not available
