895800 - Parker Estate Master 100" Sweeper, Mesh Bottom (SN: 000101 - 000999) Basket Assembly Parts Diagram

Estate Master 100" Sweeper, Mesh Bottom

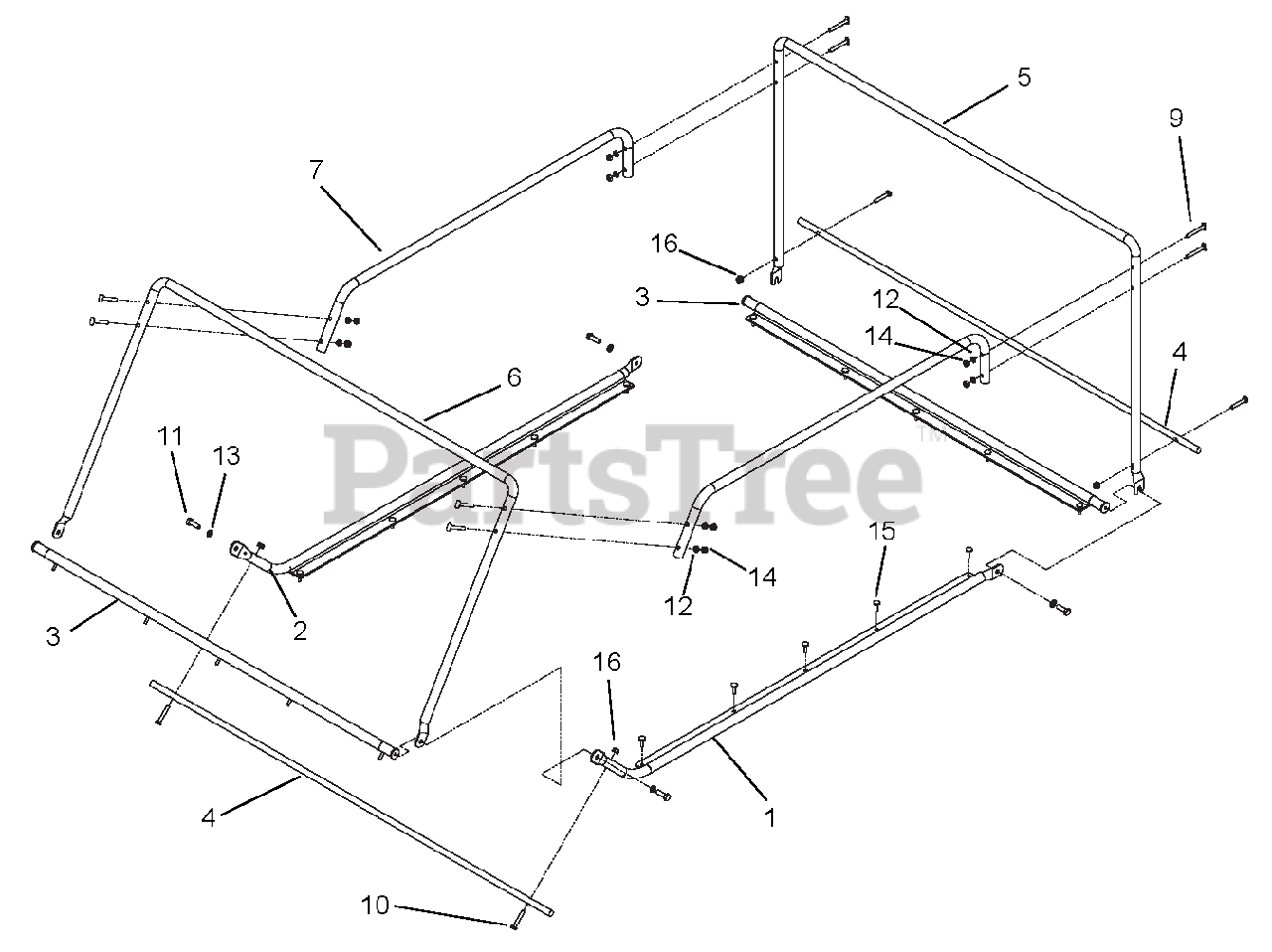

Basket Assembly Parts Diagram

  • Title

1

Gravely PSA-1590-C

SWP-BASKET CLAMP ASSY.

$

$

Not available

2

Gravely PSA-1591-C

SWP-BASKET CLAMP ASSY.

$

$

Not available

3

Gravely PSA-1427-B

SWP-BOTTOM BASKET CLAMP ASY

$

$

Not available

4

Gravely P86-105-B

SUPPORT ROD

$

$

Not available

5

Gravely P82-86-B

REAR UPRIGHT

$

$

Not available

6

Gravely P82-87-B

FRONT BSKT. BRACE

$

$

Not available

7

Gravely P80-137-B

FRAME BASKET SIDE TOP

$

$

Not available

8

Gravely 04288100

BASKET, SEWING

$

$

Not available

9

Gravely P69-416-32

BLT-CONT HEAD 1/4-20 X 2.00

$7.49

$

Usually ships in 4-12 days

0

10

Gravely 05952500

BLT-HEX .25-20X1.50 GR5 YWZC
(Superseded to 05901739)

$2.49

$

In Stock, Qty 20+

0

11

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$2.49

$

In Stock, Qty 20+

0

12

Gravely 06308400

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 06533200

NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$1.49

$

In Stock, Qty 10

0

15

Gravely P92-28

BULB TITE RIVET (1PLZ7)

$

$

Not available

16

Gravely 06500012

NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$2.49

$

In Stock, Qty 20+

0

17

Gravely 04295900

WIND APRON ASSEMBLY SU

$108.99

$

Usually ships in 4-12 days

0

18

Gravely P360900

SCREEN MESH 46.313X39.125X.063

$

$

Not available

19

Gravely P89-57-C

BASKET BOTTOM

$

$

Not available
