895800 - Parker Estate Master 100" Sweeper, Mesh Bottom (SN: 000101 - 000999) Estate Master Hitch Parts Diagram

Estate Master 100" Sweeper, Mesh Bottom

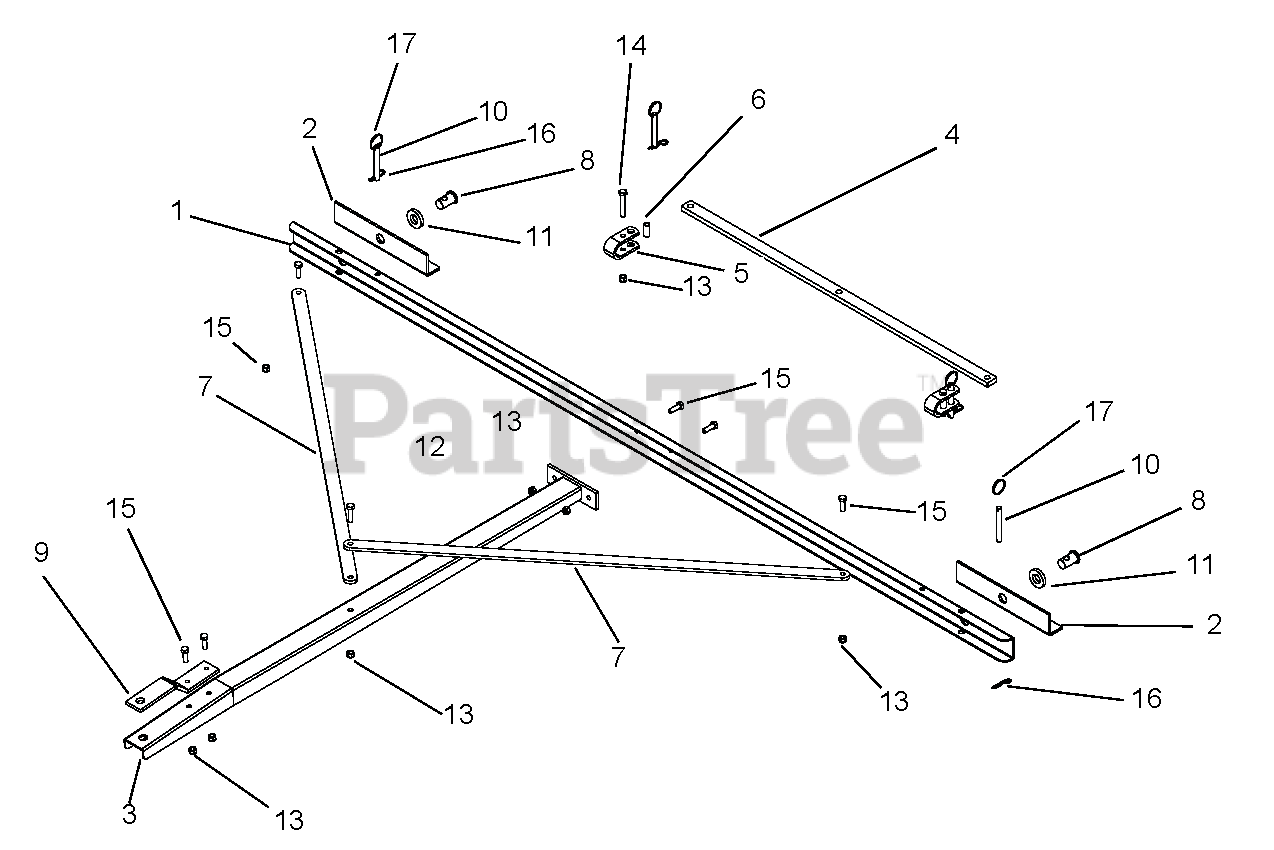

Estate Master Hitch Parts Diagram

  • Title

1

Gravely P68-73-C

SWP-DRAW BAR 11GA

$

$

Not available

2

Gravely P76-48-PTD

2

$

$

Not available

3

Gravely P76-51-B

SWP-WELD-TONGUE

$

$

Not available

4

Gravely P82-46-A

LINK EM @ 31.50"

$41.99

$

Usually ships in 4-12 days

0

5

Gravely P82-47-B

SWP-BRACKET

$

$

Not available

6

Gravely P80-238-A

BUSHING-.437 OD X 1.00 L ZINC

$

$

Not available

7

Gravely P76-50PTD

SWP-BRACE PAINTED

$

$

Not available

8

Gravely P68-71-A

PIN SWIVEL

$

$

Not available

9

Gravely P58-107-B

SWP-BRACKET-EM

$

$

Not available

10

Gravely 04197868

PIN, HITCH
(Superseded to 04197800)

$30.99

$

Usually ships in 4-12 days

0

11

Gravely 06439000

WSHR-FL-STL.812X1.50X.135YWZC
(Superseded to 06401140)

$2.49

$

In Stock, Qty 20+

0

12

Gravely 05947500

BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$3.49

$

In Stock, Qty 12

0

13

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.99

$

In Stock, Qty 5

0

14

Gravely 05957200

BLT-HEX .31-18X2.00 GR5 YWZC
(Superseded to 05901805)

$2.49

$

In Stock, Qty 17

0

15

Gravely P713027

BLT-HH 5/16-18 X 1 #5

$

$

Not available

16

Gravely 06700002

PIN-HAIR CTR .09 X 1.50 YWZC
(Superseded to 06700219)

$3.49

$

In Stock, Qty 6

0

17

Gravely M88183

RING, LOCKING

$

$

Not available
