895800 - Parker Estate Master 100" Sweeper, Mesh Bottom (SN: 001000 & Above) Basket Assembly Parts Diagram

Estate Master 100" Sweeper, Mesh Bottom

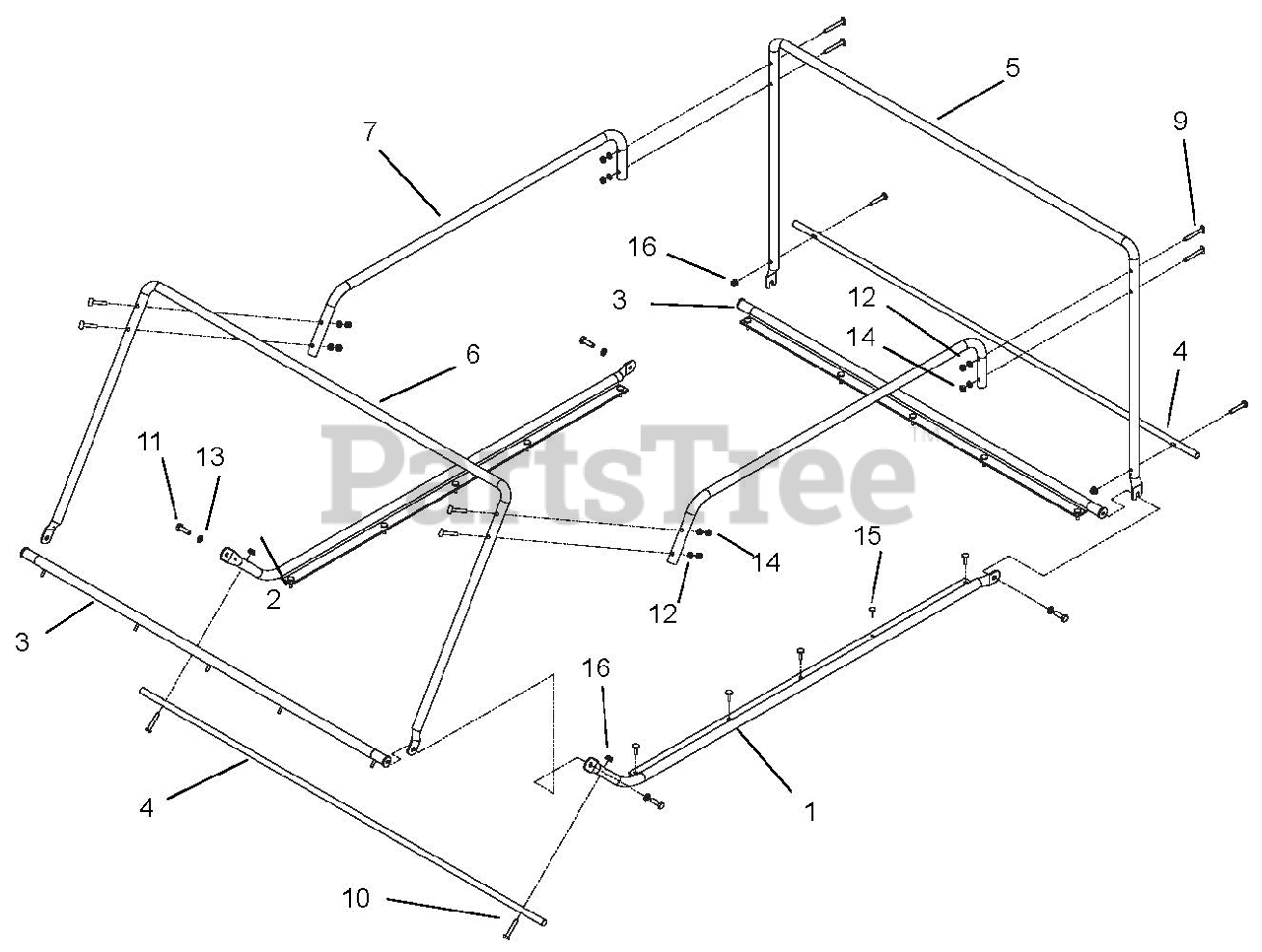

Basket Assembly Parts Diagram

  • Title

1

Gravely PSA-1590-C

Basket Clamp Assembly

$

$

Not available

2

Gravely PSA-1591-C

Basket Clamp Assembly

$

$

Not available

3

Gravely PSA-1427-B

Basket Clamp Assembly

$90.99

$

Usually ships in 4-12 days

0

4

Gravely P86-105-B

Support Rod

$

$

Not available

5

Gravely P82-86-B

Rear Upright

$

$

Not available

6

Gravely P82-87-B

Front Upright

$

$

Not available

7

Gravely P80-137-B

Frame Basket Side Top

$

$

Not available

8

Gravely 04288100

Basket Assembly

Note: (Not Shown)

$

$

Not available

9

Gravely P69-416-32

Bolt, 1/4-20 x 2.0 Contour Head

$5.99

$

Usually ships in 4-12 days

0

10

Gravely 05952500

Bolt, Hex 1/4-20 x 1.5 Grade 5
(Superseded to 05901739)

$1.49

$

In Stock, Qty 8

0

11

Gravely 05946900

Bolt, Hex 5/16-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 11

0

12

Gravely 06308400

Washer, Lock .25 x .062 YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 16

0

13

Gravely 06308600

Washer, Lock .31 x .078 YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06533200

Nut, Hex 1/4-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 7

0

15

Gravely P92-28

Rivet, Bulb Tite

$

$

Not available

16

Gravely 06500012

Nut, Nylock Flange .25-20
(Superseded to 06500813)

$1.49

$

In Stock, Qty 12

0

17

Gravely 04295900

Wind Apron

Note: (Not Shown)

$101.99

$

Usually ships in 4-12 days

0

18

Gravely P360900

Basket Bottom, Mesh

Note: (Not Shown)

$

$

Not available

18

Gravely P89-57-C

Basket Bottom, Hard

Note: (Not Shown)

$

$

Not available
