895801 - Parker Estate Master 100" Sweeper, Hard Bottom (SN: 000101 - 000999) Sweeper Unit Assembly Parts Diagram

Estate Master 100" Sweeper, Hard Bottom

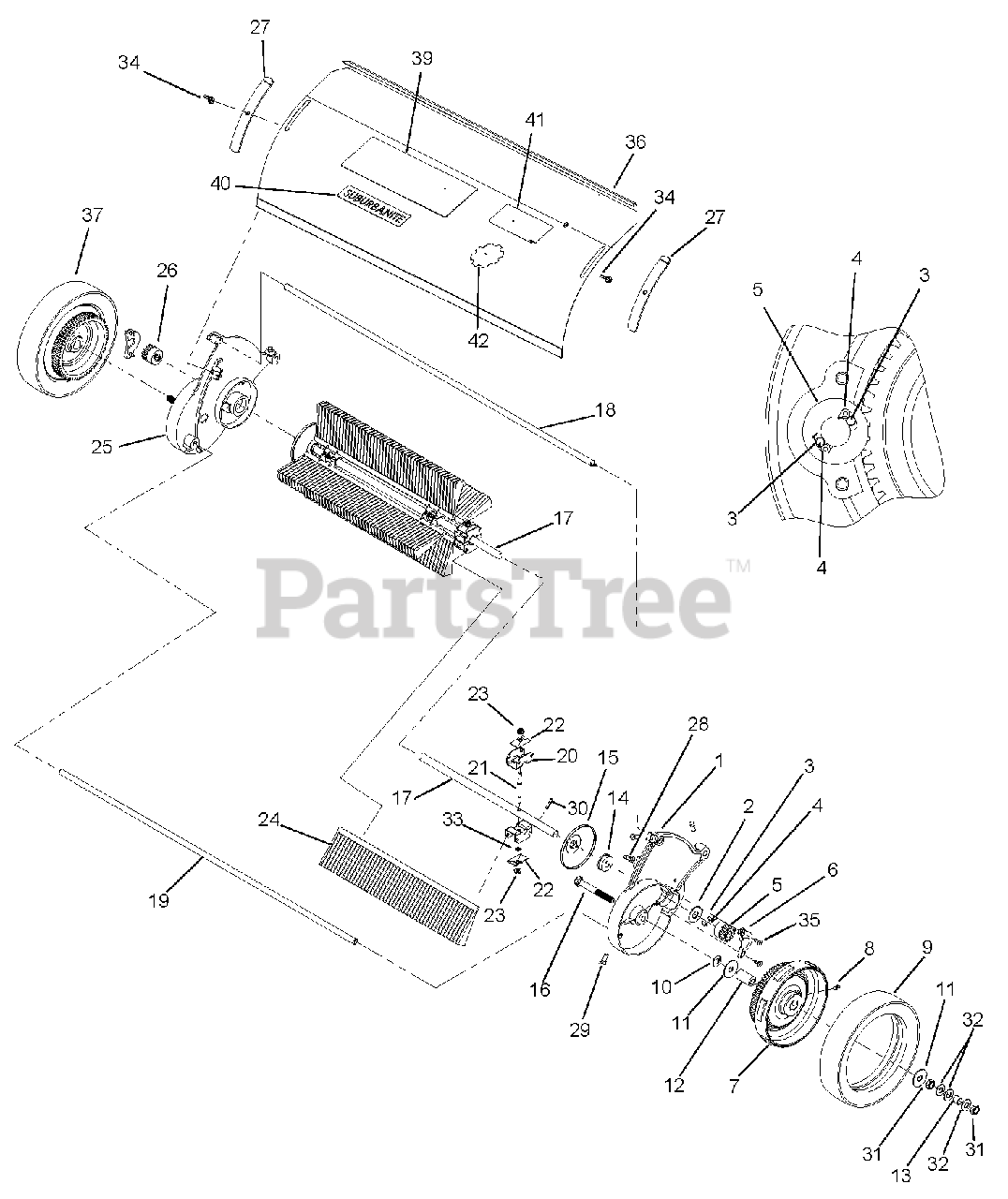

Sweeper Unit Assembly Parts Diagram

  • Title

1

Gravely P76-339-LF

1

$

$

Not available

2

Gravely P50-33-A

2

$

$

Not available

3

Gravely P74-80-A

4

$6.49

$

Usually ships in 4-12 days

0

4

Gravely P76-37-A

4

$13.99

$

In Stock, only 1 left!

0

5

Gravely P74-79-IB

1

$

$

Not available

6

Gravely P80-01-B

2

$

$

Not available

7

Gravely P58-14MCH

2

$111.99

$

Usually ships in 4-12 days

0

8

Gravely 07000934

2

$3.99

$

Usually ships in 4-12 days

0

9

Gravely P75-88-C

2

$37.99

$

Usually ships in 4-12 days

0

10

Gravely P946-816-16

2

$3.99

$

In Stock, only 2 left!

0

11

Gravely P58-05-A

4
(Superseded to 06401012)

$2.99

$

In Stock, Qty 20+

0

12

Gravely P58-06-A

2

$46.99

$

Usually ships in 4-12 days

0

13

Gravely P68-44-A

2

$11.99

$

In Stock, only 1 left!

0

14

Gravely P68-60-A

2

$

$

Not available

15

Gravely P74-166-B

2

$

$

Not available

16

Gravely P53-35-A

2

$13.99

$

Usually ships in 4-12 days

0

17

Gravely 04229100

1

$

$

Not available

18

Gravely P68-34-A

1

$

$

Not available

19

Gravely P68-33-A

1

$

$

Not available

20

Gravely P74-13-C

8

$21.99

$

Usually ships in 4-12 days

0

21

Gravely P74-16-PLT

4

$

$

Not available

22

Gravely P69-04-A

8

$6.99

$

Usually ships in 4-12 days

0

23

Gravely 06530100

8
(Superseded to 06500824)

$1.49

$

In Stock, Qty 20+

0

24

P1200-17-B

8

$

$

Not available

25

Gravely P76-338-RF

1

$

$

Not available

26

Gravely P74-78-RB

1

$7.49

$

In Stock, only 2 left!

0

27

Gravely P49-11-A

2

$23.99

$

Usually ships in 4-12 days

0

28

Gravely 05946900

2
(Superseded to 05901701)

$1.99

$

In Stock, only 4 left!

0

29

Gravely 06006125

6
(Superseded to 06000220)

$2.99

$

Usually ships in 4-12 days

0

30

Gravely P67-521-A

2

$

$

Not available

31

Gravely 06544000

4
(Superseded to 06500818)

$6.49

$

Usually ships in 4-12 days

0

32

Gravely 06441900

6
(Superseded to 06401015)

$1.49

$

In Stock, only 4 left!

0

33

Gravely P75-89-A

4

$4.76

$

In Stock, only 2 left!

0

34

Gravely 06503800

2

$2.99

$

Usually ships in 4-12 days

0

35

Gravely 06006130

4

$1.99

$

Usually ships in 4-12 days

0

36

Gravely 04199800

1

$

$

Not available

37

Gravely PSA-609-C

2

$

$

Not available

38

Gravely PSA-1580-B

1

$

$

Not available

39

Gravely 07800314

1

$

$

Not available

40

Gravely 04199900

1

$

$

Not available

41

Gravely 04147800

1

$

$

Not available

42

Gravely 07800317

1

$

$

Not available
