895801 - Parker Estate Master 100" Sweeper, Hard Bottom (SN: 001000 & Above) Estate Master Hitch Parts Diagram

Estate Master 100" Sweeper, Hard Bottom

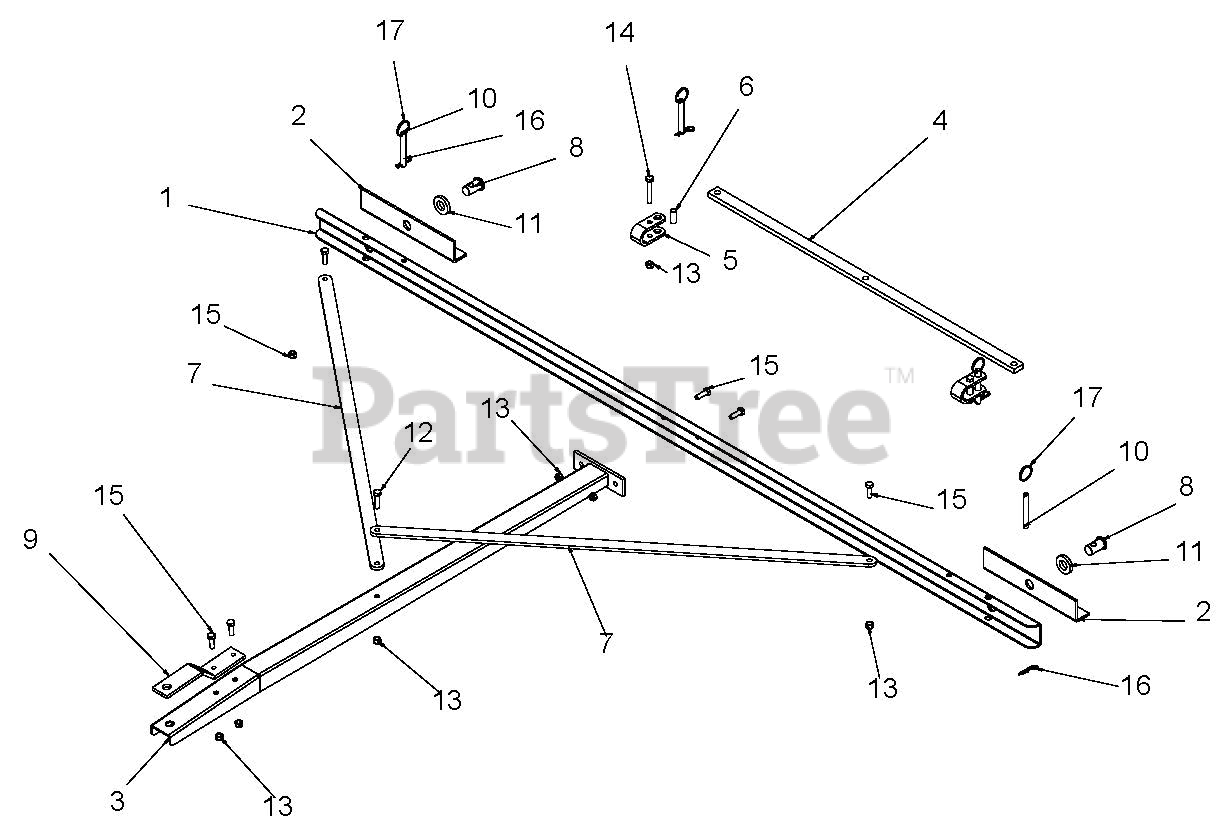

Estate Master Hitch Parts Diagram

  • Title

1

Gravely P68-73-C

Draw Bar

$

$

Not available

2

Gravely P76-48-PTD

Bracket

$

$

Not available

3

Gravely P76-51-B

Tongue Weldment

$

$

Not available

4

Gravely P82-46-A

Link

$38.99

$

Usually ships in 4-12 days

0

5

Gravely P82-47-B

Bracket

$

$

Not available

6

Gravely P80-238-A

Bushing, .437 OD x 1.00

$

$

Not available

7

Gravely P76-50PTD

Brace

$

$

Not available

8

Gravely P68-71-A

Swivel Pin

$

$

Not available

9

Gravely P58-107-B

Bracket

$

$

Not available

10

Gravely 04197800

Pin, Hitch

$12.99

$

Usually ships in 4-12 days

0

11

Gravely 06439000

Washer, Flat Steel .812 x 1.5 x .135 YWZC
(Superseded to 06401140)

$1.49

$

In Stock, Qty 19

0

12

Gravely 05947500

Bolt, 5/16-18 x 1.25 Grade 5
(Superseded to 05901803)

$2.49

$

In Stock, only 2 left!

0

13

Gravely 06530200

Nut, Nyloc 5/16-18
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

14

Gravely 05957200

Bolt, 5/16-18 x 2 Grade 5
(Superseded to 05901805)

$1.49

$

In Stock, Qty 14

0

15

Gravely 05946900

Bolt, 5/16-18 x 1 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 11

0

16

Gravely 06700002

Pin, Hair
(Superseded to 06700219)

$2.99

$

In Stock, Qty 11

0

17

Gravely M88183

Ring, Retaining

$

$

Not available
