895802 - Parker 36" Trailing Lawn Sweeper, Hard Bottom (SN: 000101 - 000179) Sweeper Unit Assembly Parts Diagram

36" Trailing Lawn Sweeper, Hard Bottom

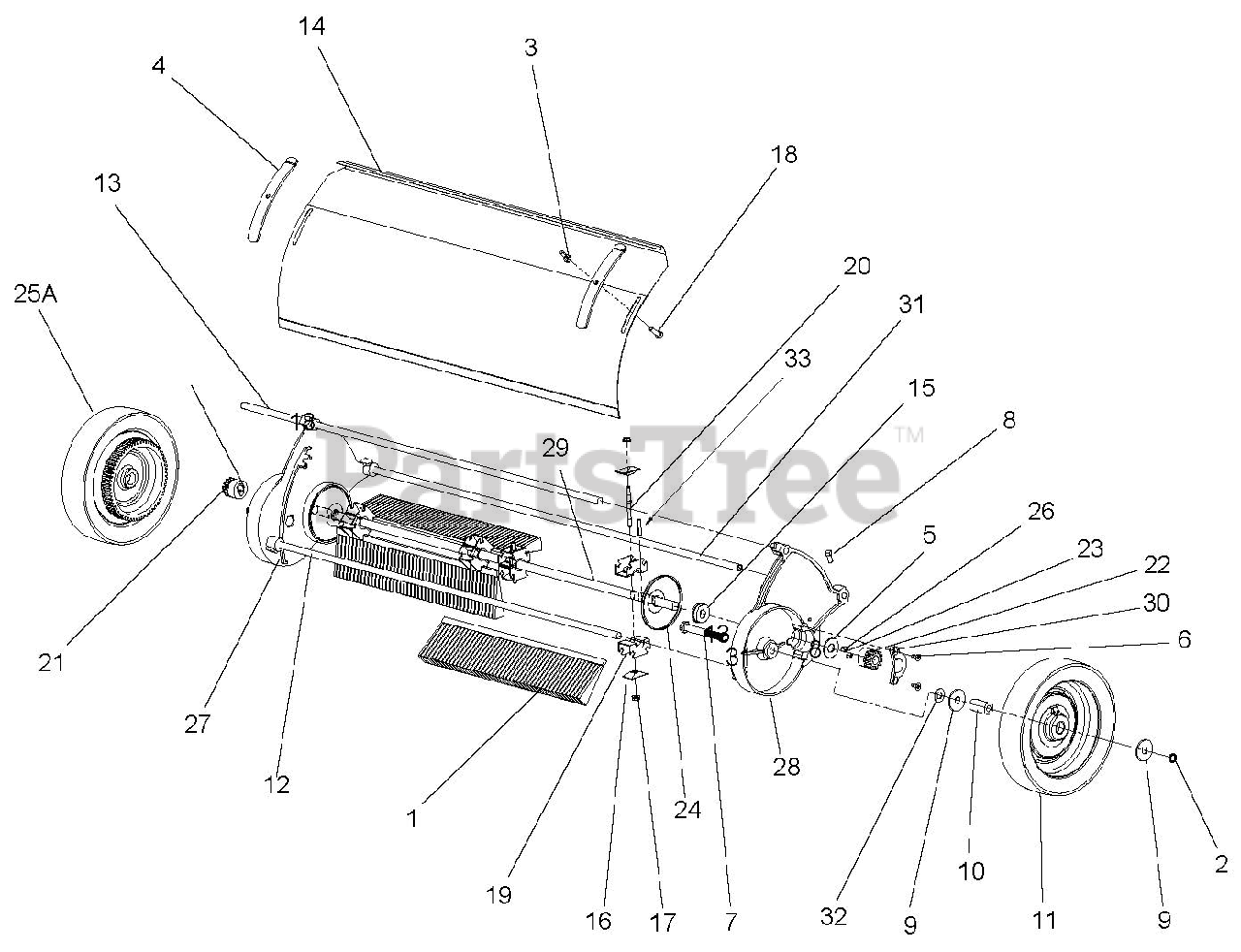

Sweeper Unit Assembly Parts Diagram

  • Title

1

P1200-17-B

Brush Assembly

$

$

Not available

1A

Gravely PBK-11

Brush Kit

Note: (includes mounting hardware)

$

$

Not available

2

Gravely 06530200

Nut, 1/2-20 Hex Nyloc
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

3

Gravely P711366

Nut, 5/16-18 Wing

$

$

Not available

4

Gravely P49-11-A

Clamp, Hood

$23.99

$

Usually ships in 4-12 days

0

5

Gravely P50-33-A

Washer, .656 x 1.50 x .06 Flat

$3.63

$

Usually ships in 4-12 days

0

6

Gravely P506-416-10

Screw, 1/4-20 x 5/8 Flat Head

$

$

Not available

7

Gravely P53-35-A

Bolt, Axle

$11.99

$

Usually ships in 4-12 days

0

8

Gravely P560C516-10

Set Screw, Square Head

$

$

Not available

9

Gravely P58-05-A

Washer, 5.16 x 1.625 x .075 Flat
(Superseded to 06401012)

$3.49

$

In Stock, Qty 16

0

10

Gravely P58-06-A

Sleeve

$45.99

$

Usually ships in 4-12 days

0

11

Gravely P58-14PTD

Wheel Hub

$

$

Not available

12

P68-33A

Tie Rod, Zinc Plated

$

$

Not available

13

P68-34A

Tie Rod

$

$

Not available

14

Gravely P68-58D

Hood, Parker Burgundy

$

$

Not available

15

Gravely P68-60-A

Bearing, .625 x .150 Flange Radial

$

$

Not available

16

Gravely P69-04-A

Clamp, Brush Strip

$6.49

$

Usually ships in 4-12 days

0

17

Gravely P711425

Nut, 1/4-20 Flanged

$

$

Not available

18

Gravely 05946900

Bolt, 5/16-18 x 1 Hex 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 8

0

19

Gravely P74-13-C

Bracket

$20.99

$

Usually ships in 4-12 days

0

20

Gravely P74-16PLT

Stud, Plated Zinc

$34.99

$

Usually ships in 4-12 days

0

21

Gravely P74-78-RB

Pinion, Right

$6.99

$

In Stock, only 2 left!

0

22

Gravely P74-79-LB

Pinion, Left

$

$

Not available

22A

Gravely PSA-1580-B

Pinion Kit

Note: (includes items 21, 22, 23 & 26)

$

$

Not available

23

Gravely P74-80-A

Dowel Pin, .1875" OD x .4375"

$5.99

$

Usually ships in 4-12 days

0

24

Gravely P74-166-B

Dust Cover, Zinc Plated

$

$

Not available

25

Gravely P75-88-C

Tire Only

$36.99

$

Usually ships in 4-12 days

0

25A

Gravely PSA-609-C

Tire Assembly

Note: (includes items 11 & 25)

$

$

Not available

26

Gravely P76-37-A

Pawl Spring

$12.99

$

Usually ships in 4-12 days

0

27

Gravely P76-338-RF

Side Plate, Right

$

$

Not available

28

Gravely P76-339-LF

Side Plate, Left

$

$

Not available

29

Gravely 04229100

Shaft, Reel

$

$

Not available

30

Gravely P80-01-B

Casting, Cover Pinion

$

$

Not available

31

Gravely P80-141PLT

Adjust Tube, 1/2 x .065 Zinc Plated

$28.99

$

Usually ships in 4-12 days

0

32

Gravely P50-33-A

Washer, .656 x 1.50 x .06 Fiber

$3.63

$

Usually ships in 4-12 days

0

33

Gravely P67-521-A

Pin, Roll 3/16-1.0

$

$

Not available
