895802 - Parker 36" Trailing Lawn Sweeper, Hard Bottom (SN: 000180 - 000999) Hitch Assembly Parts Diagram

36" Trailing Lawn Sweeper, Hard Bottom

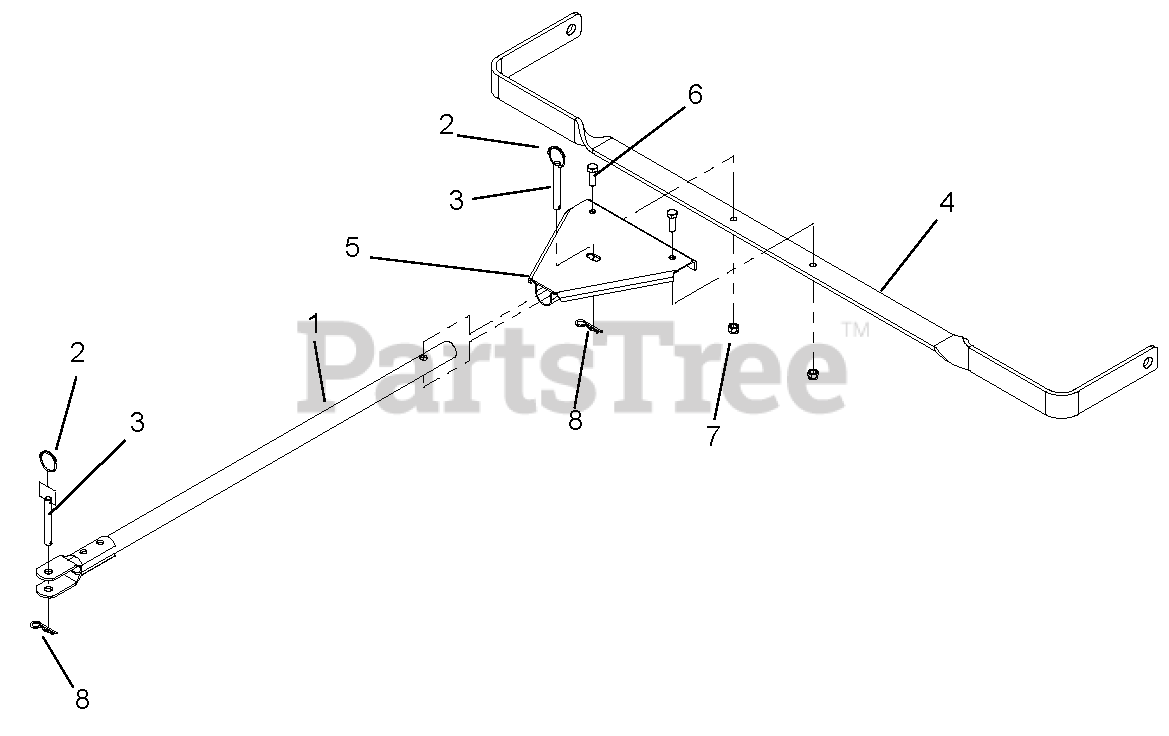

Hitch Assembly Parts Diagram

  • Title
1

Gravely P75-32-B

Tongue Weldment

$

$

Not available

2

Gravely M88183

Ring, Locking

$

$

Not available

3

Gravely 04197800

Pin, Hitch

$12.24

$

Usually ships in 4-12 days

0

$

$

Not available

5

Gravely P75-40-B

Hitch Plate Weldment

$

$

Not available

6

Gravely 05946900

Bolt, Hex .31-18 x 1.00 Gr 5 YWZC

$1.96

$

In Stock, Qty 20+

0

7

Gravely 06530200

Nut, Nylok .312-18 YWZC

$

$

Not available

8

Gravely 06700002

Pin, Cotter .09 x 1.50 YWZC

$

$

Not available
