895803 - Parker Suburbanite 36" Trailing Lawn Sweeper, Mesh Bottom (SN: 000101 - 000199) Basket Assembly Parts Diagram

Suburbanite 36" Trailing Lawn Sweeper, Mesh Bottom

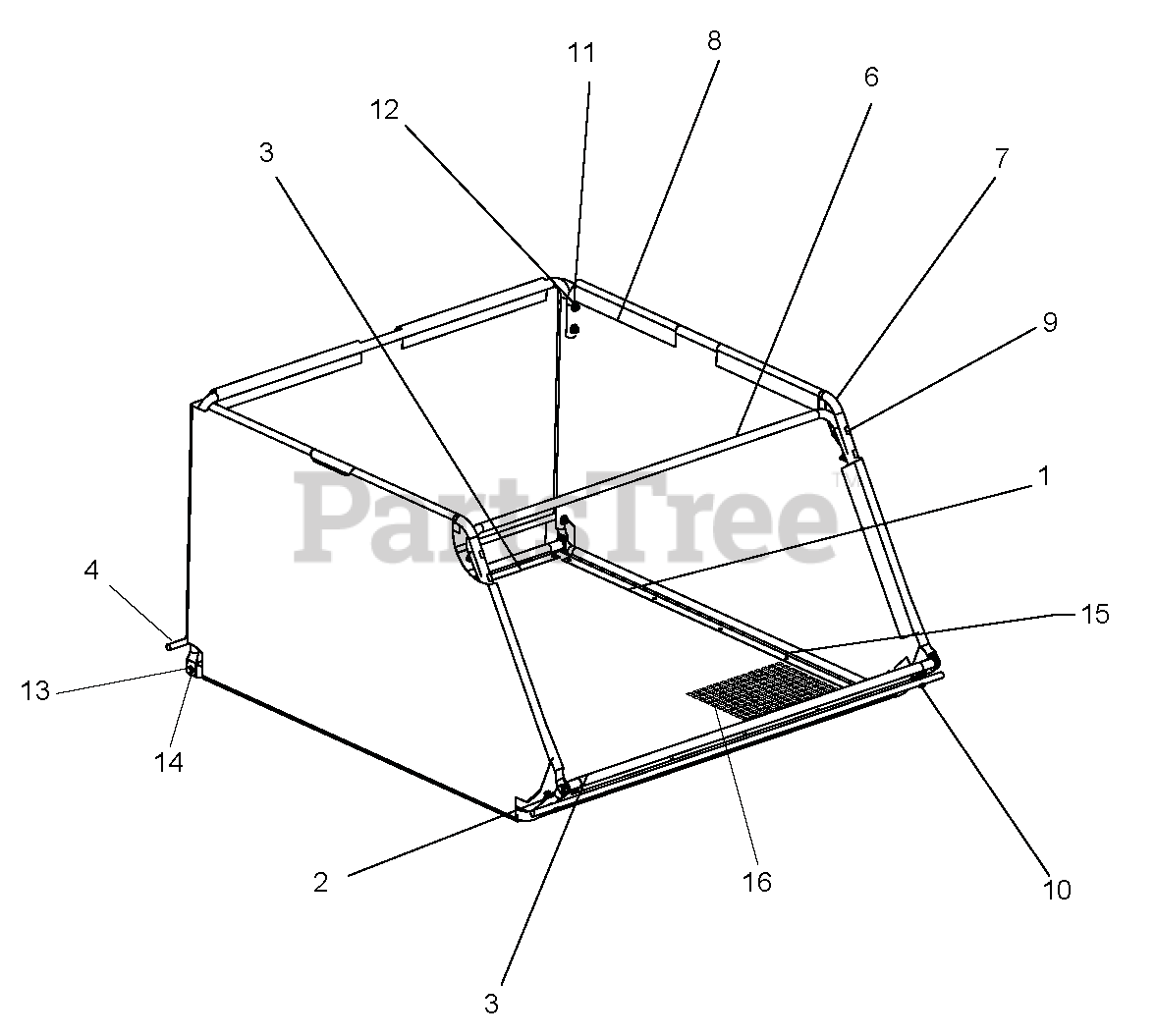

Basket Assembly Parts Diagram

  • Title

1

Gravely PSA-1590-C

SWP-BASKET CLAMP ASSY.

$

$

Not available

1

Gravely PSA-1590-C

SWP-BASKET CLAMP ASSY.

$

$

Not available

2

Gravely PSA-1591-C

SWP-BASKET CLAMP ASSY.

$

$

Not available

2

Gravely PSA-1591-C

SWP-BASKET CLAMP ASSY.

$

$

Not available

3

Gravely PSA-1427-B

SWP-BOTTOM BASKET CLAMP ASY

$

$

Not available

3

Gravely PSA-1427-B

SWP-BOTTOM BASKET CLAMP ASY

$

$

Not available

4

Gravely P86-105-B

SUPPORT ROD

$

$

Not available

4

Gravely P86-105-B

SUPPORT ROD

$

$

Not available

5

Gravely P82-86-B

REAR UPRIGHT

$

$

Not available

5

Gravely P82-86-B

REAR UPRIGHT

$

$

Not available

6

Gravely P82-87-B

FRONT BSKT. BRACE

$

$

Not available

6

Gravely P82-87-B

FRONT BSKT. BRACE

$

$

Not available

7

Gravely P80-137-B

FRAME BASKET SIDE TOP

$

$

Not available

7

Gravely P80-137-B

FRAME BASKET SIDE TOP

$

$

Not available

8

Gravely P89-65-D

BASKET, SEWING

$

$

Not available

8

Gravely P89-65-D

BASKET, SEWING

$

$

Not available

9

Gravely P69-416-32

BLT-CONT HEAD 1/4-20 X 2.00

$6.99

$

Usually ships in 4-12 days

0

9

Gravely P69-416-32

BLT-CONT HEAD 1/4-20 X 2.00

$6.99

$

Usually ships in 4-12 days

0

10

Gravely 00960004

BOLT, 1/4-20X1.50 HEX 5 Y

$

$

Not available

10

Gravely 00960004

BOLT, 1/4-20X1.50 HEX 5 Y

$

$

Not available

11

Gravely AA960700

WASHER, .250 REG FLAT Y
(Superseded to 06435800)

$1.49

$

In Stock, Qty 20+

0

11

Gravely AA960700

WASHER, .250 REG FLAT Y
(Superseded to 06435800)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 00964048

LOCKNUT, 1/4-20 NYLOC Y

$

$

Not available

12

Gravely 00964048

LOCKNUT, 1/4-20 NYLOC Y

$

$

Not available

13

Gravely AA960601

WASHER, .313 MED SPRG LOCK Y
(Superseded to 06308600)

$1.49

$

In Stock, Qty 20+

0

13

Gravely AA960601

WASHER, .313 MED SPRG LOCK Y
(Superseded to 06308600)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 00960023

BOLT, 5/16-18X1.00 HEX 5 Y

$

$

Not available

14

Gravely 00960023

BOLT, 5/16-18X1.00 HEX 5 Y

$

$

Not available

15

Gravely P92-28

BULB TITE RIVET (1PLZ7)

$

$

Not available

15

Gravely P92-28

BULB TITE RIVET (1PLZ7)

$

$

Not available

16

Gravely P360900

SCREEN MESH 46.313X39.125X.063

$

$

Not available

16

Gravely P360900

SCREEN MESH 46.313X39.125X.063

$

$

Not available

17

Gravely PSA-1556-D

WIND APRON ASSY.-SUBURBANITE

Note: (Not Shown)

$

$

Not available

17

Gravely PSA-1556-D

WIND APRON ASSY.-SUBURBANITE

Note: (Not Shown)

$

$

Not available
