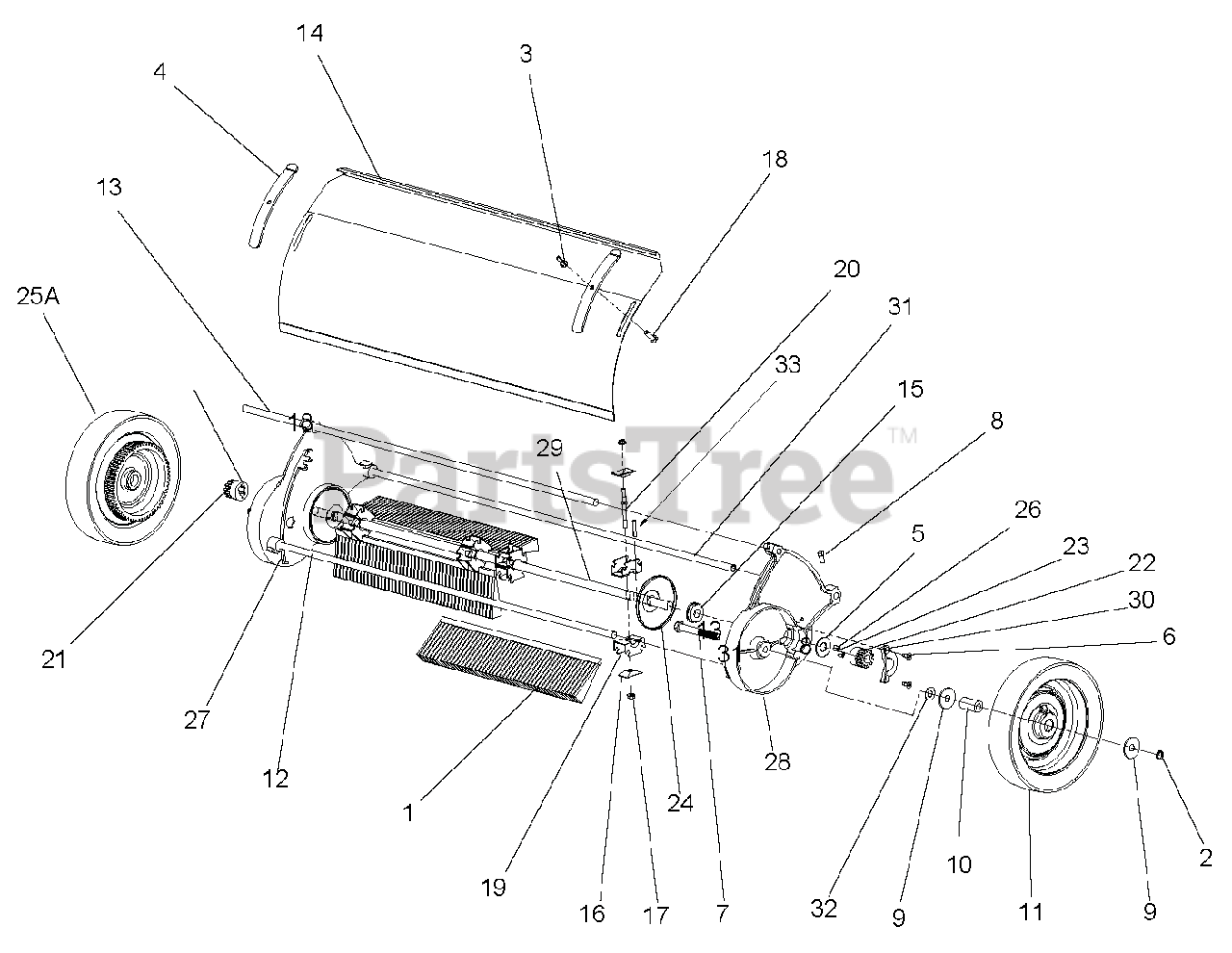

895803 - Parker Suburbanite 36" Trailing Lawn Sweeper, Mesh Bottom (SN: 000101 - 000199) Sweeper Unit Assembly Parts Diagram

Suburbanite 36" Trailing Lawn Sweeper, Mesh Bottom

Sweeper Unit Assembly Parts Diagram

  • Title

1

Gravely P-1200-17-B

SWP-SWEEPER-BRUSH

$

$

Not available

1

Gravely P-1200-17-B

SWP-SWEEPER-BRUSH

$

$

Not available

1A

Gravely PBK-11

KIT-BRUSH TE & SU

Note: (includes mounting hardware)

$

$

Not available

1A

Gravely PBK-11

KIT-BRUSH TE & SU

Note: (includes mounting hardware)

$

$

Not available

2

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

2

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

3

Gravely P711366

NUT-WING 5/16-18 ST PL (08WNCZ

$

$

Not available

3

Gravely P711366

NUT-WING 5/16-18 ST PL (08WNCZ

$

$

Not available

4

Gravely P49-11-A

SWP-HOOD CLAMP TE SU

$23.99

$

Usually ships in 4-12 days

0

4

Gravely P49-11-A

SWP-HOOD CLAMP TE SU

$23.99

$

Usually ships in 4-12 days

0

5

Gravely P50-33-A

WSR-FLT .656 X 1.50 X .06

$3.99

$

Usually ships in 4-12 days

0

5

Gravely P50-33-A

WSR-FLT .656 X 1.50 X .06

$3.99

$

Usually ships in 4-12 days

0

6

Gravely P506-416-10

SCR-FL HD 1/4-20 X 5/8

$

$

Not available

6

Gravely P506-416-10

SCR-FL HD 1/4-20 X 5/8

$

$

Not available

7

Gravely P53-35-A

HHCS 1/2-20 X 4 FULL THREAD

$13.99

$

Usually ships in 4-12 days

0

7

Gravely P53-35-A

HHCS 1/2-20 X 4 FULL THREAD

$13.99

$

Usually ships in 4-12 days

0

8

Gravely P560C516-10

SWP-SQUARE HEAD SET SCREW (10S

$

$

Not available

8

Gravely P560C516-10

SWP-SQUARE HEAD SET SCREW (10S

$

$

Not available

9

Gravely P58-05-A

WSR-FLT .516 X 1.625 X .075
(Superseded to 06401012)

$2.99

$

In Stock, Qty 20+

0

9

Gravely P58-05-A

WSR-FLT .516 X 1.625 X .075
(Superseded to 06401012)

$2.99

$

In Stock, Qty 20+

0

10

Gravely P58-06-A

SLEEVE

$46.99

$

Usually ships in 4-12 days

0

10

Gravely P58-06-A

SLEEVE

$46.99

$

Usually ships in 4-12 days

0

11

Gravely P58-14PTD

SWP-WHEEL HUB

$

$

Not available

11

Gravely P58-14PTD

SWP-WHEEL HUB

$

$

Not available

12

Gravely P68-33-A

Tie Rod, Zinc Plated

$

$

Not available

12

Gravely P68-33-A

Tie Rod, Zinc Plated

$

$

Not available

13

Gravely P68-34-A

Tie Rod

$

$

Not available

13

Gravely P68-34-A

Tie Rod

$

$

Not available

14

Gravely P68-58D

Hood, Parker Burgundy

$

$

Not available

14

Gravely P68-58D

Hood, Parker Burgundy

$

$

Not available

15

Gravely P68-60-A

BEARING-FLG RADIAL (ASF 107-1E

$

$

Not available

15

Gravely P68-60-A

BEARING-FLG RADIAL (ASF 107-1E

$

$

Not available

16

Gravely P69-04-A

SWP-CLAMP BRUSH STRIP

$6.99

$

Usually ships in 4-12 days

0

16

Gravely P69-04-A

SWP-CLAMP BRUSH STRIP

$6.99

$

Usually ships in 4-12 days

0

17

Gravely P711425

NUT-FLANGED WIZZ 1/4-20 STL ZP

$

$

Not available

17

Gravely P711425

NUT-FLANGED WIZZ 1/4-20 STL ZP

$

$

Not available

18

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

18

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

19

Gravely P74-13-C

SWP-BRKT

$21.99

$

Usually ships in 4-12 days

0

19

Gravely P74-13-C

SWP-BRKT

$21.99

$

Usually ships in 4-12 days

0

20

Gravely P74-16-PLT

PLATED STUD ZINC

$

$

Not available

20

Gravely P74-16-PLT

PLATED STUD ZINC

$

$

Not available

21

Gravely P74-78-RB

PINION RIGHT

$7.49

$

Usually ships in 4-12 days

0

21

Gravely P74-78-RB

PINION RIGHT

$7.49

$

Usually ships in 4-12 days

0

22

Gravely P74-79-LB

PINION LEFT

$

$

Not available

22

Gravely P74-79-LB

PINION LEFT

$

$

Not available

22A

Gravely PSA-1580-B

PINION KIT INCL.

Note: (includes items 21, 22, 23 & 26)

$

$

Not available

22A

Gravely PSA-1580-B

PINION KIT INCL.

Note: (includes items 21, 22, 23 & 27)

$

$

Not available

23

Gravely P74-80-A

DOWEL PIN - .1875" OD X .4375"

$6.49

$

Usually ships in 4-12 days

0

23

Gravely P74-80-A

DOWEL PIN - .1875" OD X .4375"

$6.49

$

Usually ships in 4-12 days

0

24

Gravely P74-166-B

SWP-DUST COVER

$

$

Not available

24

Gravely P74-166-B

SWP-DUST COVER

$

$

Not available

25

Gravely P75-88-C

TIRE ONLY

$

$

Not available

25

Gravely P75-88-C

TIRE ONLY

$

$

Not available

25A

Gravely PSA-609-C

SWP-TIRE ASY INCL 12 & 13

Note: (includes items 11 & 25)

$

$

Not available

25A

Gravely PSA-609-C

SWP-TIRE ASY INCL 12 & 13

Note: (includes items 1 & 25)

$

$

Not available

26

Gravely P76-37-A

PAWL SPRING .188X.049 WX.438

$13.99

$

Usually ships in 4-12 days

0

26

Gravely P76-37-A

PAWL SPRING .188X.049 WX.438

$13.99

$

Usually ships in 4-12 days

0

27

Gravely P76-338-RF

SIDE PLATE RH

$

$

Not available

27

Gravely P76-338-RF

SIDE PLATE RH

$

$

Not available

28

Gravely P76-339-LF

SIDE PLATE LH

$

$

Not available

28

Gravely P76-339-LF

SIDE PLATE LH

$

$

Not available

29

Gravely P79-103-B

REEL SHAFT

$

$

Not available

29

Gravely P79-103-B

REEL SHAFT

$

$

Not available

30

Gravely P80-01-B

CASTING-COVER PINION

$

$

Not available

30

Gravely P80-01-B

CASTING-COVER PINION

$

$

Not available

31

Gravely P80-141PLT

SWP-ADJ TUBE PLT 1/2 X .065 X

$29.99

$

Usually ships in 4-12 days

0

31

Gravely P80-141PLT

SWP-ADJ TUBE PLT 1/2 X .065 X

$29.99

$

Usually ships in 4-12 days

0

32

Gravely P50-33-A

WSR-FLT .656 X 1.50 X .06

$3.99

$

Usually ships in 4-12 days

0

32

Gravely P50-33-A

WSR-FLT .656 X 1.50 X .06

$3.99

$

Usually ships in 4-12 days

0

33

Gravely P67-521-A

PIN-ROLL 3/16 x 1.0

$

$

Not available

33

Gravely P67-521-A

PIN-ROLL 3/16 x 1.0

$

$

Not available
