895804 - Parker Trailette Sweeper (SN: 000101 & Above) Frame Assembly Parts Diagram

Trailette Sweeper

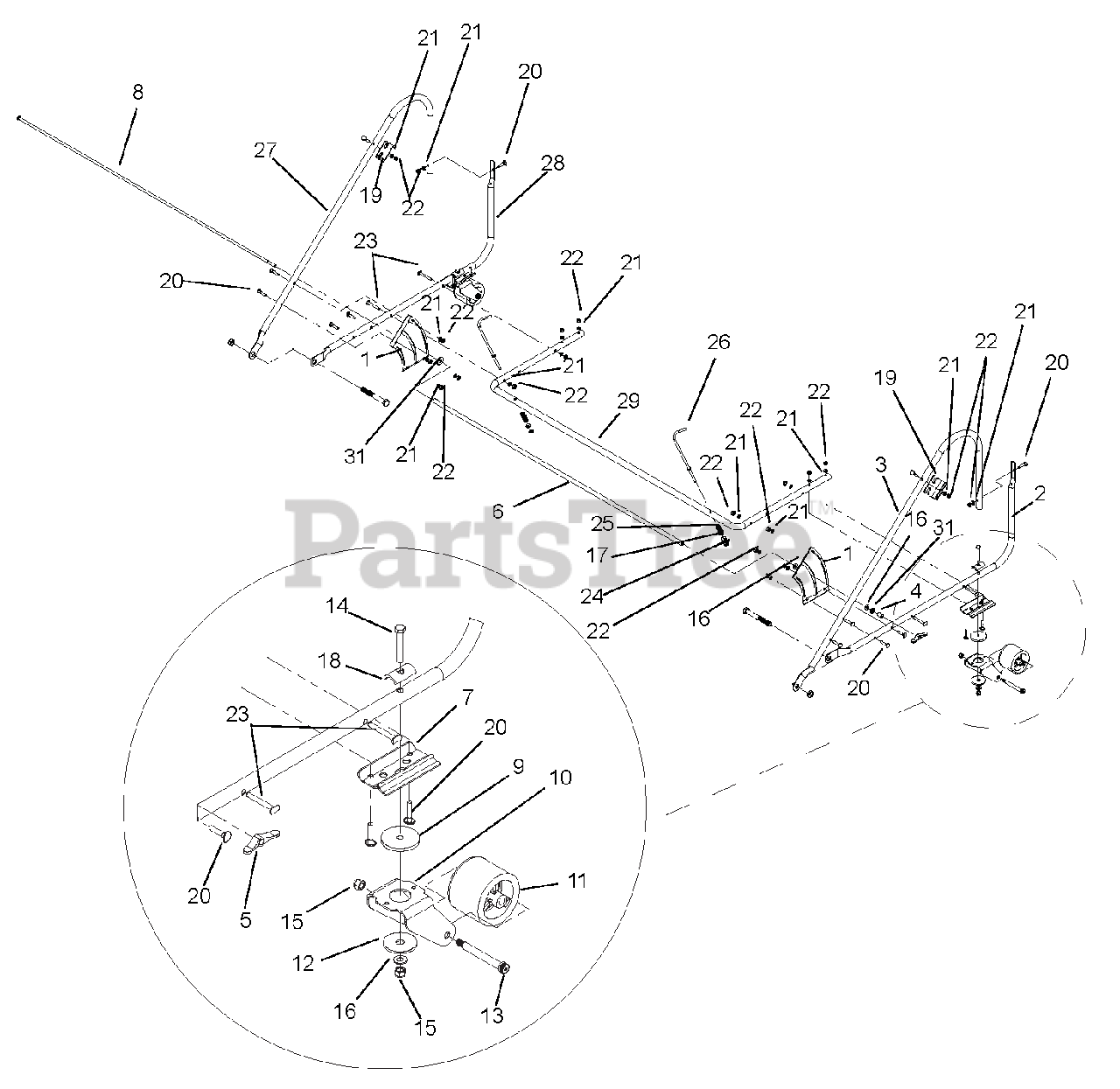

Frame Assembly Parts Diagram

  • Title

1

Gravely P76-342-C

SWP-PLATE ADJ TE

$

$

Not available

2

Gravely 04440051

FRAME, SUPPORT - LOWER

$

$

Not available

3

Gravely 04439651

FRAME, SUPPORT - UPPER TE

$

$

Not available

4

Gravely P55-160-A

SPCR, .625 OD X .625 L

$

$

Not available

5

Gravely P73-71-A

WING NUT

$

$

Not available

6

Gravely P76-341-A

SWP-ROD PIVOT 43 1/8"TRAILETTE

$

$

Not available

7

Gravely P76-81-B

SWP-PLATE CASTER

$10.99

$

Usually ships in 4-12 days

0

8

Gravely P69-111-A

SWP-BOLT ADJ 44 5/8" TRAILETTE

$

$

Not available

9

Gravely P78-130-A

BEARING

$

$

Not available

10

Gravely P76-136-B

CASTER FORK

$

$

Not available

11

Gravely P76-58-A

ROLLER

$

$

Not available

12

Gravely P82-138-B-3

WSR-AREA VAC 35 29/64X13/4X134

$7.99

$

Usually ships in 4-12 days

0

13

Gravely 07070115

BLT-SHLDR .38X2.75X.31-18

$11.99

$

Usually ships in 4-12 days

0

14

Gravely 05957200

BLT-HEX .31-18X2.00 GR5 YWZC
(Superseded to 05901805)

$1.99

$

In Stock, Qty 18

0

15

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

16

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

18

Gravely P59-77-A

CLAMP

$40.99

$

Usually ships in 4-12 days

0

19

Gravely P76-240-A

SWP-BRKT-PIVOT

$11.99

$

Usually ships in 4-12 days

0

20

Gravely P69-416-20

BLT-CONT HEAD 1/4-20 X 1.25

$3.99

$

Usually ships in 4-12 days

0

21

Gravely 06308400

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 7

0

22

Gravely 06533200

NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 10

0

23

Gravely P69-416-32

BLT-CONT HEAD 1/4-20 X 2.00

$6.99

$

Usually ships in 4-12 days

0

24

Gravely P75-89-A

NUT-SPEED 1/4 (03-30072)

$5.49

$

In Stock, only 2 left!

0

25

Gravely P76-271-A

SPRING-COMP

$3.99

$

Usually ships in 4-12 days

0

26

Gravely P76-255-A

SWP-BASKET STOP WLDT

$39.99

$

Usually ships in 4-12 days

0

27

Gravely 04439851

FRAME, SUPPORT - UPPER TE

$68.99

$

Usually ships in 4-12 days

0

28

Gravely 04439951

FRAME, SUPPORT - LOWER

$

$

Not available

29

Gravely P76-272-B

SWP-FRAME SUPPORT CUT 74 3/8"

$

$

Not available

30

Gravely 06319000

WSHR-LK .38 INT STAR YWZC

$

$

Not available

31

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0
