896001 (SP-3000) - Gravely SnowEx Spreader (SN: 000101 & Above) Frame Assembly Parts Diagram

SnowEx Spreader

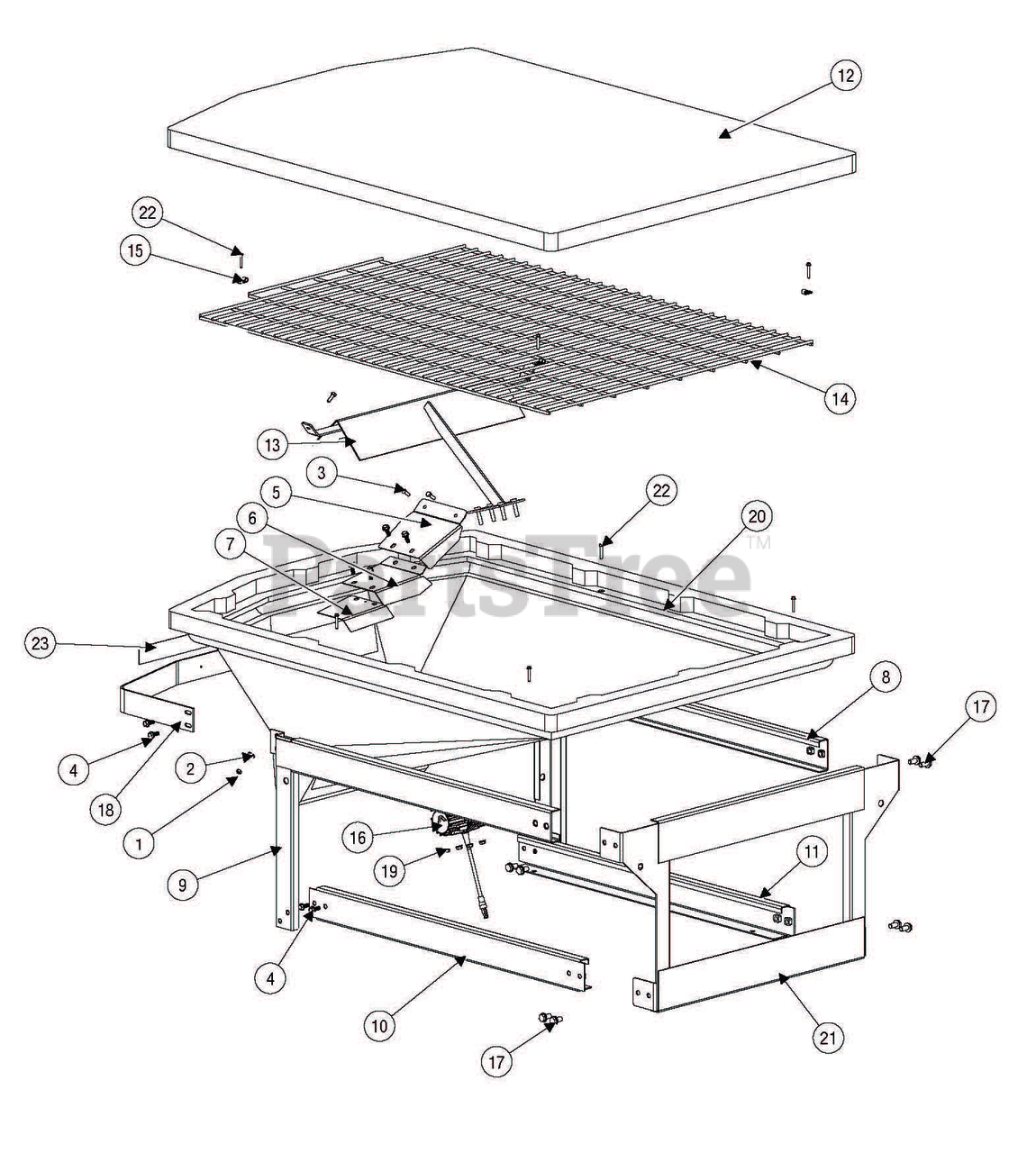

Frame Assembly Parts Diagram

  • Title

1

Gravely 21901624

NUT

$

$

Not available

2

Gravely 21901628

WASHER

$

$

Not available

3

Gravely 21901629

BOLT

$

$

Not available

4

Gravely 21901637

BOLT

$

$

Not available

5

Gravely 21901640

MAIN BAFFLE

$

$

Not available

6

Gravely 21901641

SECONDARY BAFFLE

$

$

Not available

7

Gravely 21901642

THIRD BAFFLE

$

$

Not available

8

Gravely 21901643

FRAME WELDMENT, RIGHT 46-3/4 X 22-3/8

$

$

Not available

9

Gravely 21901644

FRAME WELDMENT, LEFT, 46-3/4 X 22-3/8

$

$

Not available

10

Gravely 21901645

LOWER RAIL, RIGHT 44-3/8 X 3-3/4

$

$

Not available

11

Gravely 21901646

LOWER RAIL, LEFT 44-3/8 X 3-3/4

$

$

Not available

12

Gravely 21901647

TARP KIT, SP-3000

$

$

Not available

13

Gravely 21901649

INVERTED V PRO

$

$

Not available

14

Gravely 21901650

TOP SCREEN 59 X 42

$

$

Not available

15

Gravely 21901651

CLAMP, 5/16 RUBBER COATED

$

$

Not available

16

Gravely 21901653

VIBRATOR, DC 200

$

$

Not available

17

Gravely 21901658

BOLT

$

$

Not available

18

Gravely 21901659

HOPPER APRON PRO TRUCK

$

$

Not available

19

Gravely 21901676

NUT

$

$

Not available

20

Gravely 21901677

HOPPER 13.5 CU. FT. YELLOW

$

$

Not available

21

Gravely 21901682

FRONT FRAME WELDMENT PRO TRUCK

$

$

Not available

22

Gravely 21901684

SCREW

$

$

Not available

23

Gravely 21901685

CONSPICUITY TAPE

$

$

Not available
