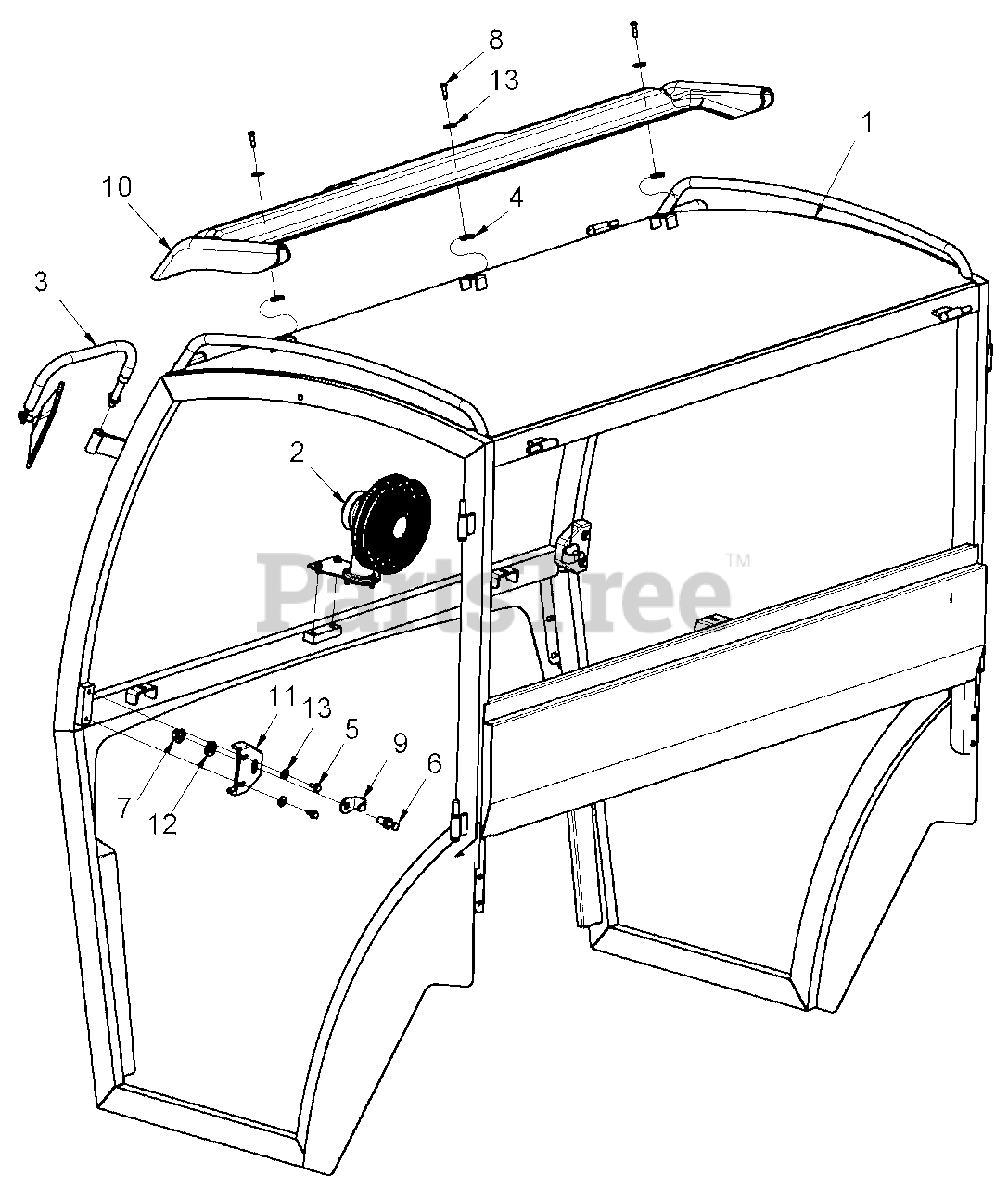

896171 - Gravely ST Series Hard Cab (SN: 000101 & Above) Cab Frame and Accessories Parts Diagram

ST Series Hard Cab

Cab Frame and Accessories Parts Diagram

  • Title

1

Gravely 89617100

Cab, Steel Truck Hard

$

$

Not available

2

Gravely 79617300

Fan, Cab

$

$

Not available

3

Gravely 79617400

Mirror Kit, Cab

$

$

Not available

4

Gravely 07009000

Nut, Retainer .25-20 x .56

$1.49

$

In Stock, Qty 20+

0

5

Gravely 07049300

Bolt, Serrated Hex Flange Washer Head .25-20 x .5

$2.49

$

Usually ships in 4-12 days

0

6

JDP100013

Pin, Striker

$

$

Not available

7

Gravely JDP100014

Nut, Striker Pin

$

$

Not available

8

Gravely JDP100442

Screw, BH 1/4 x 1 1/4 Black

$

$

Not available

9

JDP101646

Guard, Striker Pin

$

$

Not available

10

JDP101710

Fascia, Roof

$

$

Not available

11

JDP101711

Plate, Striker Mounting

$

$

Not available

12

n/a

Washer, Striker Pin

$

$

Not available

13

Gravely 06437300

Washer, Flat Steel .281 x .62 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0
