896171 - Gravely ST Series Hard Cab (SN: 000101 & Above)

ST Series Hard Cab

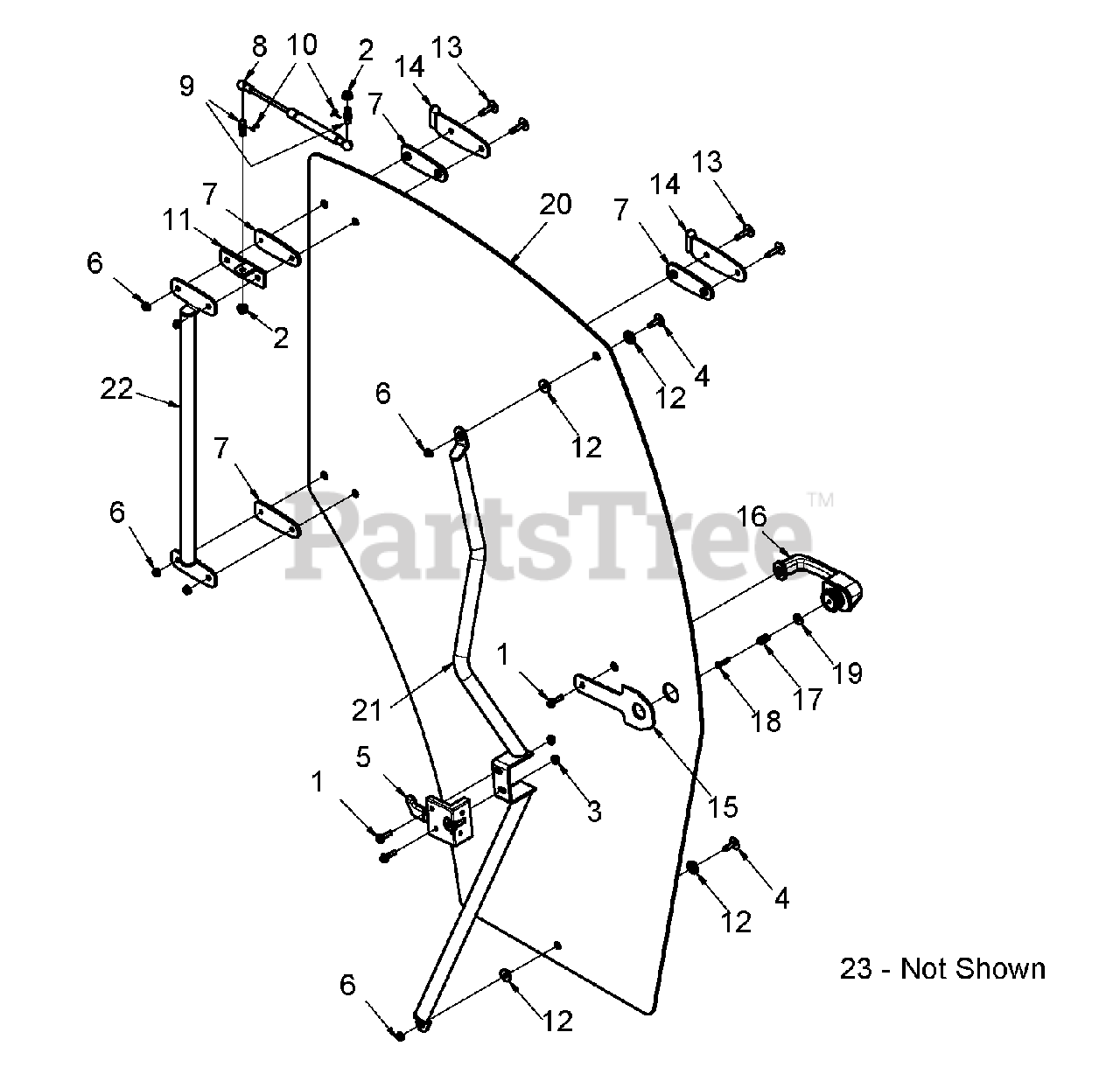

896171 - Gravely ST Series Hard Cab (SN: 000101 & Above) > Parts Diagrams (6) > Door

  • Title
05972000

1

Bolt, Hex M6-1.0 x 25

Part# 05972000

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

06545400

2

Nut, .31-18 Nyloc Flange

Part# 06545400

OEM Warranty Repair Part for Gravely

Not available

06500026

3

Flange Nut, M6 x 1.0

Part# 06500026 (Superseded to 06500729)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $2.18

JDP100003

4

Bolt, Step 1/4 x 1 Black

Part# JDP100003

Not available

JDP100006

5

Latch, Left Door

Part# JDP100006

Not available

JDP100223

6

Nut, Flange 1/4 Black

Part# JDP100223

Not available

JDP100362

7

Neoprene, Injection Mold, 5MM, Black

Part# JDP100362

Not available

JDP100365

8

Shock, Gas

Part# JDP100365

Not available

JDP100366

9

Stud, Gas Shock Ball

Part# JDP100366

Not available

JDP100367

10

Clip, Gas Shock

Part# JDP100367

Not available

JDP100368

11

Plate, LH Gas Shock Mount

Part# JDP100368

Not available

JDP100373

Plate, RH Gas Shock Mount

Part# JDP100373

Not available

JDP100382

12

Bushing, 5MM Black Neoprene

Part# JDP100382

Not available

JDP100635

13

Bolt, Step 1/4 X 1 1/2 Black

Part# JDP100635

Not available

JDP101148

14

Weldment, Door Hinge (Left Door)

Part# JDP101148

Note: (Left Door)

Not available

JDP100633

Weldment, Door Hinge (Right Door)

Part# JDP100633

Note: (Right Door)

Not available

JDP101397

15

Bushing, Door Handle

Part# JDP101397

Not available

JDP101445

16

Handle, Door Push-Button

Part# JDP101445

Not available

JDP101476

17

Nut, Coupler 10-32X1 1/4

Part# JDP101476

Not available

JDP101477

18

Screw, Machine 10-32X1 1/4

Part# JDP101477

Not available

JDP101478

19

Washer, Flat - 3/16

Part# JDP101478

Not available

JDP101693

20

Glass, Cab Door

Part# JDP101693

Not available

JDP101699

21

Weldment, Door Latch Support (Left Door)

Part# JDP101699

Note: (Left Door)

Not available

JDP101701

Weldment, Door Latch Support (Right Door)

Part# JDP101701

Note: (Right Door)

Not available

JDP101700

22

Weldment, Door Hinge Support

Part# JDP101700

Not available

JDP101696

23

.2’ Weather Strip, Door Glass

Part# JDP101696

Not available
