896171 - Gravely ST Series Hard Cab (SN: 000101 & Above) Door Parts Diagram

ST Series Hard Cab

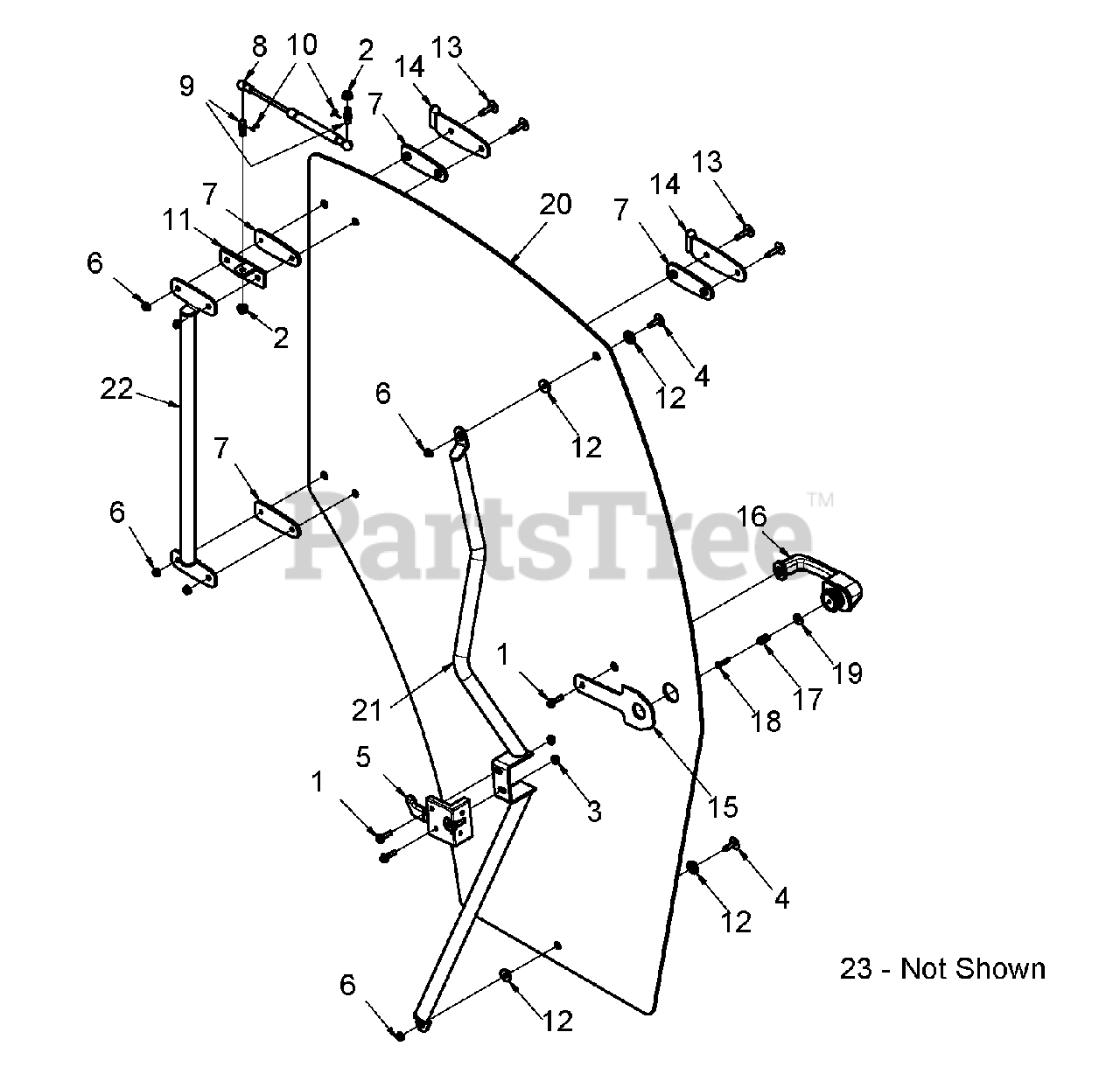

Door Parts Diagram

  • Title

1

Gravely 05972000

BLT-HEX M6-1.0X25 YWZC

$

$

Not available

2

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 06500026

FLANGE NUT, M6 X 1.0
(Superseded to 06500729)

$2.99

$

Usually ships in 4-12 days

0

4

Gravely TJDP100003

BOLT STEP 1/4 X 1 BLACK

$

$

Not available

5

Gravely TJDP100006

LATCH, LEFT DOOR

$

$

Not available

6

Gravely TJDP100223

NUT, FLANGE 1/4 BLACK

$

$

Not available

7

Gravely TJDP100362

NEOPRENE, INJ MOLD, 5MM, BLACK

$

$

Not available

8

Gravely TJDP100365

SHOCK, GAS

$

$

Not available

9

Gravely TJDP100366

STUD, GAS SHOCK BALL

$

$

Not available

10

Gravely TJDP100367

CLIP, GAS SHOCK

$

$

Not available

11

Gravely TJDP100368

PLATE, LH GAS SHOCK MOUNT

$

$

Not available

Gravely TJDP100373

PLATE, RH GAS SHOCK MOUNT

$

$

Not available

12

Gravely TJDP100382

BUSHING, 5MM BLACK NEOPRENE

$

$

Not available

13

Gravely TJDP100635

BOLT, STEP 1/4 X 1 1/2 BLACK

$

$

Not available

14

Gravely TJDP101148

WELDMENT, DOOR HINGE LH

Note: (Left Door)

$

$

Not available

Gravely TJDP100633

WELDMENT, DOOR HINGE RH

Note: (Right Door)

$

$

Not available

15

Gravely TJDP101397

BUSHING, DOOR HANDLE

$

$

Not available

16

Gravely TJDP101445

HANDLE, DOOR PUSH-BUTTON

$

$

Not available

17

Gravely TJDP101476

NUT, COUPLER 10-32X1 1/4

$

$

Not available

18

Gravely TJDP101477

SCREW, MACHINE 10-32X1 1/4

$

$

Not available

19

Gravely TJDP101478

WASHER 3/16

$

$

Not available

20

Gravely TJDP101693

GLASS, CAB DOOR

$

$

Not available

21

Gravely TJDP101699

WELDMNT, DOOR LATCH SUPPORT LH

Note: (Left Door)

$

$

Not available

Gravely TJDP101701

WELDMNT, DOOR LATCH SUPPORT RH

Note: (Right Door)

$

$

Not available

22

Gravely TJDP101700

WELDMENT, DOOR HINGE SUPPORT

$

$

Not available

23

Gravely TJDP101696

WEATHERSTRIP, DOOR GLASS

$

$

Not available
