896171 - Gravely ST Series Hard Cab (SN: 000101 & Above)

ST Series Hard Cab

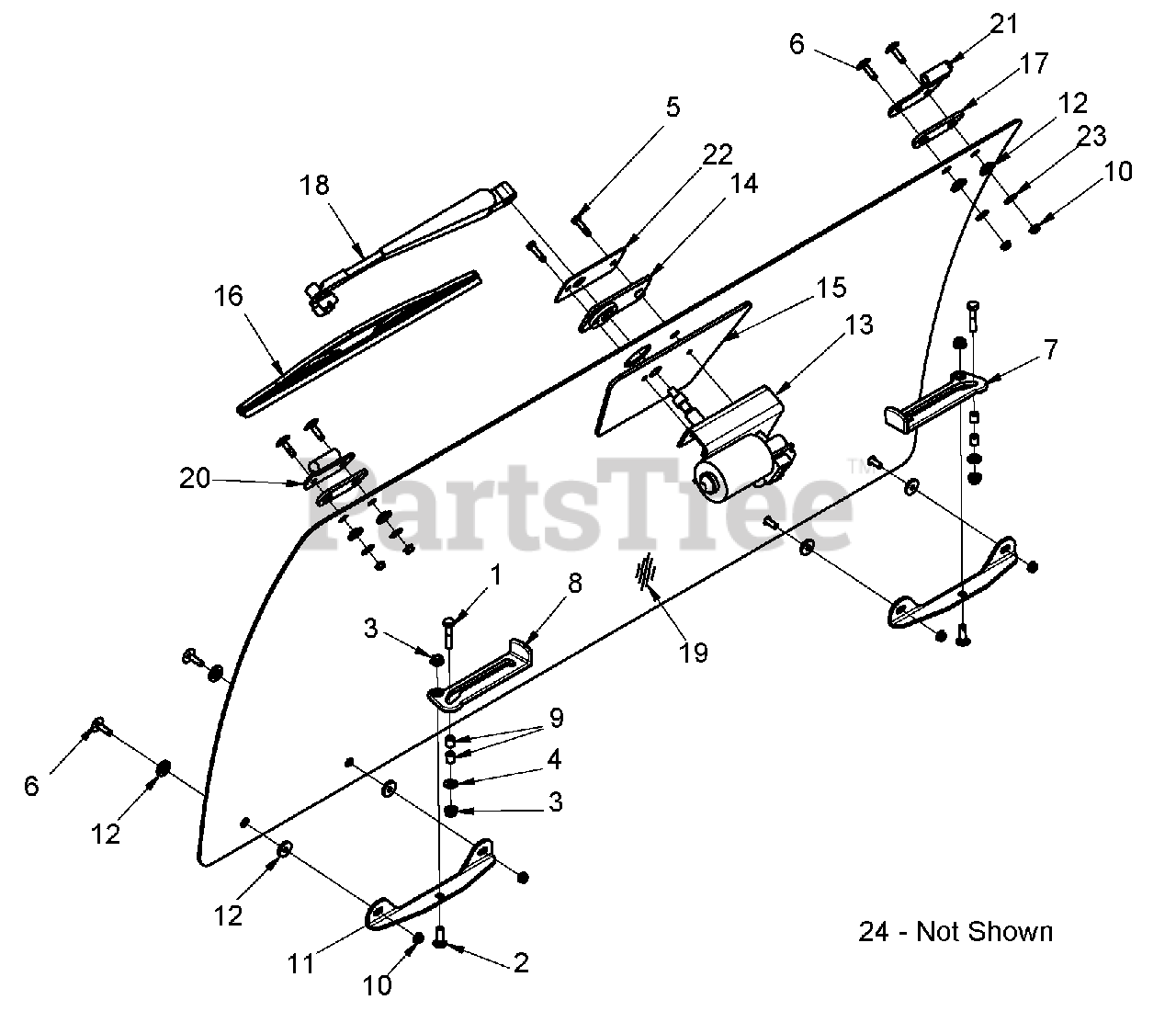

896171 - Gravely ST Series Hard Cab (SN: 000101 & Above) > Parts Diagrams (6) > Front Windshield

  • Title
05952400

1

Bolt, Hex .31-18 x 1.50 Grade 5

Part# 05952400

OEM Warranty Repair Part for Gravely

Not available

06200007

2

Bolt, Round Head Square Neck .31-18 x 1 Grade 5

Part# 06200007

OEM Warranty Repair Part for Gravely

Not available

06545400

3

Nut, .31-18 Nyloc Flange

Part# 06545400

OEM Warranty Repair Part for Gravely

Not available

06400536

4

Washer, Flat 5/16

Part# 06400536

OEM Warranty Repair Part for Gravely

Not available

n/a

5

Bolt, Wiper Motor

Part# n/a

Not available

JDP100003

6

Bolt, Step 1/4 x 1 Black

Part# JDP100003

Not available

JDP100027

7

Handle, Right Window

Part# JDP100027

Not available

JDP100028

8

Handle, Left Window

Part# JDP100028

Not available

JDP100033

9

Bushing, Latch

Part# JDP100033

Not available

JDP100223

10

Nut, Flange 1/4 Black

Part# JDP100223

Not available

JDP100375

11

Plate, Window Latch

Part# JDP100375

Not available

JDP100382

12

Bushing, 5MM Black Neoprene

Part# JDP100382

Not available

JDP100481

13

Motor, Front Wiper

Part# JDP100481

Not available

JDP100636

14

Bushing, Outer Wiper

Part# JDP100636

OEM Warranty Repair Part for Gravely

Not available

JDP100637

15

Bushing, Inner Wiper

Part# JDP100637

OEM Warranty Repair Part for Gravely

Not available

JDP100808

16

Blade, 18" Wiper

Part# JDP100808

Not available

JDP101187

17

Neoprene, Hinge

Part# JDP101187

Not available

JDP101277

18

Arm, 14" Radial Wiper

Part# JDP101277

Not available

JDP101695

19

Glass, Front Window

Part# JDP101695

Not available

JDP101708

20

Assembly, Left Hinge

Part# JDP101708

Not available

JDP101709

21

Assembly, Right Hinge

Part# JDP101709

Not available

n/a

22

Plate, Wiper Mount

Part# n/a

Not available

n/a

23

Flat Washer

Part# n/a

Not available

JDP101698

24

Front Window Weather Stripping

Part# JDP101698

Not available
