896171 - Gravely ST Series Hard Cab (SN: 000101 & Above)

ST Series Hard Cab

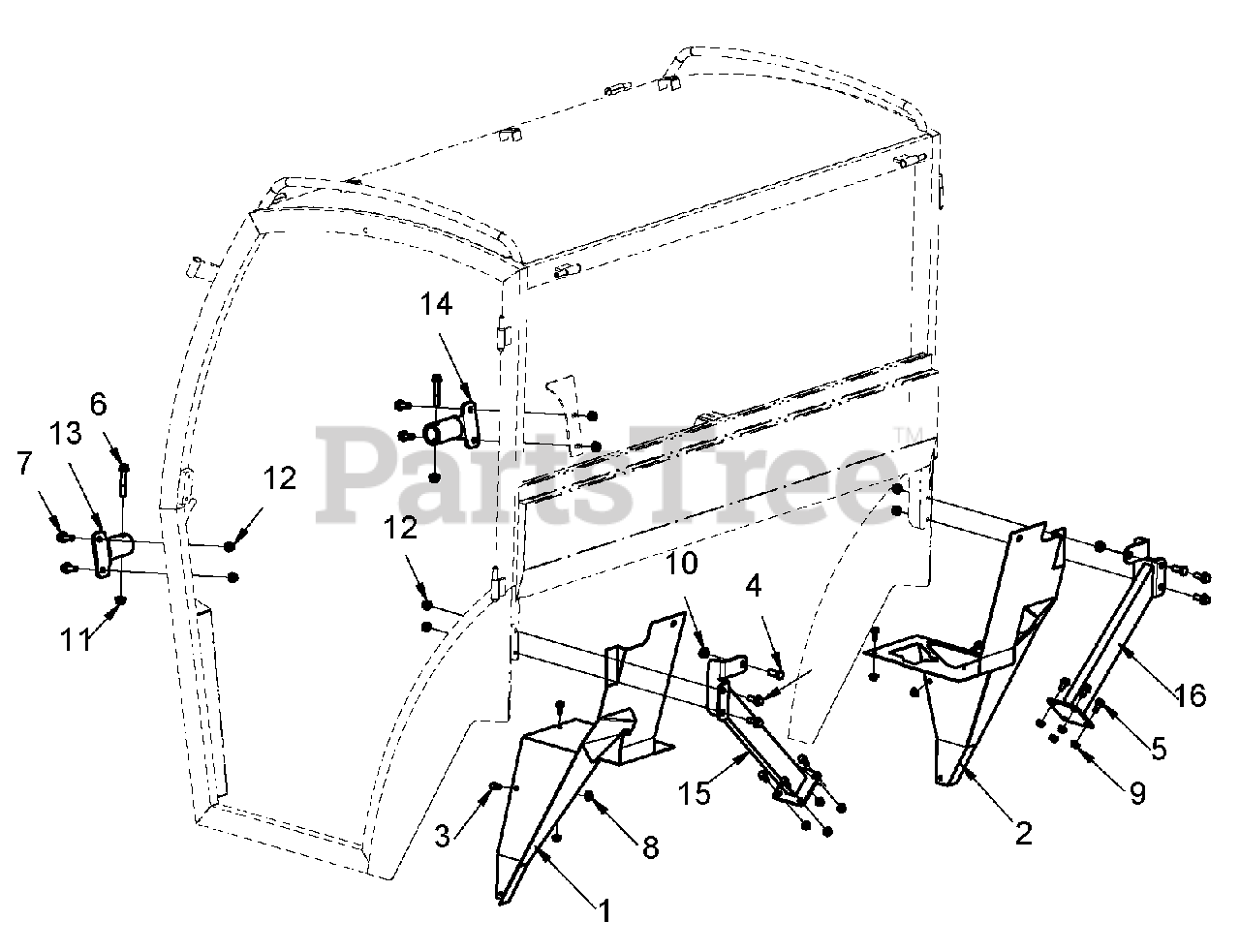

896171 - Gravely ST Series Hard Cab (SN: 000101 & Above) > Parts Diagrams (6) > Mounting Hardware and Seat Shield

  • Title
JDP101868

1

Filler Panel LH

Part# JDP101868

OEM Warranty Repair Part for Gravely

Not available

JDP101747

2

Filler Panel RH

Part# JDP101747

OEM Warranty Repair Part for Gravely

Not available

07049400

3

Bolt, Serrated Hex Flange Washer Head .25-20 x .75

Part# 07049400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $2.18

05958700

4

Bolt, Hex .44-14 x 1.00 Grade 5

Part# 05958700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

07049600

5

Bolt, Serrated Hex Flange Washer Head .312-18 x .75

Part# 07049600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

802-838C

6

HFS M10 x 1.5 x 60 GR10.9

Part# 802-838C

OEM Warranty Repair Part for Gravely

Not available

07049900

7

Bolt, Serrated Hex Flange Washer Head .375-16 x 1.0

Part# 07049900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $2.18

06500012

8

Nut, .25-20 Nyloc Flange

Part# 06500012

OEM Warranty Repair Part for Gravely

Not available

06545400

9

Nut, .31-18 Nyloc Flange

Part# 06545400

OEM Warranty Repair Part for Gravely

Not available

06500009

10

Nut, Nyloc Flange .44-14

Part# 06500009

OEM Warranty Repair Part for Gravely

Not available

06500034

11

Locknut, M10 x 1.50 Whiz

Part# 06500034

OEM Warranty Repair Part for Gravely

Not available

06545500

12

Nut, .38-16 Nyloc Flange

Part# 06545500 (Superseded to 06500726)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.72

JDP101702

13

Bracket, Left Front

Part# JDP101702

OEM Warranty Repair Part for Gravely

Not available

JDP101703

14

Bracket, Right Front

Part# JDP101703

OEM Warranty Repair Part for Gravely

Not available

JDP101704

15

Bracket, Left Rear

Part# JDP101704

OEM Warranty Repair Part for Gravely

Not available

JDP101705

16

Bracket, Right Rear

Part# JDP101705

OEM Warranty Repair Part for Gravely

Not available
