8965-2 - Craftsman 2,400 Watt Portable Generator Generator No. 77563 Parts Diagram

2,400 Watt Portable Generator

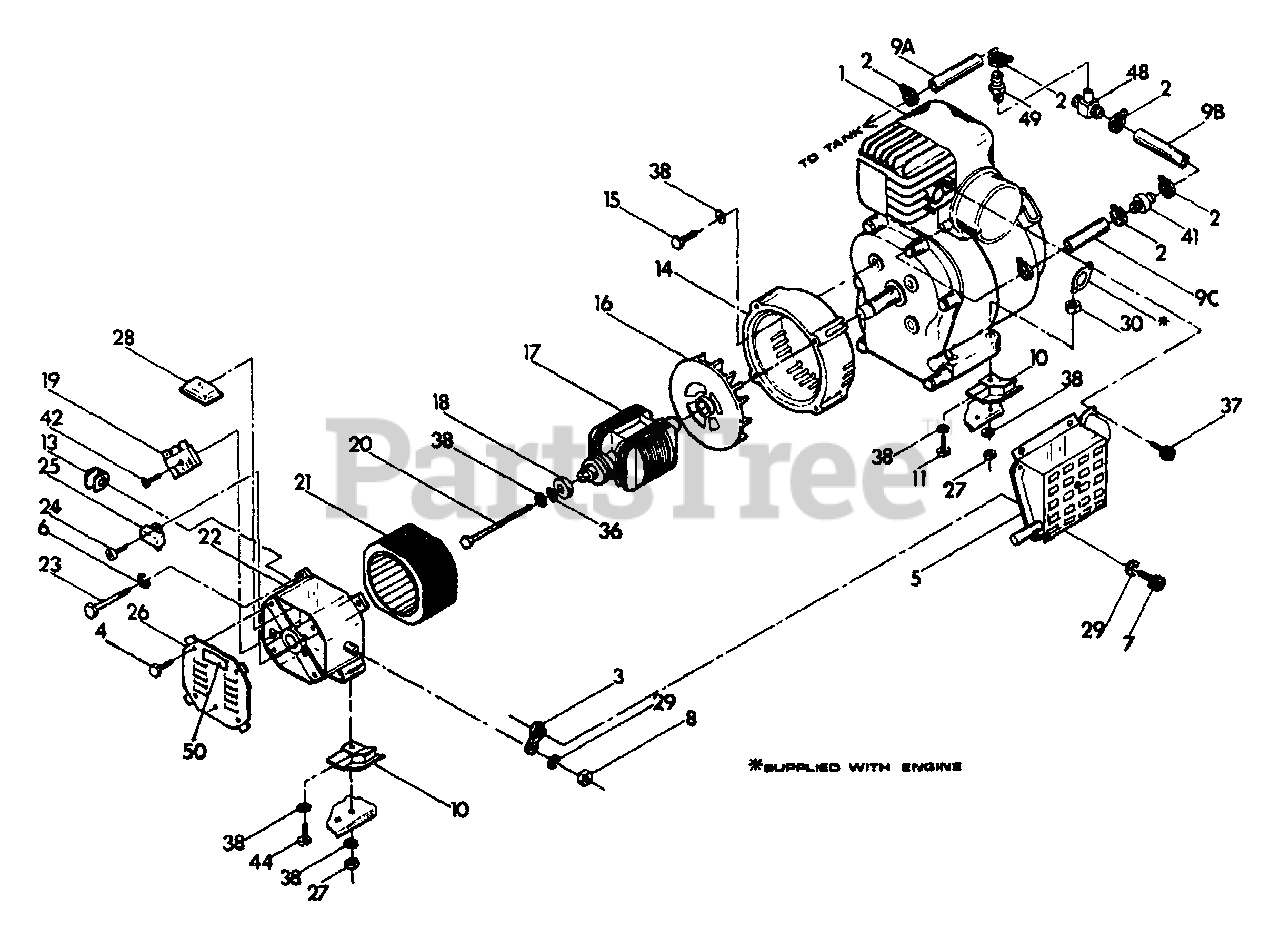

Generator No. 77563 Parts Diagram

  • Title

1

Briggs & Stratton 72271

ENGINE, B & S 5HP

Note: Contact Generac for quantity required

$

$

Currently unavailable

2

Briggs & Stratton 48031C

CLAMP, FUEL LINE

Note: Contact Generac for quantity required

$

$

Not available

3

Briggs & Stratton 73020

BRACKET, MUFFLER SUPPORT

Note: Contact Generac for quantity required

$

$

Currently unavailable

4

Briggs & Stratton 74908

SCREW-M5-0.80 x 8MM
(Superseded to 74908GS)

Note: Contact Generac for quantity required

$2.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 72083

MUFFLER, EXHAUST

Note: Contact Generac for quantity required

$

$

Not available

6

Briggs & Stratton 22097

WASHER, LOCK-1/4"
(Superseded to 5022097)

Note: Contact Generac for quantity required

$2.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 73032

CAPSCREW, SOCKET HD.-3/8"-16-x 1/2"

Note: Contact Generac for quantity required

$

$

Currently unavailable

8

Briggs & Stratton 51755

CAPSCREW, HEX HD.-M10-1.50 x 16

Note: Contact Generac for quantity required

$

$

Currently unavailable

9A

Briggs & Stratton 47662F

HOSE-FUEL-20" LONG

Note: Contact Generac for quantity required

$

$

Currently unavailable

9B

Briggs & Stratton 47662AN

HOSE-FUEL-17" LONG

Note: Contact Generac for quantity required

$

$

Currently unavailable

9C

Briggs & Stratton 47662B

HOSE-FUEL-3" LONG

Note: Contact Generac for quantity required

$

$

Not available

10

Briggs & Stratton 70642

MOUNT, VIBRATION
(Superseded to 70642GS)

Note: Contact Generac for quantity required

$31.99

$

In Stock, only 3 left!

0

11

Briggs & Stratton 71752

SCREW, 5/16"-18 x 1-3/4"

Note: Contact Generac for quantity required

$

$

Currently unavailable

13

Briggs & Stratton 67022

GROMMET, LEAD OUTLET
(Superseded to 67022GS)

Note: Contact Generac for quantity required

$3.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 66365F

HOUSING, ENGINE ADAPTOR
(Superseded to 66365FGS)

Note: Contact Generac for quantity required

$79.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 22336

CAPSCREW-5/16"-18 x 3/4"

Note: Contact Generac for quantity required

$

$

Not available

16

Briggs & Stratton 66389

FAN, COOLING

Note: Contact Generac for quantity required

$

$

Not available

17

Briggs & Stratton 74713

ROTOR

Note: Contact Generac for quantity required

$

$

Currently unavailable

18

Briggs & Stratton 65791

BEARING, BALL
(Superseded to 65791GS)

Note: Contact Generac for quantity required

$34.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 65795

RECTIFIER, BATTERY CHARGE
(Superseded to 65795GS)

Note: Contact Generac for quantity required

$

$

Not available

20

Briggs & Stratton 24420

BOLT, ROTOR

Note: Contact Generac for quantity required

$

$

Not available

21

Briggs & Stratton 74706

STATOR
(Superseded to 5020884SM)

Note: Contact Generac for quantity required

$25.99

$

In Stock, only 3 left!

0

22

Briggs & Stratton 66825

CARRIER, REAR BEARING

Note: Contact Generac for quantity required

$

$

Currently unavailable

23

Briggs & Stratton 66449C

BOLT, STATOR

Note: Contact Generac for quantity required

$

$

Currently unavailable

24

Briggs & Stratton 66849

SCREW, M5-0.80 x 16MM
(Superseded to 66849GS)

Note: Contact Generac for quantity required

$4.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton 66386

HOLDER, BRUSH
(Superseded to 66386GS)

Note: Contact Generac for quantity required

$23.99

$

In Stock, only 4 left!

0

26

Briggs & Stratton 67025

COVER, BEARING CARRIER

Note: Contact Generac for quantity required

$

$

Currently unavailable

27

Briggs & Stratton 62858

NUT, HEX-M8-1.25

Note: Contact Generac for quantity required

$

$

Currently unavailable

28

Briggs & Stratton 68850

RECTIFIER, BRIDGE

Note: Contact Generac for quantity required

$

$

Not available

29

Briggs & Stratton 46526

WASHER, LOCK-M10

Note: Contact Generac for quantity required

$

$

Not available

30

Briggs & Stratton 22241

NUT, HEX-3/8"-16

Note: Contact Generac for quantity required

$

$

Not available

36

Briggs & Stratton 67451

WASHER, FLAT-M8

Note: Contact Generac for quantity required

$

$

Currently unavailable

37

Briggs & Stratton 39974

CAPSCREW, SOCKET HD.

Note: Contact Generac for quantity required

$

$

Currently unavailable

38

Briggs & Stratton 22129

WASHER, LOCK-M8
(Superseded to 22129GS)

Note: Contact Generac for quantity required

$2.99

$

In Stock, only 2 left!

0

41

Briggs & Stratton 68740

FILTER, FUEL
(Superseded to 68740GS)

Note: Contact Generac for quantity required

$11.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 66849A

SCREW, M5-0.80 x 20MM
(Superseded to 66849AGS)

Note: Contact Generac for quantity required

$4.49

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 70644

SCREW, M8-1.25 x 20MM
(Superseded to 70644GS)

Note: Contact Generac for quantity required

$4.49

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 60211

LINER, PORT

Note: Contact Generac for quantity required

$

$

Currently unavailable

48

Briggs & Stratton 71384

VALVE, FUEL SHUT-OFF

Note: Contact Generac for quantity required

$

$

Not available

49

Briggs & Stratton 28414

FITTING, BARBED-1/4"

Note: Contact Generac for quantity required

$

$

Currently unavailable

Briggs & Stratton 77561

MANUAL, OWNERS

Note: Contact Generac for quantity required

$

$

Currently unavailable

50

Briggs & Stratton 74728

DECAL, GROUNDED NEUTRAL
(Superseded to 74728GS)

Note: Contact Generac for quantity required

$5.49

$

Usually ships in 2-12 days

0
