9001029 - Echo Gear Case/Blades Assembly 9001029 Gear Case/Blades Assembly Parts Diagram

Gear Case/Blades Assembly

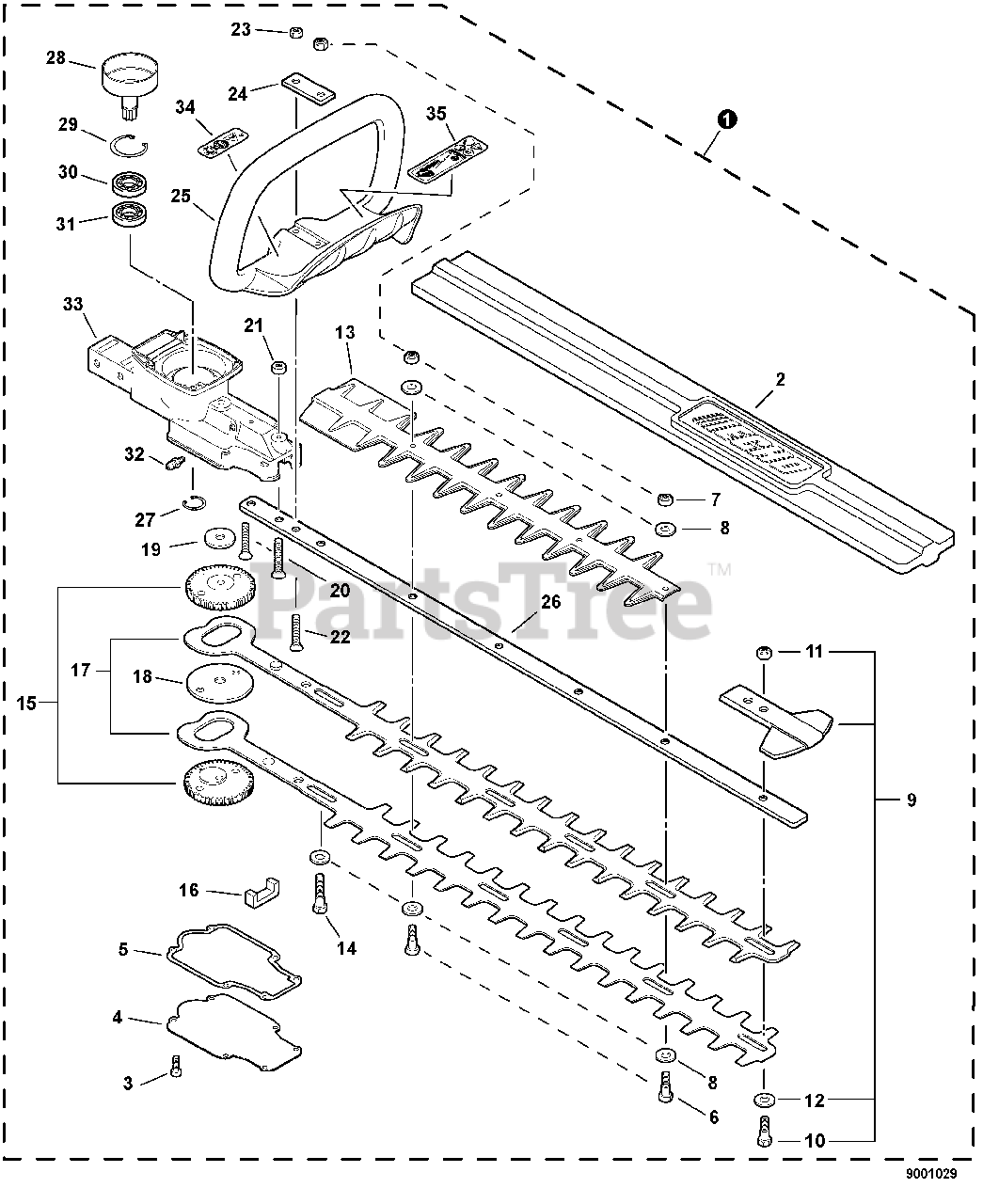

9001029 Gear Case/Blades Assembly Parts Diagram

  • Title

1

Echo 9001029

RePower GEAR CASE/BLADES ASSY

Note: Includes ITEMS 3-35

$194.99

$

In Stock, only 1 left!

0

2

Echo X495000480

COVER, BLADE - 20" (50cm)

$8.99

$

In Stock, Qty 20+

0

3

Echo V804000050

SCREW - 4X12

$0.99

$

In Stock, Qty 20+

0

4

Echo 61041106561

LID, GEAR CASE

$10.99

$

In Stock, only 4 left!

0

5

Echo 61041406560

GASKET, GEAR CASE

$1.49

$

In Stock, Qty 20+

0

6

Echo 69911504660

BOLT - 6X18

$2.49

$

In Stock, Qty 20+

0

7

Echo 43302206460

LOCKNUT - 6

$1.49

$

In Stock, Qty 20+

0

8

Echo 69911804560

WASHER - 6

$0.99

$

In Stock, Qty 20+

0

9

Echo 99988802000

TIP GUARD KIT

Note: Includes ITEMS 10-12

$9.99

$

In Stock, only 1 left!

0

10

Echo 69911504660

BOLT - 6X20

$2.49

$

In Stock, Qty 20+

0

11

Echo 43302206460

LOCKNUT - 6

$1.49

$

In Stock, Qty 20+

0

12

Echo 69911804560

WASHER - 6

$0.99

$

In Stock, Qty 20+

0

13

Echo 69912503061

SHIELD, BLADE

$10.99

$

In Stock, Qty 14

0

14

Echo 69911506560

BOLT - 6X35

$2.99

$

In Stock, Qty 20+

0

15

Echo V650000080

GEAR - SPUR

$53.99

$

In Stock, Qty 20+

0

16

Echo 61042606560

SEAL, FELT

$2.99

$

In Stock, Qty 20+

0

17

Echo X411000271

BLADE, TRIMMER
(Superseded to X411000272)

$41.99

$

In Stock, Qty 20+

0

18

Echo 68902505360

PLATE

$2.49

$

In Stock, Qty 9

0

19

Echo 68902506560

WASHER

$1.49

$

In Stock, only 4 left!

0

20

Echo 90021206030

SCREW - 6X30

$1.49

$

In Stock, Qty 20+

0

21

Echo 90050000006

LOCKNUT - 6

$0.99

$

In Stock, Qty 20+

0

22

Echo 90021205030

SCREW - 5X30

$0.99

$

In Stock, Qty 20+

0

23

Echo 9210805000

LOCKNUT - 5

$0.99

$

In Stock, Qty 20+

0

24

Echo 35161105360

PLATE

$7.49

$

In Stock, only 1 left!

0

25

Echo C400000532

HANDLE - FRONT
(Superseded to C400000533)

$30.99

$

In Stock, only 1 left!

0

26

Echo X425000180

SUPPORT, BLADE

$26.99

$

In Stock, Qty 6

0

27

Echo 90070100014

RING, RETAINING - 14

$1.49

$

In Stock, only 4 left!

0

28

Echo 17500506560

DRUM, CLUTCH

$33.99

$

In Stock, Qty 17

0

29

Echo 90070200035

RING, RETAINING - 35

$1.99

$

In Stock, Qty 16

0

30

Echo 90087236202

BEARING, BALL - 6202

$10.99

$

In Stock, Qty 8

0

31

Echo 90087036202

BEARING, BALL - 6202

$9.99

$

Usually ships in 2-4 days

0

32

Echo 88011054230

FITTING, GREASE

$5.49

$

In Stock, only 3 left!

0

33

Echo C531000053

CASE, GEAR

$66.99

$

In Stock, Qty 13

0

34

Echo X505000290

LABEL - CAUTION

$2.49

$

In Stock, only 1 left!

0

35

Echo X505002610

LABEL - CAUTION

$3.99

$

Usually ships in 2-4 days

0
