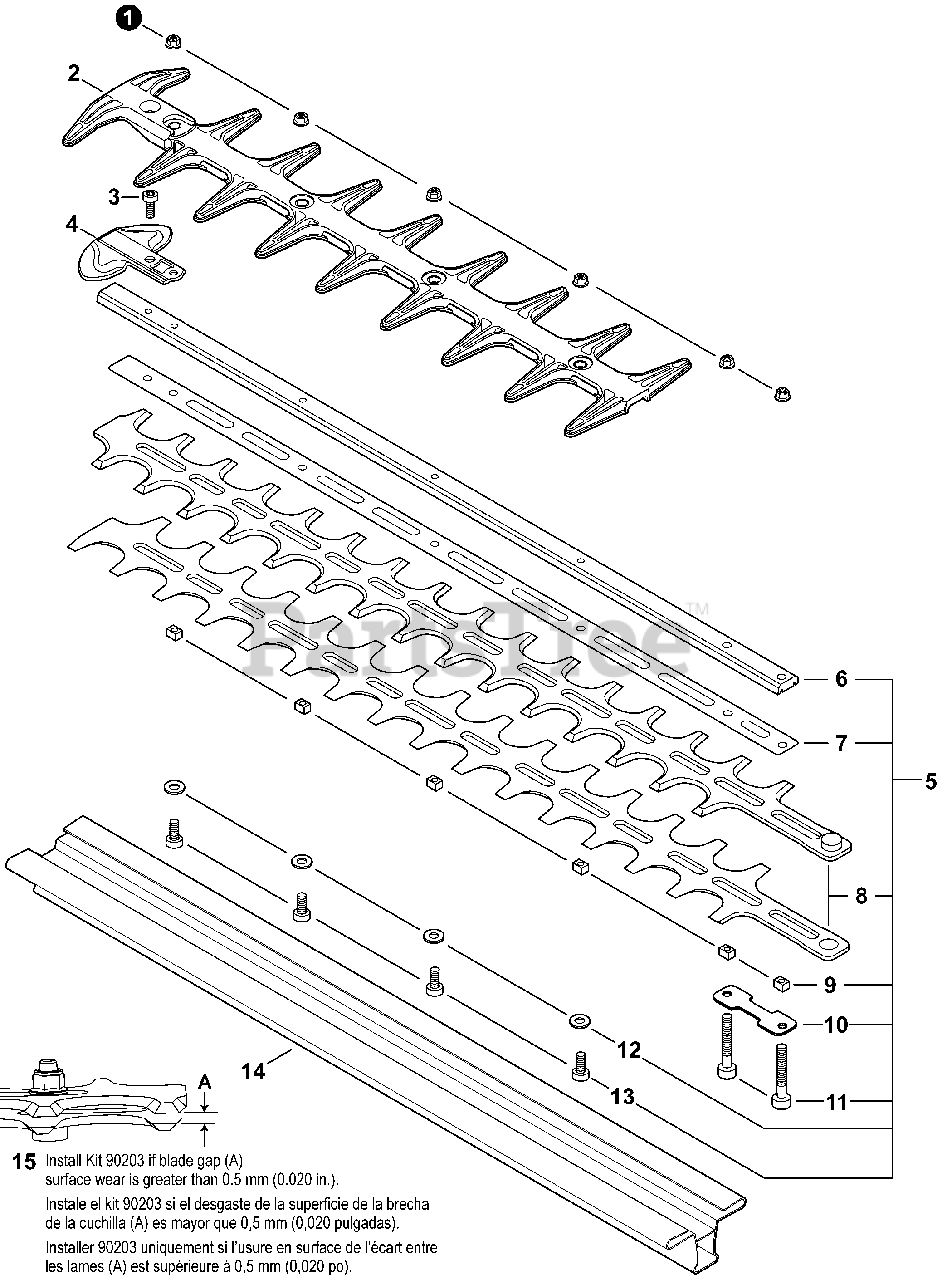

9001050 - Echo HCA Cutting Head Cutters Parts Diagram

HCA Cutting Head

Cutters Parts Diagram

  • Title

1

Echo 9210805000

NUT, FLANGE M5

$1.49

$

In Stock, Qty 20+

0

2

Echo X431000250

GUARD, CUTTER BLADE

$16.99

$

In Stock, Qty 9

0

3

Echo V805000120

BOLT, TORX 5×8

$0.99

$

In Stock, only 1 left!

0

4

Echo E278000311

GUARD, TIP

$7.49

$

In Stock, only 2 left!

0

5

Echo X041000630

CUTTER ASSY, 20"

Note: Includes Items 6-13

$179.99

$

In Stock, only 2 left!

0

6

Echo X425001030

SUPPORT, CUTTER 20"

$37.99

$

In Stock, only 2 left!

0

7

Echo X425001040

PLATE, CUTTER 20"

$11.99

$

In Stock, only 2 left!

0

8

Echo X411001360

CUTTER, 20"

$69.99

$

In Stock, Qty 20+

0

9

Echo V353000250

GUIDE, BLADE 5

$6.99

$

In Stock, Qty 20+

0

10

Echo V150004330

PLATE, EYE

$2.49

$

In Stock, Qty 17

0

11

Echo V805000180

BOLT, TORX 5×30

$1.99

$

In Stock, Qty 20+

0

12

Echo V303000290

WASHER

$0.99

$

In Stock, Qty 20+

0

13

Echo V805000170

BOLT, TORX 5×25

$0.99

$

In Stock, Qty 20+

0

14

Echo X495000770

SCABBARD
(Superseded to X495000800)

$12.99

$

In Stock, Qty 18

0

15

Echo 90203

BLADE KIT, ADJUSTABLE

$15.99

$

Usually ships in 2-4 days

0
