900113 - Echo Hip Mount Throttle Control Kit 900113 Hip Mount Throttle Control Kit Parts Diagram

Hip Mount Throttle Control Kit

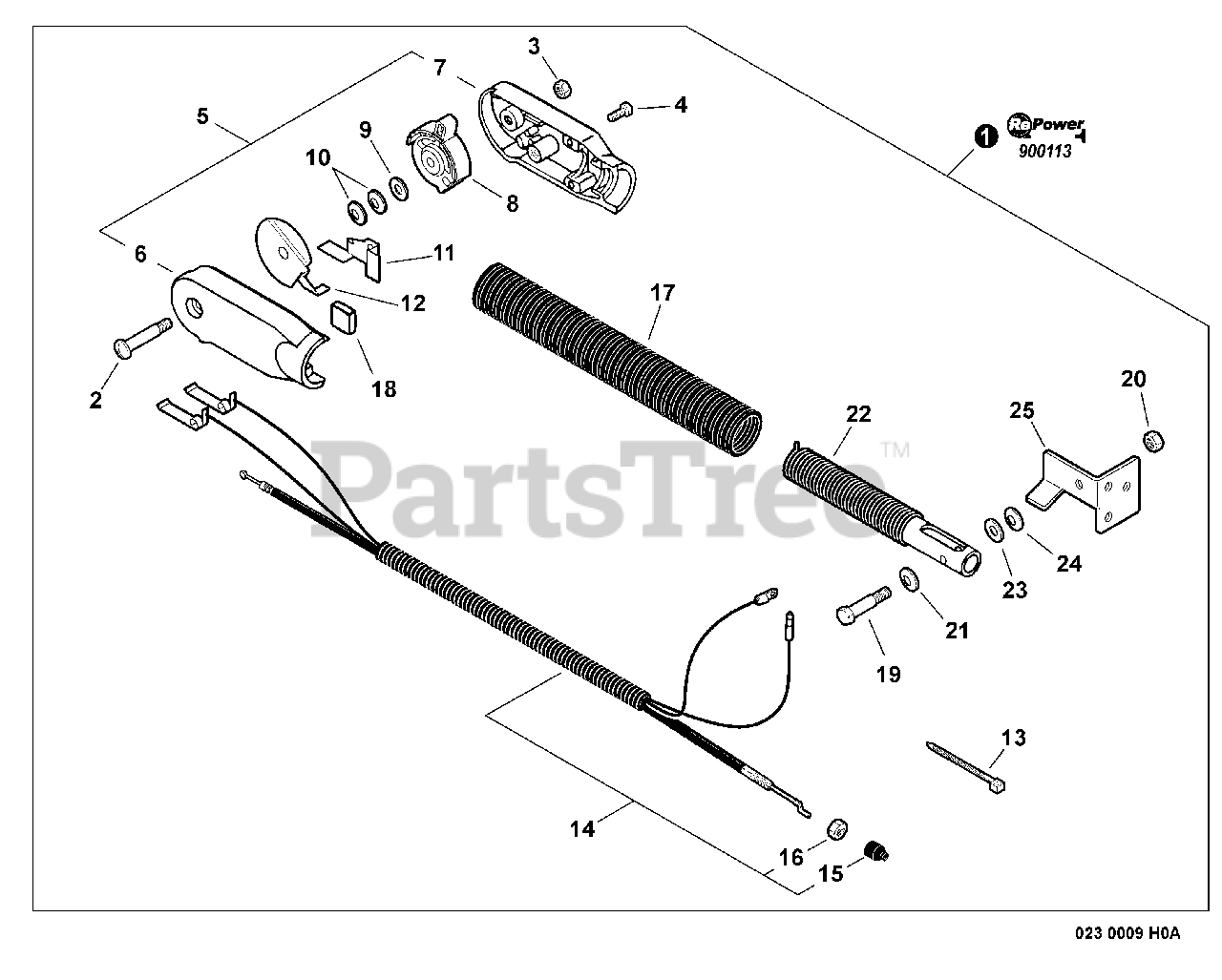

900113 Hip Mount Throttle Control Kit Parts Diagram

  • Title

1

Echo 900113

THROTTLE CONTROL KIT - HIP MOUNT

Note: Includes ITEMS 2-25

$

$

Not available

2

Echo 60403021060

SCREW 4

$1.99

$

In Stock, only 2 left!

0

3

Echo 90056000004

NUT, LOCK 4

$0.99

$

In Stock, Qty 20+

0

4

Echo 88995021060

SCREW 5

$0.99

$

In Stock, Qty 20+

0

5

Echo P021003010

GRIP ASSY, THROTTLE

Note: Includes ITEMS 6-7

$6.99

$

In Stock, Qty 7

0

6

Echo C471000050

GRIP, LEFT THROTTLE

$3.99

$

Usually ships in 2-4 days

0

7

Echo C471000060

GRIP, RIGHT THROTTLE

$3.99

$

Usually ships in 2-4 days

0

8

Echo C453000021

LEVER, THROTTLE

$3.49

$

In Stock, only 2 left!

0

9

Echo 69911804560

WASHER 6.5×15.5×0.6

$0.99

$

In Stock, Qty 20+

0

10

Echo 17816021060

WASHER, FRICTION 6.6×14.3

$0.99

$

In Stock, only 2 left!

0

11

Echo V486000130

TERMINAL, GROUND

$5.49

$

Usually ships in 2-4 days

0

12

Echo V486000140

TERMINAL, GROUND

$5.49

$

Usually ships in 2-4 days

0

13

Echo 178121-43230

STRAP, TIE

$3.99

$

In Stock, only 3 left!

0

14

Echo V043000240

CABLE ASSY, CONTROL

Note: Includes ITEMS 15-16

$20.99

$

In Stock, only 2 left!

0

15

Echo 17808208260

CAP, DUST

$3.99

$

In Stock, only 2 left!

0

16

Echo 900500-00006

NUT, HEX M6

$0.99

$

In Stock, Qty 20+

0

17

Echo V475000910

TUBE, OUTER FLEX

$1.49

$

In Stock, Qty 5

0

18

Echo 10429321060

PAD, FOAM

$4.99

$

In Stock, only 1 left!

0

19

Echo 43261721060

BOLT 6

$1.99

$

In Stock, Qty 10

0

20

Echo 90003010008

NUT, 6

$0.99

$

In Stock, Qty 7

0

21

Echo 70101721061

WASHER 8

$0.99

$

In Stock, Qty 7

0

22

Echo V475000920

TUBE, SPRING

$25.99

$

Usually ships in 2-4 days

0

23

Echo 69402921060

WASHER 8

$0.99

$

In Stock, Qty 5

0

24

Echo 17812921060

WASHER, WAVE

$2.99

$

In Stock, only 4 left!

0

25

Echo C625000000

BRACKET, MOUNTING

$5.99

$

In Stock, Qty 6

0
