90026 PC (31AH54K3897) - Columbia 26" Snow Thrower (2009) Auger & Housing Assembly Parts Diagram

26" Snow Thrower

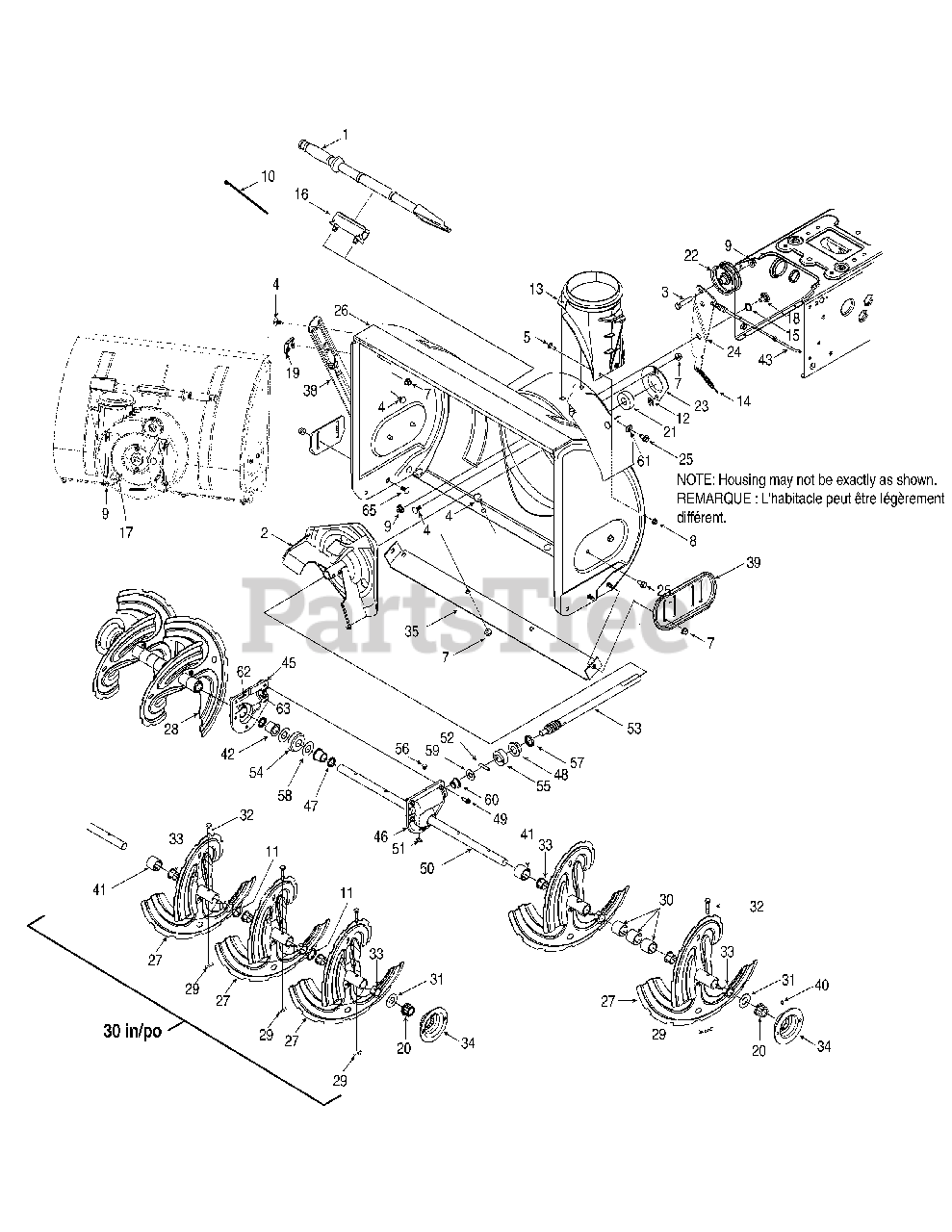

Auger & Housing Assembly Parts Diagram

  • Title

1

White Outdoor 731-2643

Clean-Out Tool
(Superseded to 931-2643)

$18.99

$

In Stock, Qty 8

0

2

White Outdoor 684-04057A-0637

Impeller Ass'y 12 po
(Superseded to 684-04057C-0637)

$68.99

$

In Stock, Qty 8

0

3

White Outdoor 710-0347

Hex Screw 3/8-16 x 1.75

$4.99

$

In Stock, Qty 20+

0

4

White Outdoor 710-0451

Carriage Bolt 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

5

White Outdoor 710-0703

Carriage Screw 1/4-20 x .75 Gr. 5

$3.99

$

In Stock, Qty 20+

0

7

White Outdoor 712-04063

Flange Locknut 5/16-18 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

8

White Outdoor 712-04064

Hex L-Flanged Nut 1/4-20 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

9

White Outdoor 712-04065

Hex L-Flanged Nut 3/8-16 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

10

White Outdoor 725-0157

Cable Tie

$3.49

$

In Stock, only 4 left!

0

11

White Outdoor 731-04871

Spacer 1.25 x .75 x 3/16" Lg.

$6.49

$

In Stock, Qty 20+

0

12

White Outdoor 926-04012

Push-on Nut .25 dia.
(Superseded to 726-04012)

$

$

Not available

13

White Outdoor 731-04705C

Chute Adapter (w/one pc chute crank)
(Superseded to 731-04705D)

$25.99

$

In Stock, Qty 5

0

14

White Outdoor 732-04460

Extension Spring .38 OD x 4.59" Lg.

$4.99

$

In Stock, Qty 20+

0

15

White Outdoor 736-0174

Wave Washer .660 ID x .88 OD x .010

$6.49

$

In Stock, only 2 left!

0

16

White Outdoor 731-2635

Cleanout Tool Mount
(Superseded to 731-11421)

$10.99

$

In Stock, only 2 left!

0

17

White Outdoor 738-0143

Shld. Scr. .500 Dia. x .335" Lg.

$3.99

$

In Stock, Qty 20+

0

18

White Outdoor 938-0281

Shoulder Scr .625 Dia x .170
(Superseded to 738-0281)

$

$

Not available

19

White Outdoor 720-04072A

Hand Knob

$6.49

$

In Stock, Qty 20+

0

20

White Outdoor 941-0245

Hex. Flange Brg. .751" I.D.

$9.49

$

In Stock, Qty 20+

0

21

White Outdoor 941-0309

Self-aligning Bearing

$69.99

$

In Stock, Qty 7

0

22

White Outdoor 756-04224

Flat Idler Pulley 2.75" OD

$24.99

$

In Stock, Qty 20+

0

23

White Outdoor 790-00075

Bearing Housing 1.85 ID
(Superseded to 790-00075B)

$6.49

$

In Stock, only 1 left!

0

24

White Outdoor 790-00080A-0637

Auger Idler Brake Bracket
(Superseded to 790-00080D)

$26.99

$

In Stock, only 1 left!

0

25

White Outdoor 710-04484

Hex TT Screw 3/8-16 x .75

$3.49

$

In Stock, Qty 20+

0

26

White Outdoor 684-04265-0606

Auger Housing - 24" Models
(Superseded to 684-04265A-0606)

$254.99

$

Usually ships in 3-6 days

0

26

White Outdoor 684-04264-0606

Auger Housing - 26" Models
(Superseded to 684-04264A-0606)

$256.99

$

Usually ships in 3-6 days

0

26

White Outdoor 684-04268-0606

Auger Housing - 28" Models
(Superseded to 684-04268A-0606)

$324.99

$

Usually ships in 3-6 days

0

26

White Outdoor 684-04267-0606

Auger Housing - 30" Models
(Superseded to 684-04267A-0606)

$348.99

$

Usually ships in 3-6 days

0

27

White Outdoor 684-04107-0637

Spiral Ass'y LH
(Superseded to 684-04107A-0637)

$83.99

$

In Stock, Qty 12

0

28

White Outdoor 684-04108-0637

Spiral Ass'y RH
(Superseded to 684-04108A-0637)

$88.99

$

In Stock, Qty 14

0

29

White Outdoor 714-04040

Bow Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

30

White Outdoor 731-04870

Spacer 1.25 x .75 x 1.00 - 24-28" Models

$4.49

$

In Stock, Qty 8

0

30

White Outdoor 731-04871

Spacer 1.25 x .75 x 2.00 - 30" Models

$6.49

$

In Stock, Qty 20+

0

31

White Outdoor 736-0188

Flat Washer .760 ID x 1.49 OD

$3.99

$

In Stock, Qty 20+

0

32

White Outdoor 738-04124A

Shear Pin .25 x 1.5 Gr. 2

$1.99

$

In Stock, Qty 20+

0

33

White Outdoor 741-0493A

Flange Bushing
(Superseded to 741-0493C)

$4.49

$

In Stock, Qty 20+

0

34

White Outdoor 790-00087A-0637

Bushing Housing

$21.99

$

In Stock, only 2 left!

0

35

White Outdoor 790-00120

Shave Plate 24" Models

Variations

White Outdoor 790-00120-0637

Shave Plate, 24" Powder Black - POWDER BLACK

$33.99

$

In Stock, Qty 20+

0

White Outdoor 790-00120-0638

Shave Plate, 24" Mtd/Troy-Bilt Red - MTD/TROY-BILT RED

$33.99

$

In Stock, Qty 20+

0

White Outdoor 790-00120-0606

Shave Plate, 24" - MAJESTIC ORANGE

$33.99

$

In Stock, Qty 20+

0

Cub Cadet 790-00120-4044

Shave Plate, 24" Red - CRAFTSMAN RED

$33.99

$

In Stock, Qty 20+

0

White Outdoor 790-00120-4044

Shave Plate, 24" - CRAFTSMAN RED

$33.99

$

In Stock, Qty 20+

0

White Outdoor 790-00120-4021

Shave Plate, 24" - CUB YELLOW 2

$33.99

$

In Stock, Qty 20+

0

White Outdoor 790-00120-0691

Shave Plate, 24" - BLACK JACK

$33.99

$

In Stock, Qty 20+

0

White Outdoor 790-00120-0665

PLATE-SHAVE 24" - YARDMAN GREEN

$33.99

$

In Stock, Qty 20+

0

White Outdoor 790-00120-4043

Shave Plate, 24" - CRAFTSMAN METALLIC GRAY

$33.99

$

In Stock, Qty 20+

0

White Outdoor 790-00120-0662

PLATE-SHAVE 24" - OYSTER GRAY

$33.99

$

In Stock, Qty 20+

0

White Outdoor 790-00120-0689

PLATE-SHAVE 24" - POLO GREEN

$33.99

$

In Stock, Qty 20+

0

White Outdoor 790-00120-0709

PLATE-SHAVE 24" - MASTERCRAFT GREEN

$33.99

$

In Stock, Qty 20+

0

White Outdoor 790-00120-4041

PLATE-SHAVE 24" - PURE ORANGE

$33.99

$

In Stock, Qty 20+

0

White Outdoor 790-00120-0729

PLATE-SHAVE 24" - STORM GRAY

$

$

Not available

$27.99

$

Usually ships in 3-6 days

0

35

White Outdoor 790-00121

Shave Plate 26"Models

Variations

White Outdoor 790-00121-0637

Shave Plate, 26" Powder Black - POWDER BLACK

$34.99

$

In Stock, Qty 9

0

White Outdoor 790-00121-0638

Shave Plate, 26" Red - MTD/TROY-BILT RED

$34.99

$

In Stock, Qty 9

0

Cub Cadet 790-00121-4044

Shave Plate, 26" - CRAFTSMAN RED

$34.99

$

In Stock, Qty 9

0

White Outdoor 790-00121-4044

Shave Plate, 26" - CRAFTSMAN RED

$34.99

$

In Stock, Qty 9

0

White Outdoor 790-00121-4021

Shave Plate, 26" - CUB YELLOW 2

$34.99

$

In Stock, Qty 9

0

White Outdoor 790-00121-0606

Shave Plate, 26" - MAJESTIC ORANGE

$34.99

$

In Stock, Qty 9

0

White Outdoor 790-00121-0689

PLATE-SHAVE 26" - POLO GREEN

$34.99

$

In Stock, Qty 9

0

White Outdoor 790-00121-0691

Shave Plate, 26" - BLACK JACK

$34.99

$

In Stock, Qty 9

0

White Outdoor 790-00121-0709

Shave Plate, 26" - MASTERCRAFT GREEN

$34.99

$

In Stock, Qty 9

0

White Outdoor 790-00121-0650

PLATE-SHAVE 26" - RED METALLIC

$34.99

$

In Stock, Qty 9

0

White Outdoor 790-00121-0662

Shave Plate, 26" - OYSTER GRAY

$34.99

$

In Stock, Qty 9

0

White Outdoor 790-00121-4033

Shave Plate, 26" - FLINT MICA

$34.99

$

In Stock, Qty 9

0

White Outdoor 790-00121-4041

PLATE-SHAVE 26" - PURE ORANGE

$34.99

$

In Stock, Qty 9

0

$28.99

$

Usually ships in 3-6 days

0

35

White Outdoor 790-00118

Shave Plate 28" Models

Variations

White Outdoor 790-00118-0637

Shave Plate, 28" Powder Black - POWDER BLACK

$35.99

$

In Stock, Qty 11

0

White Outdoor 790-00118-0606

Shave Plate, 28" - MAJESTIC ORANGE

$35.99

$

In Stock, Qty 11

0

White Outdoor 790-00118-0638

Shave Plate, 28" Red - MTD/TROY-BILT RED

$35.99

$

In Stock, Qty 11

0

Cub Cadet 790-00118-4044

Shave Plate, 28" - CRAFTSMAN RED

$35.99

$

In Stock, Qty 11

0

White Outdoor 790-00118-4044

Shave Plate, 28" - CRAFTSMAN RED

$35.99

$

In Stock, Qty 11

0

White Outdoor 790-00118-4021

Shave Plate, 28" - CUB YELLOW 2

$35.99

$

In Stock, Qty 11

0

White Outdoor 790-00118-0691

Shave Plate, 28" - BLACK JACK

$35.99

$

In Stock, Qty 11

0

White Outdoor 790-00118-0650

PLATE-SHAVE 28" - RED METALLIC

$35.99

$

In Stock, Qty 11

0

White Outdoor 790-00118-0665

PLATE-SHAVE 28" - YARDMAN GREEN

$35.99

$

In Stock, Qty 11

0

White Outdoor 790-00118-0709

PLATE-SHAVE 28" - MASTERCRAFT GREEN

$35.99

$

In Stock, Qty 11

0

White Outdoor 790-00118-0662

PLATE-SHAVE 28" - OYSTER GRAY

$35.99

$

In Stock, Qty 11

0

$32.99

$

Usually ships in 3-6 days

0

35

White Outdoor 790-00119

Shave Plate 30" Models

Variations

White Outdoor 790-00119-0637

Shave Plate, 30" Powder Black - POWDER BLACK

$37.99

$

In Stock, Qty 5

0

White Outdoor 790-00119-4033

Shave Plate, 30" - FLINT MICA

$37.99

$

In Stock, Qty 5

0

White Outdoor 790-00119-0638

Shave Plate, 30" - MTD/TROY-BILT RED

$37.99

$

In Stock, Qty 5

0

White Outdoor 790-00119-0606

Shave Plate, 30" - MAJESTIC ORANGE

$37.99

$

In Stock, Qty 5

0

White Outdoor 790-00119-0691

Shave Plate, 30" - BLACK JACK

$37.99

$

In Stock, Qty 5

0

White Outdoor 790-00119-0667

PLATE-SHAVE 30" - MIDNIGHT BLUE

$37.99

$

In Stock, Qty 5

0

White Outdoor 790-00119-0665

PLATE-SHAVE 30" - YARDMAN GREEN

$37.99

$

In Stock, Qty 5

0

White Outdoor 790-00119-4021

Shave Plate, 30" - CUB YELLOW 2

$37.99

$

In Stock, Qty 5

0

White Outdoor 790-00119-0689

PLATE-SHAVE 30" - POLO GREEN

$37.99

$

In Stock, Qty 5

0

White Outdoor 790-00119-0709

PLATE-SHAVE 30" - MASTERCRAFT GREEN

$34.99

$

Usually ships in 3-6 days

0

$30.99

$

Usually ships in 3-6 days

0

38

White Outdoor 790-00181-0606

Drift Cutter -

Note: Optional

$37.99

$

Usually ships in 3-6 days

0

39

White Outdoor 790-00091-0606

Reversible Slide Shoe (steel)

$26.99

$

In Stock, Qty 18

0

40

White Outdoor 937-3000

Grease Fitting

Note: Optional

$4.49

$

In Stock, Qty 20+

0

41

White Outdoor 731-04870

Spacer 1.25 x .75 x 1.00

$4.49

$

In Stock, Qty 8

0

42

White Outdoor 741-0661A

Flange Bearing.75 ID x 1.0 OD x .975
(Superseded to 741-0661B)

$9.99

$

In Stock, only 2 left!

0

43

White Outdoor 746-04230

Auger Clutch Cable
(Superseded to 946-04230B)

$21.99

$

In Stock, Qty 20+

0

45

White Outdoor 918-0123A

RH Reduced Auger Housing

$48.99

$

In Stock, Qty 14

0

46

White Outdoor 918-0124A

LH Reduced Auger Housing

$48.99

$

In Stock, Qty 16

0

47

White Outdoor 921-0338

Oil Seal .75 x 1.0 x .125

$6.99

$

In Stock, Qty 20+

0

48

White Outdoor 741-0662

Flange Bearing .75 ID x 1.00 OD x .50

$9.99

$

In Stock, Qty 20+

0

49

White Outdoor 710-0642

Thd Forming Scr. 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

50

White Outdoor 711-04285

Auger Axle 24" Models
(Superseded to 711-04285A)

$83.99

$

In Stock, only 1 left!

0

50

White Outdoor 711-04284

Auger Axle 26" Models
(Superseded to 711-06144)

$76.99

$

Usually ships in 3-6 days

0

50

White Outdoor 711-04283

Auger Axle 28" Models
(Superseded to 711-06145)

$82.99

$

In Stock, only 3 left!

0

50

White Outdoor 711-04282

Auger Axle 30" Models
(Superseded to 711-04282A)

$104.99

$

Usually ships in 3-6 days

0

51

White Outdoor 914-0161

Hi Pro Key 3/16 x 5/8

$4.49

$

In Stock, Qty 12

0

52

White Outdoor 715-04021

Dowel Pin .25 OD x 1.2

$3.99

$

In Stock, Qty 14

0

53

White Outdoor 917-04126

Worm Shaft .75 OD

$73.99

$

In Stock, Qty 11

0

54

White Outdoor 717-04449

Worm Gear 24"-26" Models
(Superseded to 917-04861)

$40.99

$

In Stock, Qty 20+

0

54

White Outdoor 917-0528A

Worm Gear 28"-30" Models
(Superseded to 917-04861)

$40.99

$

In Stock, Qty 20+

0

55

White Outdoor 718-04071

Thrust Collar

$7.49

$

In Stock, Qty 16

0

56

White Outdoor 721-0325

Plug, 1/4 x .437

$4.49

$

In Stock, only 2 left!

0

57

White Outdoor 721-0327

Oil Seal .75 x 1 x .131

$6.49

$

In Stock, Qty 20+

0

58

White Outdoor 936-0351

Flat Washer .76 ID x 1.5 OD x .03
(Superseded to 736-0351)

$3.99

$

In Stock, Qty 20+

0

59

White Outdoor 736-3084

Fl. Washer .510 x 1.120 x .060

$4.49

$

In Stock, Qty 20+

0

60

White Outdoor 741-0663

Flange Bearing .75 ID x 1.0 OD x .925

$8.99

$

In Stock, Qty 20+

0

61

White Outdoor 736-0242

Cupped Washer .345 ID x .88 OD x .060

$3.99

$

In Stock, Qty 20+

0

62

Loctite Sealant 5699

Note: Purchase locally

$

$

Not available

63

White Outdoor 737-0168A

Grease - Alvania EP Lead Free

$28.99

$

In Stock, only 1 left!

0

65

White Outdoor 710-0451

Carriage Bolt 5/16-18 x .75 (w/steel slide shoes)

$3.99

$

In Stock, Qty 20+

0

67

White Outdoor 936-0159

Flat Washer .349 ID x .879 OD x .063
(Superseded to 736-0159)

$

$

Not available

White Outdoor 618-04171A

Gear Box Assembly - 24" Models
(Superseded to 918-04171C)

Note: Not Shown

$378.99

$

In Stock, only 1 left!

0

White Outdoor 618-04172A

Gear Box Assembly - 26" Models
(Superseded to 918-04172C)

Note: Not Shown

$404.99

$

In Stock, only 1 left!

0

White Outdoor 618-04173A

Gear Box Assembly - 28" Models
(Superseded to 918-04173B)

Note: Not Shown

$308.99

$

In Stock, only 1 left!

0

White Outdoor 618-04165A

Gear Box Assembly - 30" Models
(Superseded to 918-04165B)

Note: Not Shown

$416.99

$

In Stock, only 4 left!

0
