90026 PC (31AH54K3897) - Columbia 26" Snow Thrower (2010) Handle & Panel Assembly Parts Diagram

26" Snow Thrower

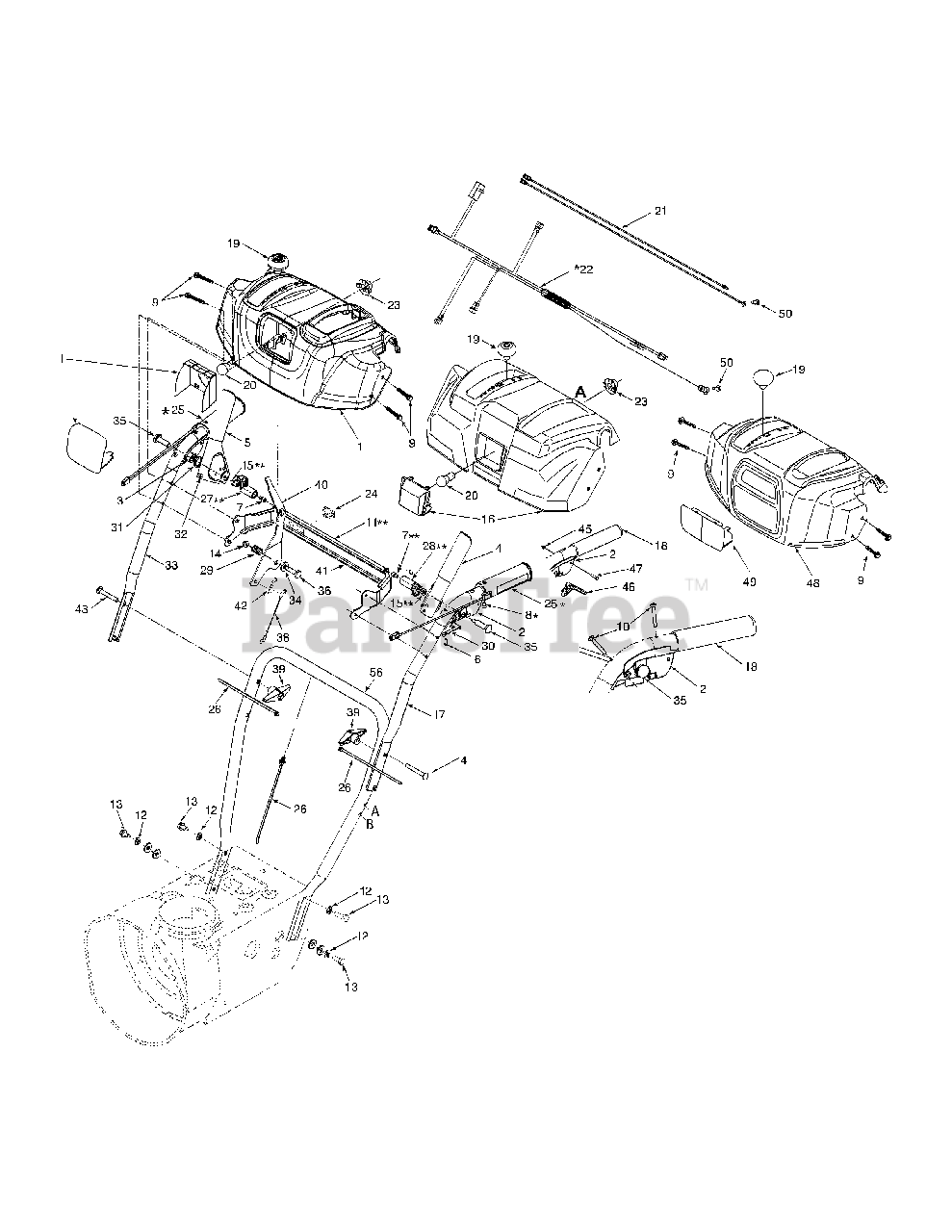

Handle & Panel Assembly Parts Diagram

  • Title

1

White Outdoor 931-04183

Handle Panel Ass’y-Black w/Chute Control

$101.99

$

Usually ships in 3-6 days

0

2

White Outdoor 631-04133A

LH Clutch Lock Handle Ass’y

$14.99

$

Usually ships in 3-6 days

0

3

White Outdoor 631-04134B

RH Clutch Lock Handle Ass’y

$14.99

$

In Stock, only 3 left!

0

4

White Outdoor 684-04105B

Engagement Handle Assembly LH - Black
(Superseded to 684-04105D)

$21.99

$

In Stock, only 1 left!

0

5

White Outdoor 684-04106B

Engagement Handle Assembly RH - Black
(Superseded to 684-04106D)

$20.99

$

In Stock, only 1 left!

0

6

White Outdoor 710-04326

Screw #8-16 x .50

$3.99

$

In Stock, Qty 11

0

7

White Outdoor 710-3069

Hex Cap Socket Screw 1/4-20 x .5

$4.49

$

In Stock, Qty 13

0

8

White Outdoor 710-0837

Oval HD C-Sunk Scr #10 x 5/8

$4.49

$

In Stock, Qty 11

0

9

White Outdoor 710-04586

Hex TT-Tap Scr 1/4-20 x 1.625

$6.49

$

In Stock, only 2 left!

0

10

White Outdoor 710-1233

Oval C-Sunk Hd Screw 10-24 x 1.375

$4.49

$

In Stock, Qty 13

0

11

White Outdoor 684-04250

Pivot Rod

$11.99

$

In Stock, Qty 8

0

12

White Outdoor 936-0119

Lockwasher 5/16 ID

$4.49

$

In Stock, Qty 20+

0

13

White Outdoor 710-1880

Hex TT Screw 5/16-18 x .75 Gr. 5 Patch

$4.49

$

In Stock, Qty 11

0

14

White Outdoor 712-04064

Hex L-Flanged Nut 1/4-20 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

15

White Outdoor 712-04081A

Hex Shoulder Nut 1/4-20

$6.99

$

Usually ships in 3-6 days

0

15

White Outdoor 712-04064

Hex L-Flg Nut 1/4-20 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

16

N/A

Handle Panel Ass’y

Note: Not used in this application

$

$

Not available

17

White Outdoor 749-04191A

Upper Handle LH

Variations

White Outdoor 749-04191A-0638

Left Upper Handle with Hole - MTD/TROY-BILT RED (0638)

$42.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04191A-0637

Left Upper Handle with Hole - POWDER BLACK (0637)

$42.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04191A-0650

HANDLE-UPPER LH W/HOLE - RED METALLIC (0650)

$36.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04191A-0662

HANDLE-UPPER LH W/HOLE - OYSTER GRAY (0662)

$36.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04191A-0665

HANDLE-UPPER LH W/HOLE - YARDMAN GREEN (0665)

$36.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04191A-0689

HANDLE-UPPER LH W/HOLE - POLO GREEN (0689)

$36.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04191A-0691

HANDLE-UPPER LH W/HOLE - BLACK JACK (0691)

$36.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04191A-0709

HANDLE-UPPER LH W/HOLE - MASTERCRAFT GREEN (0709)

$36.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04191A-0729

HANDLE-UPPER LH W/HOLE - STORM GRAY (0729)

$36.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04191A-4033

HANDLE-UPPER LH W/HOLE - FLINT MICA (4033)

$42.99

$

Usually ships in 3-6 days

0

$36.99

$

Usually ships in 3-6 days

0

18

White Outdoor 720-0274

Grip

$10.99

$

In Stock, Qty 8

0

19

White Outdoor 720-04039

Shift Knob

$9.99

$

In Stock, Qty 5

0

20

White Outdoor 725-1629

Lamp
(Superseded to 925-1629)

$10.99

$

In Stock, Qty 14

0

21

White Outdoor 925-04137

Wire Harness

$19.99

$

Usually ships in 3-6 days

0

22

White Outdoor 725-05148

Heated Grip Wire Harness

$64.99

$

In Stock, only 1 left!

0

23

White Outdoor 925-1649

Socket
(Superseded to 925-1649A)

$10.99

$

In Stock, Qty 20+

0

24

White Outdoor 725-04393

Switch

$15.99

$

Usually ships in 3-6 days

0

25

White Outdoor 725-05149

Heated Grip

$74.99

$

Usually ships in 3-6 days

0

26

White Outdoor 926-0154

Cable Tie (w/plug)

$5.99

$

Usually ships in 3-6 days

0

26

White Outdoor 725-0157

Cable Tie (w/heated grips)

$3.49

$

In Stock, only 4 left!

0

27

White Outdoor 731-04894D

Lock Plate

$4.99

$

In Stock, only 4 left!

0

28

White Outdoor 731-04896B

Clutch Lock Cam
(Superseded to 731-04896C)

$3.99

$

In Stock, Qty 12

0

29

White Outdoor 732-0193

Compression Spring .38 ID x .88 Lg

$4.49

$

In Stock, Qty 8

0

30

White Outdoor 732-04219C

Spring: Clutch Lock

$3.99

$

In Stock, Qty 20+

0

31

White Outdoor 732-04238

Torsion Spring .8156 x .3038
(Superseded to 732-04238B)

$4.99

$

In Stock, Qty 12

0

32

White Outdoor 935-0199A

Rubber Bumper
(Superseded to 735-0199A)

$6.99

$

In Stock, Qty 16

0

33

White Outdoor 749-04190A

Upper Handle RH

Variations

White Outdoor 749-04190A-0637

Right Upper Handle with Hole - POWDER BLACK (0637)

$42.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04190A-0638

Right Upper Handle with Hole - MTD/TROY-BILT RED (0638)

$42.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04190A-0650

HANDLE-UPPER RH W/HOLE - RED METALLIC (0650)

$36.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04190A-0662

HANDLE-UPPER RH W/HOLE - OYSTER GRAY (0662)

$36.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04190A-0689

HANDLE-UPPER RH W/HOLE - POLO GREEN (0689)

$36.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04190A-0691

HANDLE-UPPER RH W/HOLE - BLACK JACK (0691)

$42.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04190A-0709

HANDLE-UPPER RH W/HOLE - MASTERCRAFT GREEN (0709)

$36.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04190A-0729

HANDLE-UPPER RH W/HOLE - STORM GRAY (0729)

$36.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04190A-4033

HANDLE-UPPER RH W/HOLE - FLINT MICA (4033)

$42.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04190A-0665

HANDLE-UPPER RH W/HOLE - YARDMAN GREEN (0665)

$

$

Not available

$36.99

$

Usually ships in 3-6 days

0

34

White Outdoor 936-0267

Flat Washer .38 ID x .87 OD x .09
(Superseded to 736-0267)

$4.49

$

In Stock, only 1 left!

0

35

White Outdoor 738-04348

Shoulder Screw .437 x 1.345: 1/4-20

$3.49

$

In Stock, only 4 left!

0

36

White Outdoor 738-04125

Shoulder Screw .374 Dia. x 1.05 Lg.

$4.49

$

In Stock, Qty 20+

0

37

White Outdoor 936-0275

Flat Washer .344 ID x .688 OD x .065
(Superseded to 736-0275)

$

$

Not available

38

White Outdoor 946-04396A

Selector Speed Cable

$19.99

$

In Stock, Qty 20+

0

39

White Outdoor 720-04072A

Handle Knob Assembly

$6.49

$

In Stock, Qty 20+

0

40

White Outdoor 790-00311A

Shift Lever

Variations

White Outdoor 790-00311A-0637

Shift Lever - POWDER BLACK (0637)

$25.99

$

In Stock, only 1 left!

0

$20.99

$

Usually ships in 3-6 days

0

41

White Outdoor 790-00248B-0637

Panel Support
(Superseded to 790-00248E-0637)

$22.99

$

In Stock, only 2 left!

0

42

White Outdoor 914-0145

Cotter Pin
(Superseded to 714-0145)

$4.49

$

In Stock, Qty 20+

0

43

White Outdoor 710-0572

Carriage Bolt 5/16-18 x 2.25

$3.99

$

In Stock, Qty 5

0

44

White Outdoor 749-04138A

Lower Handle

Variations

White Outdoor 749-04138A-0637

Lower Handle, Snow - POWDER BLACK (0637)

$82.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04138A-0638

Lower Handle, Snow - MTD/TROY-BILT RED (0638)

$82.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04138A-0650

HANDLE-LOWER SNOW - RED METALLIC (0650)

$82.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04138A-0662

HANDLE-LOWER SNOW - OYSTER GRAY (0662)

$82.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04138A-0665

HANDLE-LOWER SNOW - YARDMAN GREEN (0665)

$71.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04138A-0668

HANDLE-LOWER SNOW - MOSS GREEN (0668)

$71.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04138A-0689

HANDLE-LOWER SNOW - POLO GREEN (0689)

$71.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04138A-0691

HANDLE-LOWER SNOW - BLACK JACK (0691)

$71.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04138A-0709

HANDLE-LOWER SNOW - MASTERCRAFT GREEN (0709)

$82.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04138A-0729

HANDLE-LOWER SNOW - STORM GRAY (0729)

$71.99

$

Usually ships in 3-6 days

0

White Outdoor 749-04138A-4033

HANDLE-LOWER SNOW - FLINT MICA (4033)

$71.99

$

Usually ships in 3-6 days

0

$82.99

$

Usually ships in 3-6 days

0

45

White Outdoor 716-04036

E Ring

$5.99

$

In Stock, Qty 10

0

46

White Outdoor 731-04913

Steering Control - Black

$4.99

$

In Stock, Qty 6

0

46

White Outdoor 731-04954

Steering Control - Yellow

$5.99

$

In Stock, Qty 20+

0

47

White Outdoor 738-04126

Pin 3/16

$3.99

$

In Stock, Qty 20+

0

48

N/A

Handle Panel Ass’y - Red (w/lens)

$

$

Not available

49

White Outdoor 731-05324

Lens

$13.99

$

Usually ships in 3-6 days

0

50

White Outdoor 710-0599

Hex Wash S-Tapp Scr 1/4-20 x .50

$3.99

$

In Stock, Qty 20+

0
