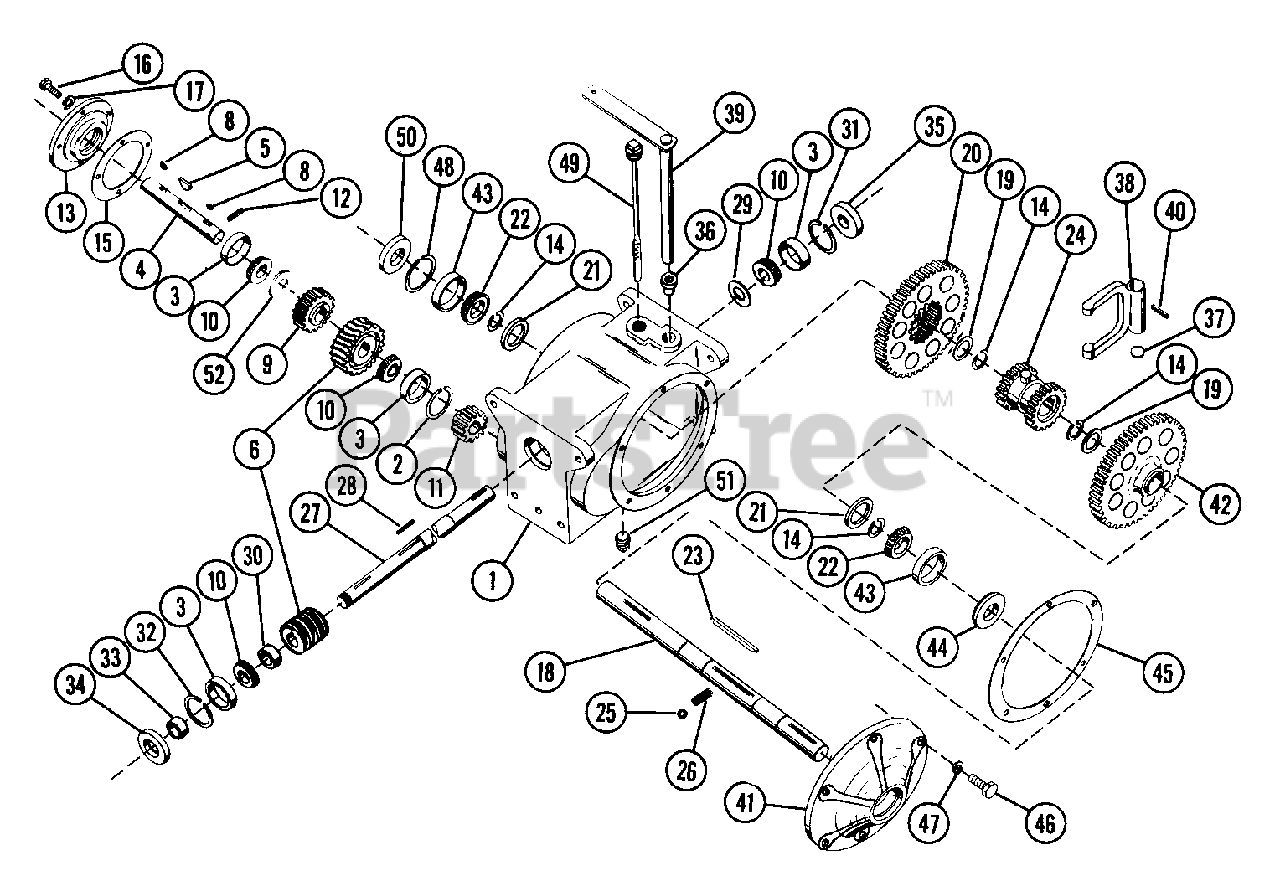

901008 (RT 7020) - Ariens 20" Rear Tine Tiller, 7hp Tecumseh (SN: 000101 & Above) Transmission Assembly Parts Diagram

20" Rear Tine Tiller, 7hp Tecumseh

Transmission Assembly Parts Diagram

  • Title

Ariens 60102100

TRANSMISSION GEAR CASE ASSEMBL
(Superseded to 50102300)

$

$

Not available

1

Ariens 00117200

TRANSMISSION CASE

$

$

Not available

2

Ariens 05707500

RG-RTNG-INT 1.781X.062

$9.49

$

In Stock, only 1 left!

0

3

Ariens 05404400

BRG-CUP 1.781X.475

$9.49

$

In Stock, Qty 20+

0

4

Ariens 00109800

PINION SHAFT

$

$

Not available

5

Ariens 06600100

KEY-WDRF .188X.875X.375 SAE11

$2.99

$

In Stock, Qty 11

0

6

Ariens 50100500

50100& WORM GEAR ASSEMBLY TRAN

$184.99

$

Usually ships in 4-12 days

0

8

Ariens 06600300

KEY-WDRF .188X.75X.313 SAE 9

$1.49

$

In Stock, Qty 7

0

9

Ariens 00120700

HIGH PINION
(Superseded to 50104300)

$

$

Not available

10

Ariens 05404500

BRG-CONE .750X.61

$22.99

$

In Stock, Qty 20+

0

11

Ariens 00120500

LOW PINION

$68.99

$

In Stock, only 1 left!

0

12

Ariens 05801600

PIN-ROLL .188X1.00
(Superseded to 02470401)

$2.49

$

In Stock, only 2 left!

0

13

Ariens 00124800

PINION FLANGE

$

$

Not available

14

Ariens 05704400

RG-RTNG-EXT .984X.062

$3.99

$

Usually ships in 4-12 days

0

15

Ariens 00124900

GASKET

$9.99

$

Usually ships in 4-12 days

0

16

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.49

$

In Stock, Qty 16

0

17

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, only 4 left!

0

18

Ariens 00123500

AXLE SHAFT

$

$

Not available

19

Ariens 00407400

SHIM

$

$

Not available

20

Ariens 00120800

HIGH GEAR

$

$

Not available

21

Ariens 00111300

GEAR SPACER 1.75 X 1.31 X .5

$

$

Not available

22

Ariens 05406900

BRG-CONE 1.0X.58

$18.99

$

In Stock, Qty 9

0

23

Ariens 06601600

KEY-FTHR .25X2.75X.25 SAE1035

$11.99

$

Usually ships in 4-12 days

0

24

Ariens 00109200

CLUTCH HUB

$

$

Not available

25

Ariens 00113900

STEEL BALL

$

$

Not available

26

Ariens 08315000

SG-COMP .047X.31X.593 WLD11

$20.99

$

Usually ships in 4-12 days

0

27

Ariens 00110800

WORM SHAFT

$

$

Not available

28

Ariens 06601300

KEY-SQ .188X1.0X.188 SAE 8630

$1.49

$

In Stock, Qty 5

0

29

Ariens 06403300

WSHR-FL-STL .755X1.375X.125

$3.99

$

In Stock, only 1 left!

0

30

Ariens 00200500

BSHG, SPCR .755X1.12X.50 PM

$7.49

$

In Stock, only 2 left!

0

31

Ariens 05707700

RG-RTNG-INT 1.781X.052
(Superseded to 05702100)

$5.99

$

In Stock, Qty 6

0

32

Ariens 60298200

SNAP RING KIT
(Superseded to 05702100)

$5.99

$

In Stock, Qty 6

0

33

Ariens 00108100

SPACER BUSHING .99 X .75 X .50

$51.99

$

In Stock, only 1 left!

0

34

Ariens 05605200

SEAL 1.000X1.785X.250

$16.99

$

Usually ships in 4-12 days

0

35

Ariens 05605000

SEAL .750X1.781X.250

$21.99

$

Usually ships in 4-12 days

0

36

Ariens 05501500

BSHG-FLG .625X.813X.750

$7.49

$

Usually ships in 4-12 days

0

37

Ariens 00111800

SPACER DISC (USE SCRAP MATRL)

$

$

Not available

38

Ariens 00109300

SHIFT YOKE

$44.99

$

In Stock, only 1 left!

0

39

Ariens 00110900

HIGH-LOW SHIFT LEVER

$

$

Not available

40

Ariens 05800600

PIN-ROLL .250X1.00

$1.99

$

Usually ships in 4-12 days

0

41

Ariens 00120200

TRANSMISSION FLANGE

$

$

Not available

42

Ariens 00120600

LOW GEAR

$

$

Not available

43

Ariens 05407000

BRG-CUP1.980X.420

$17.99

$

In Stock, Qty 13

0

44

Ariens 05605200

SEAL 1.000X1.785X.250

$16.99

$

Usually ships in 4-12 days

0

45

Ariens 00110700

WHEEL GASKET

$5.99

$

In Stock, only 1 left!

0

46

Ariens 05903400

BLT-HEX .31-18X.88 PL GR2
(Superseded to 05947800)

$2.49

$

Usually ships in 4-12 days

0

47

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, only 4 left!

0

48

Ariens 60298300

SNAP RING KIT
(Superseded to 05708200)

$11.99

$

Usually ships in 4-12 days

0

49

Ariens 00101300

DIP STICK

$21.99

$

Usually ships in 4-12 days

0

50

Ariens 05604900

SEAL 1.000X1.980X.250

$15.99

$

Usually ships in 4-12 days

0

51

Ariens 00113700

PIPE PLUG

$

$

Not available

52

Ariens 00124700

LOAD RING

$

$

Not available
