901008 (RT 7020) - Ariens 20" Rear Tine Tiller, 7hp Tecumseh (SN: 000101 & Above) Weight & Frame Assembly Parts Diagram

20" Rear Tine Tiller, 7hp Tecumseh

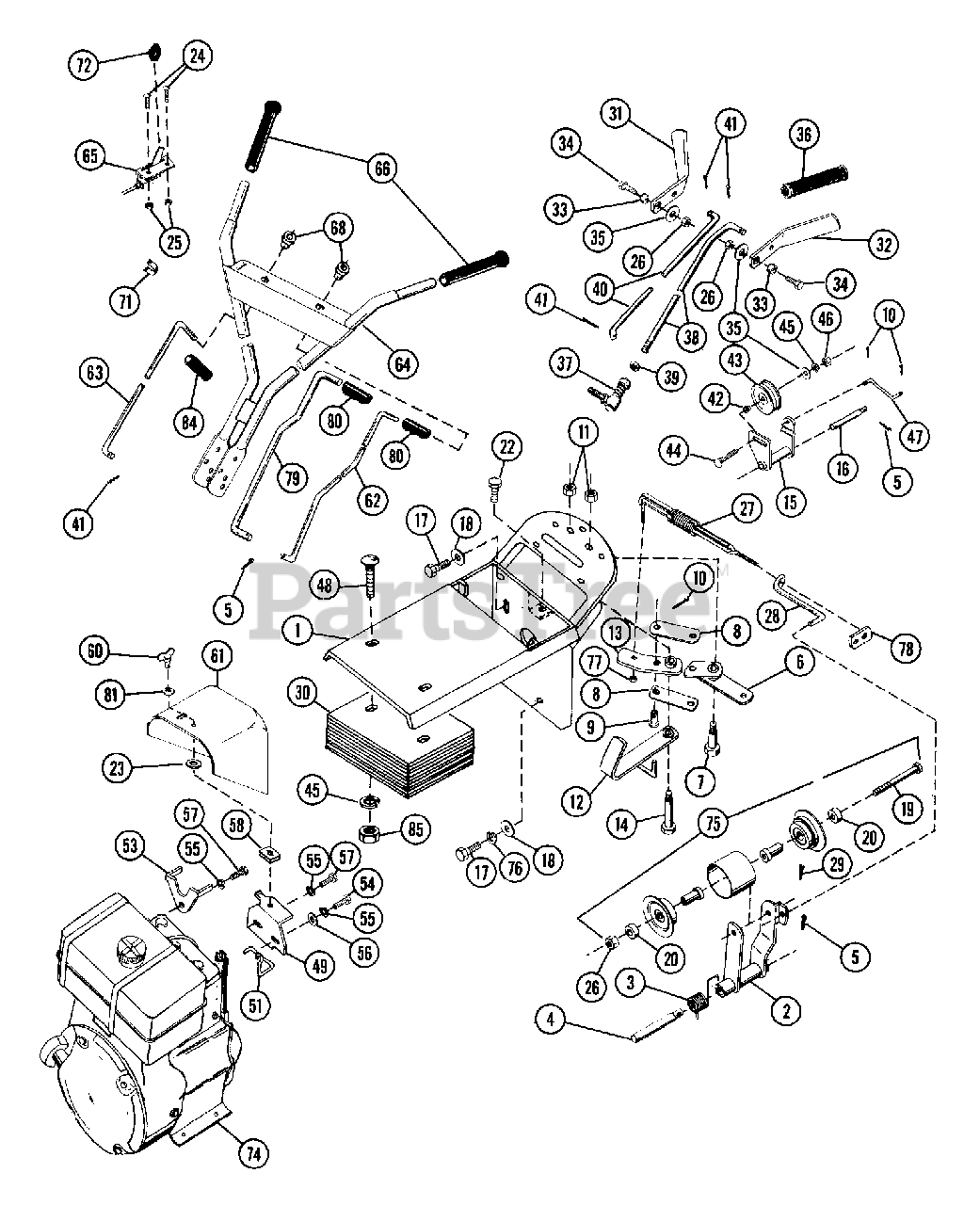

Weight & Frame Assembly Parts Diagram

  • Title

1

Ariens 00129400

FRAME

$

$

Not available

2

Ariens 00121000

IDLER ARM

$

$

Not available

3

Ariens 08310600

SG-TORS .076X.89X1.98

$

$

Not available

4

Ariens 01042100

IDLER PIN

$18.99

$

Usually ships in 4-12 days

0

5

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 12

0

6

Ariens 00112700

BELL CRANK

$

$

Not available

7

Ariens 00302800

SHOULDER BOLT
(Superseded to 03535600)

$22.99

$

Usually ships in 4-12 days

0

8

Ariens 00121100

LINK

$12.99

$

Usually ships in 4-12 days

0

9

Ariens 00121200

CLEVIS PIN .243/.248X7/16

$

$

Not available

10

Ariens 06700300

PIN-COTR .06X.50
(Superseded to 06712400)

$3.99

$

Usually ships in 4-12 days

0

11

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 00117700

LEVER REVERSE

$

$

Not available

13

Ariens 00102000

FORWARD LEVER

$

$

Not available

14

Ariens 00301600

SHOULDER BOLT .50 X 1.75

$

$

Not available

15

Ariens 00123400

REVERSE IDLER

$63.99

$

Usually ships in 4-12 days

0

16

Ariens 00121400

IDLER PIN

$

$

Not available

17

Ariens 05900500

BLT-HEX .38-16X1.25 PL GR 2
(Superseded to 05958000)

$1.49

$

In Stock, Qty 8

0

18

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 05913100

BLT-HEX .31-18X2.50 PL GR2
(Superseded to 05952600)

$1.49

$

In Stock, only 4 left!

0

20

Ariens 00211100

BSHG, SPCR.500X.750X.321 PM

$3.49

$

In Stock, Qty 20+

0

22

Ariens 05900300

BLT-HEX .31-18X1.00 PL GR 2
(Superseded to 05946900)

$1.49

$

In Stock, Qty 8

0

23

Ariens 07005000

NUT-RETNR

$3.99

$

Usually ships in 4-12 days

0

24

Ariens 06101200

SCR-MCH 10-24X.50 SLRH PL
(Superseded to 06117600)

$2.99

$

Usually ships in 4-12 days

0

25

Ariens 06505100

NUT-KEPS 10-24 PL
(Superseded to 06536600)

$0.99

$

In Stock, Qty 5

0

26

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

27

Ariens 00126600

CLUTCH SPRING

$140.99

$

Usually ships in 4-12 days

0

28

Ariens 00126400

CLUTCH LINK

$90.99

$

Usually ships in 4-12 days

0

29

Ariens 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 10

0

30

Ariens 00129500

WEIGHT WAFER

$6.65

$

Usually ships in 4-12 days

0

31

Ariens 00104200

DRIVE CLUTCH HANDLE
(Superseded to 00104259)

$

$

Not available

32

Ariens 00104300

TILLER CLUTCH HANDLE
(Superseded to 00104359)

$

$

Not available

33

Ariens 00607100

SPACER BUSHING .5 X .32 X .21

$14.99

$

Usually ships in 4-12 days

0

34

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.49

$

In Stock, Qty 12

0

35

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 14

0

36

Ariens 07509400

GRIP

$

$

Not available

37

Ariens 00306000

SNAP IN BALL JOINT

$

$

Not available

38

Ariens 00104400

TILLER CLUTCH ROD

$

$

Not available

39

Ariens 06503100

NUT-HEX .312-24 PL
(Superseded to 06529500)

$1.99

$

Usually ships in 4-12 days

0

40

Ariens 00111500

DRIVE CLUTCH ROD

$45.99

$

Usually ships in 4-12 days

0

41

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

Note: (Used Only On Model(s): 901007).

$0.99

$

In Stock, Qty 5

0

41

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

Note: (Used Only On Model(s): 901010,08).

$0.99

$

In Stock, Qty 5

0

42

Ariens 01213100

SPCR, BRG .315X.50X.688X.281

$3.49

$

In Stock, Qty 6

0

43

Ariens 01213200

IDLER
(Superseded to 52007000)

$39.99

$

In Stock, Qty 15

0

44

Ariens 06202200

BLT-RDHDSQNK .31-18X1.38SHT PL
(Superseded to 06212100)

$1.49

$

In Stock, Qty 9

0

45

Ariens 06302100

WSHR-LK .375X.094 MED PL
(Superseded to 06308800)

$0.99

$

In Stock, Qty 18

0

46

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 16

0

47

Ariens 00118000

LINK REVERSE

$

$

Not available

48

Ariens 06200500

BLT-RDHDSQNK .38-16X2.25 SHTPL
(Superseded to 06213400)

$3.99

$

In Stock, only 2 left!

0

49

Ariens 00123100

BELT COVER BRACKET

$

$

Not available

51

Ariens 00112800

BELT FINGER

Note: (Used Only On Model(s): 901010,08).

$63.99

$

Usually ships in 4-12 days

0

51

Ariens 00123300

FORWARD BELT FINGER

Note: (Used Only On Model(s): 901007).

$77.99

$

In Stock, only 1 left!

0

53

Ariens 00125600

BELT FINGER

$36.99

$

Usually ships in 4-12 days

0

54

Ariens 05905300

BLT-HEX .31-24X.75 PL GR5
(Superseded to 05947300)

$1.49

$

In Stock, Qty 20+

0

55

Ariens 06301800

WSHR-LK-INT .313X.030 PL
(Superseded to 06310500)

$0.99

$

In Stock, only 3 left!

0

56

Ariens 06405700

WSHR-FL-STL .323X.625X.062 PL
(Superseded to 06436700)

$1.49

$

In Stock, only 2 left!

0

57

Ariens 05903600

BLT-HEX .31-24X.50 GR5
(Superseded to 05962700)

$

$

Not available

58

Ariens 07004900

NUT-SPEED 1/4 TURN SOUTHCO

$

$

Not available

60

Ariens 07005100

SCR-WING .25 TURN SOUTHCO

$14.99

$

Usually ships in 4-12 days

0

61

Ariens 00126000

BELT COVER

$

$

Not available

62

Ariens 00131300

CLUTCH ROD

Note: (Used Only On Model(s): 901010,08).

$

$

Not available

63

Ariens 00141400

HANDLEBAR

Note: (Used Only On Model(s): 901010,08).

$

$

Not available

64

Ariens 00130900

HANDLEBAR

$

$

Not available

65

Ariens 06912500

THROTTLE CONTROL

$

$

Not available

66

Ariens 07507700

HANDLEGRIP

$

$

Not available

68

Ariens 07501200

SNAP BUSHING
(Superseded to 07511200)

Note: (Used Only On Model(s): 901007).

$1.49

$

In Stock, only 3 left!

0

68

Ariens 07501200

SNAP BUSHING
(Superseded to 07511200)

Note: (Used Only On Model(s): 901010,08).

$1.49

$

In Stock, only 3 left!

0

71

Ariens 07510000

CABLE RETAINER

$

$

Not available

72

Ariens 07510500

HANDLE GRIP

$

$

Not available

73

Ariens 05900100

BLT-HEX .25-20X.75 PL GR2
(Superseded to 05946800)

$0.99

$

In Stock, Qty 12

0

74

ENGINE, 5 HP TEC. H50-65397L

Note: (Used Only On Model(s): 901007).

$

$

Not available

74

ENGINE, 7 HP TEC. HH70-14038B

Note: (Used Only On Model(s): 901010,08).

$

$

Not available

75

Ariens 50200700

IDLER ASSEMBLY

$96.99

$

Usually ships in 4-12 days

0

76

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$3.49

$

In Stock, Qty 10

0

77

Ariens 06512600

NUT-LK 8-32 GR A PL

$

$

Not available

78

Ariens 00126500

RETAINING NUT

$9.49

$

Usually ships in 4-12 days

0

79

Ariens 00182300

WMT, IDLER MOUNT(COMM.BAGGER)

Note: (Used Only On Model(s): 901007).

$

$

Not available

80

Ariens 07509900

GRIP
(Superseded to 07514700)

$

$

Not available

81

Ariens 06400100

WSHR-FL-STL .250X.562X.049 PL
(Superseded to 06442300)

$1.99

$

In Stock, only 2 left!

0

84

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, only 1 left!

0

85

Ariens 07510200

GRIP
(Superseded to 07530200)

$1.99

$

Usually ships in 4-12 days

0
