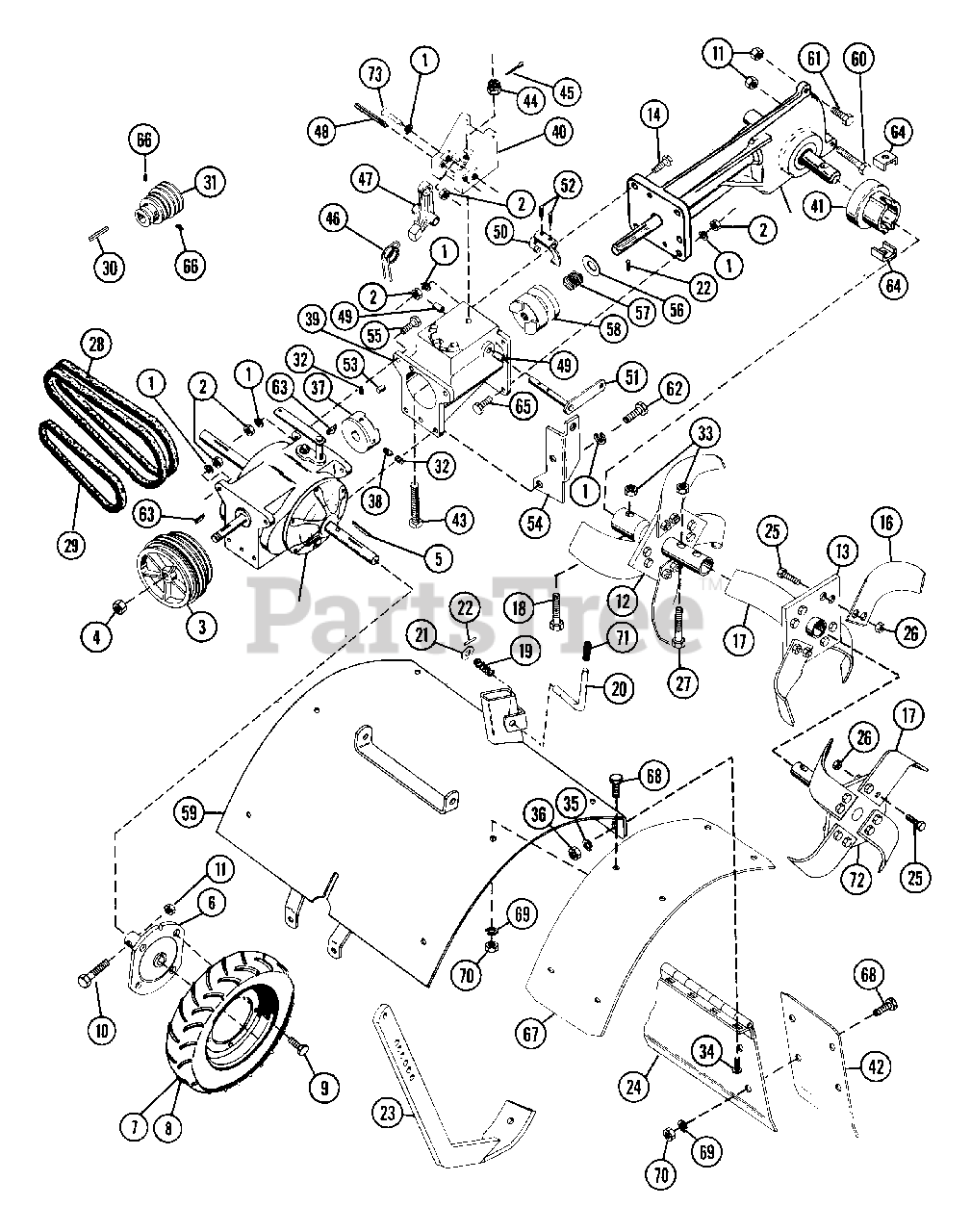

901009 (RT 8020) - Ariens 20" Rear Tine Tiller, 8hp Kohler (SN: 000101 & Above) Tine & Drive Assembly (Cast Iron Transmission Case) Parts Diagram

20" Rear Tine Tiller, 8hp Kohler

Tine & Drive Assembly (Cast Iron Transmission Case) Parts Diagram

  • Title

1

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$3.49

$

In Stock, Qty 10

0

2

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, only 1 left!

0

3

Ariens 00133300

DRIVE SHEAVE

$

$

Not available

4

Ariens 06503000

NUT-LK-CTR .75-16 PL
(Superseded to 06536900)

$5.99

$

In Stock, Qty 8

0

5

Ariens 06601000

KEY-FTHR .25X1.875X.25 SAE

$4.99

$

Usually ships in 4-12 days

0

6

Ariens 00132700

WHEEL HUB
(Superseded to 00132751)

$

$

Not available

7

Ariens 60101500

R H TIRE AND RIM ASSY
(Superseded to 07115900)

$

$

Not available

8

Ariens 60101600

L H TIRE AND RIM ASSY
(Superseded to 07116000)

$

$

Not available

Ariens 00711100

LIFT ARM 37046

$

$

Not available

Ariens 07107600

WHL

$67.99

$

In Stock, only 1 left!

0

9

Ariens 07406300

SCR-TAP .500-20X.62 HH PL
(Superseded to 07416900)

$13.99

$

In Stock, only 3 left!

0

10

Ariens 05905700

BLT-HEX .31-18X2.00 PL GR2
(Superseded to 05957200)

$1.49

$

In Stock, Qty 12

0

11

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 00134900

INNER TINE HUB

$219.99

$

Usually ships in 4-12 days

0

13

Ariens 00135000

OUTER TINE HUB

$

$

Not available

14

Ariens 05902700

BLT-HEX .38-16X1.75 PL GR2
(Superseded to 05958500)

$1.49

$

In Stock, only 4 left!

0

15

Ariens 06509800

NUT-LK .375-16 PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 00417200

R KNIFE TINE

$25.99

$

Usually ships in 4-12 days

0

17

Ariens 00417100

L KNIFE TINE

$25.99

$

Usually ships in 4-12 days

0

18

Ariens 05920200

BLT-HEX .38-16X2.75 GR8
(Superseded to 05961400)

$3.99

$

In Stock, Qty 20+

0

19

Ariens 08300600

SG-COMP .045X.50X1.187
(Superseded to 08300028)

$4.99

$

In Stock, Qty 9

0

20

Ariens 00130600

DEPTH REGULATING PIN

$

$

Not available

21

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 14

0

22

Ariens 05800900

PIN-ROLL .125X1.00

$0.99

$

In Stock, Qty 18

0

23

Ariens 00104700

DEPTH SHOE

$146.99

$

Usually ships in 4-12 days

0

24

Ariens 00132400

TAILBOARD

$

$

Not available

25

Ariens 05902600

BLT-HEX .44-14X1.00 GR5
(Superseded to 05958700)

$2.99

$

In Stock, only 1 left!

0

26

Ariens 06501900

NUT-LK-TOP .437-14 GR C PL
(Superseded to 06536400)

$2.99

$

Usually ships in 4-12 days

0

27

Ariens 05920300

BLT-HEX .38-16X2.00 GR8
(Superseded to 05963100)

$2.99

$

In Stock, only 3 left!

0

28

Ariens 07212600

V-BELT, SAE 380-RAW EDGE (SET)

$37.99

$

Usually ships in 4-12 days

0

29

Ariens 07212600

V-BELT, SAE 380-RAW EDGE (SET)

$37.99

$

Usually ships in 4-12 days

0

30

Ariens 06603400

KEY-SQ .25 X 1.25 X .25 SAE

$3.99

$

In Stock, only 1 left!

0

31

Ariens 00133400

ENGINE SHEAVE

$

$

Not available

32

Ariens 06001200

SCR-SET .32-18X.38 SKHCUPNL OH
(Superseded to 06005500)

$2.99

$

In Stock, Qty 17

0

33

Ariens 06512200

NUT-LK TOP .375-16 GR C YWZC

$2.49

$

Usually ships in 4-12 days

0

34

Ariens 06200900

BLT-RDHDSQSHNK .31-18X.50 YZ
(Superseded to 06222000)

$2.99

$

In Stock, only 4 left!

0

35

Ariens 06300100

WSHR-LK .313X.093 MED HICLR

$

$

Not available

36

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 16

0

37

Ariens 00103800

TILLER DRIVING JAW

$130.99

$

Usually ships in 4-12 days

0

38

Ariens 06000900

SCR-SET .32-18X.50 SKHHOP OH

$3.99

$

Usually ships in 4-12 days

0

39

Ariens 00117400

CLUTCH HOUSING

$

$

Not available

40

Ariens 00110600

HANDLEBAR BRACKET
(Superseded to 00158800)

$

$

Not available

41

Ariens 00130500

DUST CAP

$22.99

$

Usually ships in 4-12 days

0

42

Ariens 00132600

TAILBOARD EXTENSION

$

$

Not available

43

Ariens 00107700

SWIVEL BOLT

$77.99

$

Usually ships in 4-12 days

0

44

Ariens 06505000

NUT-SL .50-13

$3.99

$

Usually ships in 4-12 days

0

45

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 12

0

46

Ariens 08300300

SG-TORS .109X.88X2.25

$34.99

$

Usually ships in 4-12 days

0

47

Ariens 00102600

LATCH

$

$

Not available

48

Ariens 05801300

PIN-ROLL .313X2.00

$2.99

$

Usually ships in 4-12 days

0

49

Ariens 05510000

BSHG-SLV .500X.687X.500

$113.99

$

Usually ships in 4-12 days

0

50

Ariens 00100800

CLUTCH FORK

$56.99

$

Usually ships in 4-12 days

0

51

Ariens 00102300

TINE ENGAGING FORK SHAFT

$

$

Not available

52

Ariens 05801600

PIN-ROLL .188X1.00
(Superseded to 02470401)

$2.49

$

In Stock, only 2 left!

0

53

Ariens 00406700

DOWEL PIN

$

$

Not available

54

Ariens 00131800

ENGAGEMENT PIVOT BRACKET

$

$

Not available

55

Ariens 05900600

BLT-HEX .38-16X1.50 PL GR2
(Superseded to 05957900)

$1.49

$

In Stock, Qty 5

0

56

Ariens 06403300

WSHR-FL-STL .755X1.375X.125

$3.99

$

In Stock, only 1 left!

0

57

Ariens 08300500

SG-COMP .080X.97X2.18 WLD14

$14.99

$

In Stock, only 1 left!

0

58

Ariens 00103900

TILLER JAW CLUTCH

$147.99

$

Usually ships in 4-12 days

0

59

Ariens 50101500

TINE HOOD WITH DECALS

$

$

Not available

60

Ariens 05919200

BLT-HEX .31-18X3.50 PL GR2
(Superseded to 05948000)

$2.49

$

Usually ships in 4-12 days

0

61

Ariens 05906900

BLT-HEX .31-18X1.25 PL GR2
(Superseded to 05947500)

$2.49

$

In Stock, only 2 left!

0

62

Ariens 05902700

BLT-HEX .38-16X1.75 PL GR2
(Superseded to 05958500)

$1.49

$

In Stock, only 4 left!

0

63

Ariens 06601100

KEY-FTHR .188X1.25X.187 SAE

$8.49

$

In Stock, Qty 7

0

64

Ariens 00126700

CLIP

$15.99

$

Usually ships in 4-12 days

0

65

Ariens 05906800

BLT-HEX .38-16X2.00 PL GR2
(Superseded to 05963300)

$2.99

$

In Stock, Qty 13

0

66

Ariens 06001200

SCR-SET .32-18X.38 SKHCUPNL OH
(Superseded to 06005500)

$2.99

$

In Stock, Qty 17

0

67

Ariens 00132500

TINE HOOD EXTENSION

$

$

Not available

68

Ariens 05902800

BLT-HEX .25-20X.50 PL GR2
(Superseded to 05947900)

$0.99

$

In Stock, Qty 5

0

69

Ariens 06300200

WSHR-LK .250X.077 HVY PL
(Superseded to 06308000)

$0.99

$

Usually ships in 4-12 days

0

70

Ariens 06503200

NUT-HEX .250-20 PL
(Superseded to 06533200)

$0.99

$

In Stock, Qty 7

0

71

Ariens 07501300

GRIP

$

$

Not available

72

Ariens 00135000

OUTER TINE HUB

$

$

Not available

73

Ariens 05900400

BLT-HEX .38-16X1.00 PL
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0
