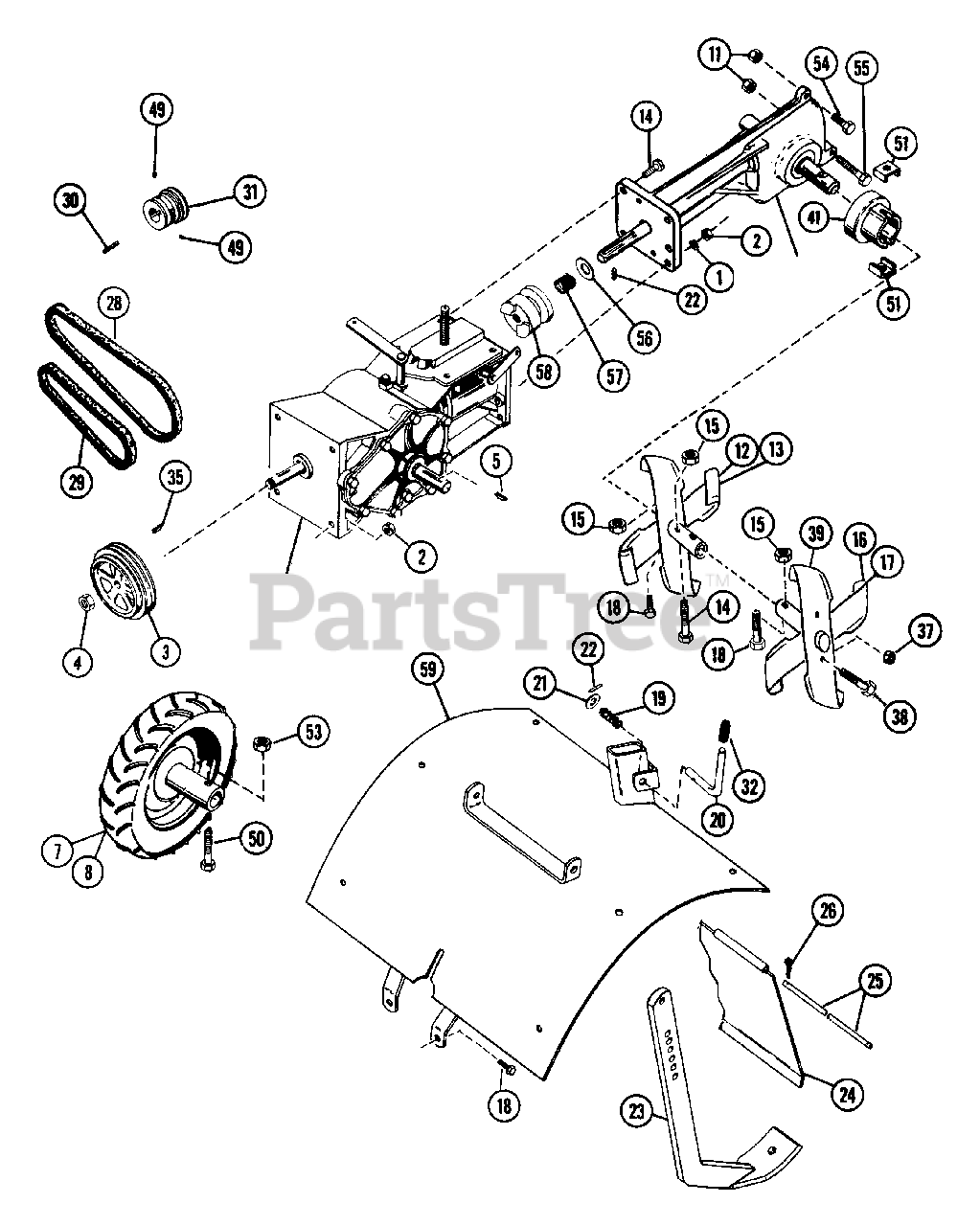

901011 (RT 5020) - Ariens 20" Rear Tine Tiller, 5hp Tecumseh (SN: 000101 & Above) Tine & Drive Assembly Parts Diagram

20" Rear Tine Tiller, 5hp Tecumseh

Tine & Drive Assembly Parts Diagram

  • Title

1

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$3.49

$

In Stock, Qty 10

0

2

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, Qty 7

0

3

Ariens 00138500

DRIVE SHEAVE

$

$

Not available

4

Ariens 06503000

NUT-LK-CTR .75-16 PL
(Superseded to 06536900)

$5.99

$

In Stock, Qty 6

0

5

Ariens 06601000

KEY-FTHR .25X1.875X.25 SAE

$4.99

$

Usually ships in 4-12 days

0

7

Ariens 60104200

R H TIRE & RIM ASSEMBLY
(Superseded to 07117000)

$

$

Not available

8

Ariens 60104100

L H TIRE & RIM ASSEMBLY
(Superseded to 07116900)

$

$

Not available

8

Ariens 07112700

WHL

$

$

Not available

8

Ariens 07111100

TIRE

$

$

Not available

11

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 00125800

R H INNER TINE SPOOL
(Superseded to 50203100)

$

$

Not available

13

Ariens 00125900

L H INNER TINE SPOOL
(Superseded to 00238300)

$94.99

$

In Stock, only 1 left!

0

14

Ariens 05902700

BLT-HEX .38-16X1.75 PL GR2
(Superseded to 05958500)

$1.49

$

In Stock, only 3 left!

0

15

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 00130200

R H OUTER TINE SPOOL
(Superseded to 00238500)

$121.99

$

In Stock, only 1 left!

0

17

Ariens 00130100

L H OUTER TINE SPOOL
(Superseded to 00238400)

$

$

Not available

18

Ariens 05906800

BLT-HEX .38-16X2.00 PL GR2
(Superseded to 05963300)

$2.99

$

In Stock, Qty 9

0

19

Ariens 08300600

SG-COMP .045X.50X1.187
(Superseded to 08300028)

$4.99

$

In Stock, Qty 8

0

20

Ariens 00130600

DEPTH REGULATING PIN

$

$

Not available

21

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 05800900

PIN-ROLL .125X1.00

$0.99

$

In Stock, Qty 18

0

23

Ariens 00104700

DEPTH SHOE

$146.99

$

Usually ships in 4-12 days

0

24

Ariens 00103600

TAILBOARD
(Superseded to 00158959)

$155.99

$

Usually ships in 4-12 days

0

25

Ariens 00103700

TAILBOARD PIN

$66.99

$

Usually ships in 4-12 days

0

26

Ariens 06703400

PIN COTR .09X.50 PL
(Superseded to 06707400)

$0.99

$

Usually ships in 4-12 days

0

28

Ariens 07211900

V-BELT, 4L-WRAPPED

Note: (FORWARD)

$26.99

$

In Stock, only 2 left!

0

29

Ariens 07210600

V-BELT, 3L-COGGED

Note: (REVERSE)

$34.99

$

In Stock, Qty 8

0

30

Ariens 06601500

KEY-WDRF .125X.625X.250 SAE5

$2.49

$

In Stock, only 1 left!

0

31

Ariens 00138800

ENGINE SHEAVE

$113.99

$

Usually ships in 4-12 days

0

32

Ariens 07501300

GRIP

$

$

Not available

35

Ariens 06601100

KEY-FTHR .188X1.25X.187 SAE

$8.49

$

In Stock, Qty 7

0

37

Ariens 06501900

NUT-LK-TOP .437-14 GR C PL
(Superseded to 06536400)

$2.99

$

Usually ships in 4-12 days

0

38

Ariens 05902600

BLT-HEX .44-14X1.00 GR5
(Superseded to 05958700)

$2.99

$

In Stock, only 1 left!

0

39

Ariens 00208500

L H TURBO-TINE
(Superseded to 00238051)

$27.99

$

Usually ships in 4-12 days

0

39

Ariens 00208400

R H TURBO-TINE
(Superseded to 00238151)

$

$

Not available

41

Ariens 00125200

DUST CAP

$26.99

$

In Stock, Qty 5

0

49

Ariens 06001400

SCR-SET .25-20X.25 SKHCUPNY OH
(Superseded to 06005400)

$3.99

$

Usually ships in 4-12 days

0

50

Ariens 05900800

BLT-HEX .44-14X2.00 PL GR2

$

$

Not available

51

Ariens 00126700

CLIP

$15.99

$

Usually ships in 4-12 days

0

53

Ariens 06513200

NUT-LK .437-14 GR A PL
(Superseded to 06536400)

$2.99

$

Usually ships in 4-12 days

0

54

Ariens 05906900

BLT-HEX .31-18X1.25 PL GR2
(Superseded to 05947500)

$2.49

$

In Stock, only 2 left!

0

55

Ariens 05919200

BLT-HEX .31-18X3.50 PL GR2
(Superseded to 05948000)

$2.49

$

Usually ships in 4-12 days

0

57

Ariens 08300500

SG-COMP .080X.97X2.18 WLD14

$14.99

$

In Stock, only 1 left!

0

58

Ariens 00103900

TILLER JAW CLUTCH

$147.99

$

Usually ships in 4-12 days

0

59

Ariens 50101200

TINE HOOD W/DECALS

Note: (5 H.P.)

$

$

Not available
