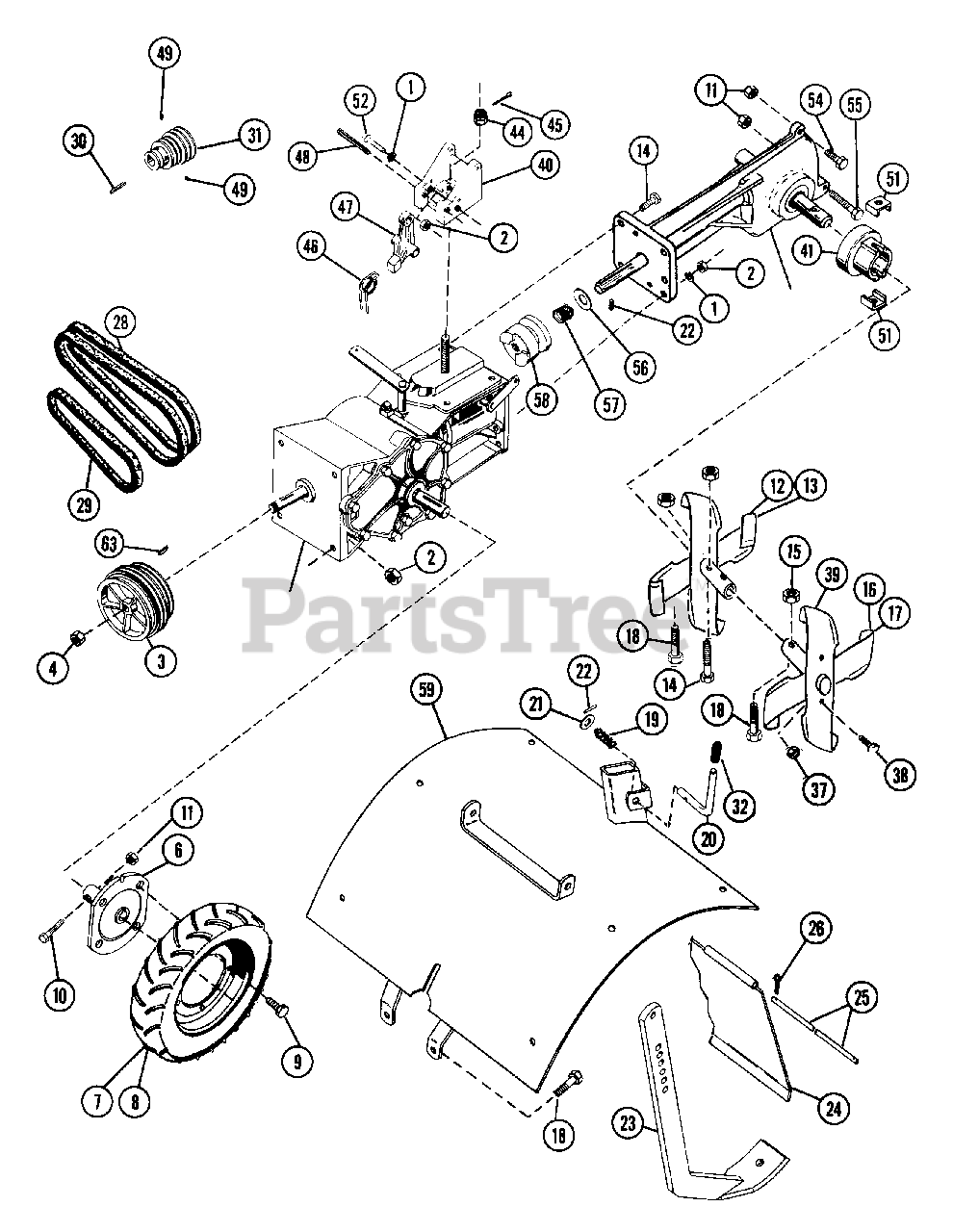

901012 (RT 7020) - Ariens 20" Rear Tine Tiller, 7hp Tecumseh (SN: 000101 & Above) Tine & Drive Assembly Parts Diagram

20" Rear Tine Tiller, 7hp Tecumseh

Tine & Drive Assembly Parts Diagram

  • Title

1

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$3.49

$

In Stock, Qty 10

0

2

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, only 1 left!

0

3

Ariens 00139400

DRIVE SHEAVE

$

$

Not available

4

Ariens 06503000

NUT-LK-CTR .75-16 PL
(Superseded to 06536900)

$5.99

$

In Stock, Qty 8

0

4

Ariens 06503000

NUT-LK-CTR .75-16 PL
(Superseded to 06536900)

$5.99

$

In Stock, Qty 8

0

5

Ariens 06601000

KEY-FTHR .25X1.875X.25 SAE

$4.99

$

Usually ships in 4-12 days

0

6

Ariens 00122600

WHEEL HUB
(Superseded to 00122651)

$60.99

$

In Stock, only 1 left!

0

7

Ariens 60101500

R H TIRE AND RIM ASSY
(Superseded to 07115900)

$

$

Not available

8

Ariens 60101600

L H TIRE AND RIM ASSY
(Superseded to 07116000)

$

$

Not available

8

Ariens 07111100

TIRE

$

$

Not available

8

Ariens 07107600

WHL

$67.99

$

In Stock, only 1 left!

0

9

Ariens 07003200

BLT-WHL .50-20X.75 GR5 PL
(Superseded to 07416900)

$13.99

$

In Stock, only 3 left!

0

10

Ariens 05905700

BLT-HEX .31-18X2.00 PL GR2
(Superseded to 05957200)

$1.49

$

In Stock, Qty 12

0

11

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 00125800

R H INNER TINE SPOOL
(Superseded to 50203100)

$

$

Not available

13

Ariens 00125900

L H INNER TINE SPOOL
(Superseded to 00238300)

$94.99

$

In Stock, only 1 left!

0

14

Ariens 05902700

BLT-HEX .38-16X1.75 PL GR2
(Superseded to 05958500)

$1.49

$

In Stock, only 4 left!

0

15

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 00130200

R H OUTER TINE SPOOL
(Superseded to 00238500)

$121.99

$

In Stock, only 1 left!

0

17

Ariens 00130100

L H OUTER TINE SPOOL
(Superseded to 00238400)

$

$

Not available

18

Ariens 05906800

BLT-HEX .38-16X2.00 PL GR2
(Superseded to 05963300)

$2.99

$

In Stock, Qty 12

0

19

Ariens 08300600

SG-COMP .045X.50X1.187
(Superseded to 08300028)

$4.99

$

In Stock, Qty 8

0

20

Ariens 00130600

DEPTH REGULATING PIN

$

$

Not available

21

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 14

0

22

Ariens 05800900

PIN-ROLL .125X1.00

$0.99

$

In Stock, Qty 18

0

23

Ariens 00104700

DEPTH SHOE

$146.99

$

Usually ships in 4-12 days

0

24

Ariens 00103600

TAILBOARD
(Superseded to 00158959)

$155.99

$

Usually ships in 4-12 days

0

25

Ariens 00103700

TAILBOARD PIN

$66.99

$

Usually ships in 4-12 days

0

26

Ariens 06703400

PIN COTR .09X.50 PL
(Superseded to 06707400)

$0.99

$

Usually ships in 4-12 days

0

28

Ariens 07204600

V-BELT, SAE 380-RAW EDGE (SET)

Note: (MATCHED SET)(FORWARD)

$70.99

$

In Stock, only 2 left!

0

29

Ariens 07210600

V-BELT, 3L-COGGED

Note: (REVERSE)

$34.99

$

In Stock, Qty 8

0

30

Ariens 06603400

KEY-SQ .25 X 1.25 X .25 SAE

$3.99

$

In Stock, only 1 left!

0

31

Ariens 00139500

ENGINE SHEAVE

$

$

Not available

32

Ariens 07501300

GRIP

$

$

Not available

35

Ariens 06601100

KEY-FTHR .188X1.25X.187 SAE

$8.49

$

In Stock, Qty 7

0

37

Ariens 06601100

KEY-FTHR .188X1.25X.187 SAE

$8.49

$

In Stock, Qty 7

0

38

Ariens 05902600

BLT-HEX .44-14X1.00 GR5
(Superseded to 05958700)

$2.99

$

In Stock, only 1 left!

0

39

Ariens 00208500

L H TURBO-TINE
(Superseded to 00238051)

$27.99

$

Usually ships in 4-12 days

0

39

Ariens 00208400

R H TURBO-TINE
(Superseded to 00238151)

$

$

Not available

40

Ariens 00110600

HANDLEBAR BRACKET
(Superseded to 00158800)

$

$

Not available

41

Ariens 00125200

DUST CAP

$26.99

$

In Stock, Qty 6

0

44

Ariens 06505000

NUT-SL .50-13

$3.99

$

Usually ships in 4-12 days

0

45

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 12

0

46

Ariens 08300300

SG-TORS .109X.88X2.25

$34.99

$

Usually ships in 4-12 days

0

47

Ariens 00102600

LATCH

$

$

Not available

48

Ariens 05801300

PIN-ROLL .313X2.00

$2.99

$

Usually ships in 4-12 days

0

49

Ariens 06001200

SCR-SET .32-18X.38 SKHCUPNL OH
(Superseded to 06005500)

$2.99

$

In Stock, Qty 17

0

51

Ariens 00126700

CLIP

$15.99

$

Usually ships in 4-12 days

0

52

Ariens 05900400

BLT-HEX .38-16X1.00 PL
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

54

Ariens 05906900

BLT-HEX .31-18X1.25 PL GR2
(Superseded to 05947500)

$2.49

$

In Stock, only 2 left!

0

55

Ariens 05919200

BLT-HEX .31-18X3.50 PL GR2
(Superseded to 05948000)

$2.49

$

Usually ships in 4-12 days

0

56

Ariens 06403300

WSHR-FL-STL .755X1.375X.125

$3.99

$

In Stock, only 1 left!

0

57

Ariens 08300500

SG-COMP .080X.97X2.18 WLD14

$14.99

$

In Stock, only 1 left!

0

58

Ariens 00103900

TILLER JAW CLUTCH

$147.99

$

Usually ships in 4-12 days

0

59

Ariens 50101300

TINE HOOD W/DECALS

Note: (7 H.P.)

$

$

Not available
