901012 (RT 7020) - Ariens 20" Rear Tine Tiller, 7hp Tecumseh (SN: 000101 & Above) Weight And Frame Assembly Parts Diagram

20" Rear Tine Tiller, 7hp Tecumseh

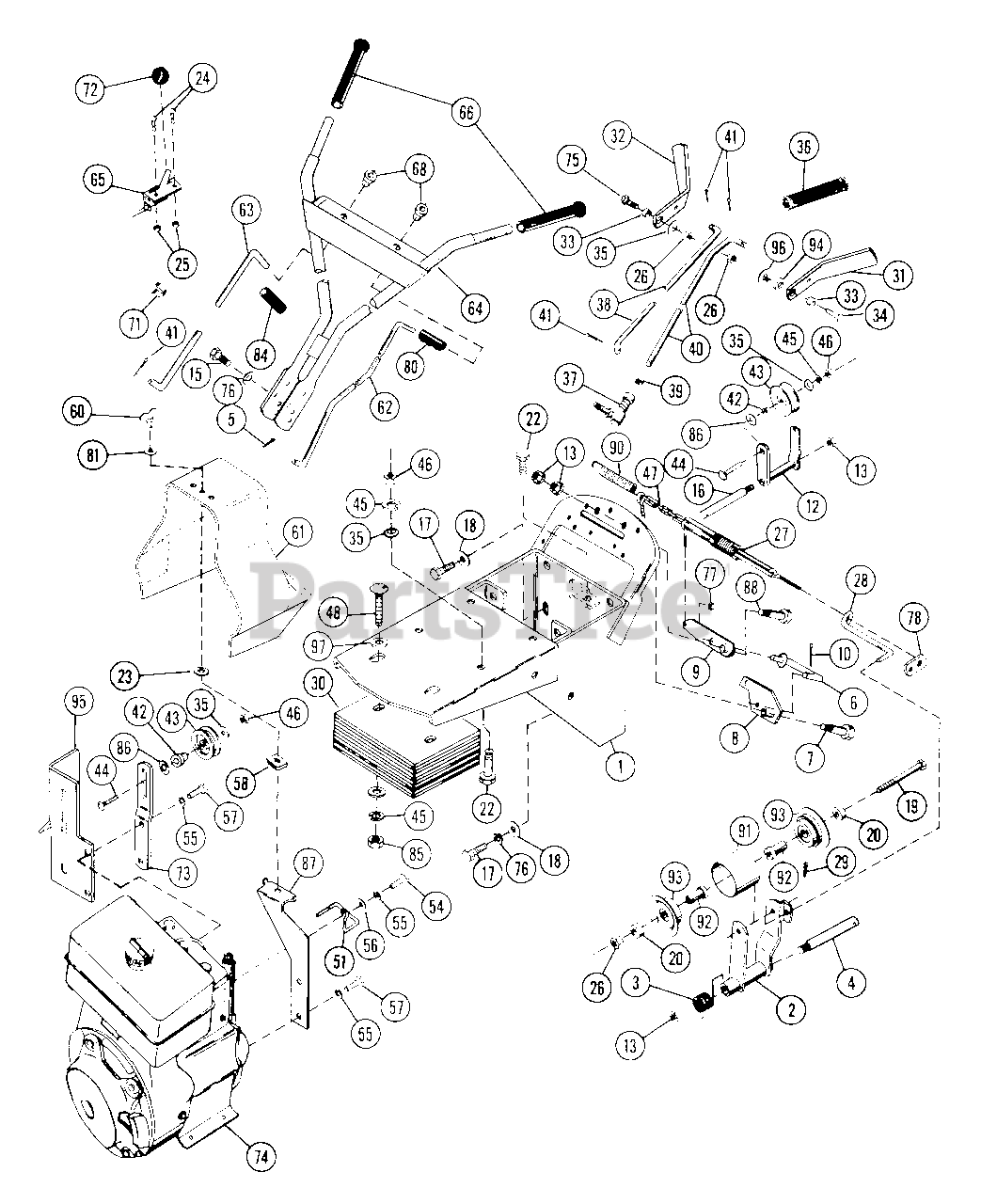

Weight And Frame Assembly Parts Diagram

  • Title

1

Ariens 00137500

FRAME

$

$

Not available

2

Ariens 00137600

IDLER ARM

$

$

Not available

3

Ariens 08310600

SG-TORS .076X.89X1.98

$

$

Not available

4

Ariens 00137700

IDLER PIN

$

$

Not available

5

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$1.49

$

In Stock, Qty 10

0

6

Ariens 00138000

CLUTCH LINK

$

$

Not available

7

Ariens 00302800

SHOULDER BOLT
(Superseded to 03535600)

$

$

Not available

8

Ariens 00138200

CLUTCH BELLCRANK

$

$

Not available

9

Ariens 00137800

SPRING ARM

$

$

Not available

10

Ariens 06700200

PIN-COTR .09X1.0 PL

$1.49

$

Usually ships in 4-12 days

0

11

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.99

$

In Stock, Qty 20+

0

12

Ariens 00138100

IDLER ARM

$

$

Not available

13

Ariens 06508000

NUT-LK-FLG .375-16 PL

$5.49

$

Usually ships in 4-12 days

0

14

Ariens 00302800

SHOULDER BOLT
(Superseded to 03535600)

$

$

Not available

15

Ariens 05900400

BLT-HEX .38-16X1.00 PL
(Superseded to 05948700)

$2.49

$

In Stock, Qty 20+

0

16

Ariens 00137700

IDLER PIN

$

$

Not available

17

Ariens 05900500

BLT-HEX .38-16X1.25 PL GR 2
(Superseded to 05958000)

$2.49

$

In Stock, Qty 20+

0

18

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$2.49

$

In Stock, Qty 20+

0

19

Ariens 05910100

BLT-HEX .31-18X3.75 PL GR2
(Superseded to 05901936)

$4.99

$

Usually ships in 4-12 days

0

20

Ariens 00211100

BSHG, SPCR.500X.750X.321 PM

$4.99

$

In Stock, Qty 20+

0

22

Ariens 07401700

SCR-TAP .312-18X.75 HWH PL TR
(Superseded to 07414400)

$2.49

$

In Stock, Qty 12

0

23

Ariens 07005000

NUT-RETNR

$5.49

$

Usually ships in 4-12 days

0

24

Ariens 06101200

SCR-MCH 10-24X.50 SLRH PL
(Superseded to 06117600)

$3.49

$

Usually ships in 4-12 days

0

25

Ariens 06505100

NUT-KEPS 10-24 PL
(Superseded to 06536600)

$1.49

$

In Stock, only 3 left!

0

26

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$2.49

$

In Stock, Qty 20+

0

27

Ariens 00126600

CLUTCH SPRING

$156.99

$

Usually ships in 4-12 days

0

28

Ariens 00126400

CLUTCH LINK

$100.99

$

Usually ships in 4-12 days

0

29

Ariens 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$1.49

$

In Stock, Qty 7

0

30

Ariens 00129500

WEIGHT WAFER

$

$

Not available

31

Ariens 00104200

DRIVE CLUTCH HANDLE
(Superseded to 00104259)

$

$

Not available

32

Ariens 00104300

TILLER CLUTCH HANDLE
(Superseded to 00104359)

$

$

Not available

33

Ariens 00607100

SPACER BUSHING .5 X .32 X .21

$

$

Not available

34

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$2.49

$

In Stock, Qty 20+

0

35

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$2.49

$

In Stock, Qty 20+

0

36

Ariens 07509400

GRIP

$

$

Not available

37

Ariens 00306000

SNAP IN BALL JOINT

$

$

Not available

38

Ariens 00111500

DRIVE CLUTCH ROD

$51.99

$

Usually ships in 4-12 days

0

39

Ariens 06503100

NUT-HEX .312-24 PL
(Superseded to 06529500)

$3.49

$

Usually ships in 4-12 days

0

40

Ariens 00104400

TILLER CLUTCH ROD

$

$

Not available

41

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$1.49

$

In Stock, Qty 20+

0

42

Ariens 01213100

SPCR, BRG .315X.50X.688X.281

$4.99

$

In Stock, only 3 left!

0

43

Ariens 01213200

IDLER
(Superseded to 52007000)

$47.99

$

In Stock, Qty 16

0

44

Ariens 06202200

BLT-RDHDSQNK .31-18X1.38SHT PL
(Superseded to 06212100)

$2.49

$

In Stock, Qty 9

0

45

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$1.49

$

In Stock, Qty 20+

0

46

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06500938)

$1.99

$

In Stock, Qty 7

0

47

Ariens 00138300

CLUTCH CHAIN

$

$

Not available

48

Ariens 06205600

BLT-RDHDSQNK .38-16X1.50 PL
(Superseded to 06224200)

$5.49

$

In Stock, Qty 20+

0

51

Ariens 00139600

BELT FINGER

$

$

Not available

54

Ariens 05906400

BLT-HEX .31-24X1.00 PL GR5
(Superseded to 05963600)

$3.49

$

Usually ships in 4-12 days

0

55

Ariens 06301800

WSHR-LK-INT .313X.030 PL
(Superseded to 06310500)

$1.49

$

In Stock, Qty 8

0

56

Ariens 06304700

WSHR-LOCK M 6MM STD

$

$

Not available

57

Ariens 05903600

BLT-HEX .31-24X.50 GR5
(Superseded to 05962700)

$

$

Not available

58

Ariens 07004900

NUT-SPEED 1/4 TURN SOUTHCO

$

$

Not available

60

Ariens 07005100

SCR-WING .25 TURN SOUTHCO

$18.99

$

Usually ships in 4-12 days

0

61

Ariens 00137000

BELT COVER

$

$

Not available

62

Ariens 00139100

CLUTCH ROD

$

$

Not available

63

Ariens 00131400

POSITION ROD

$

$

Not available

64

Ariens 00130900

HANDLEBAR

$

$

Not available

65

Ariens 06913100

THROTTLE CONTROL

$

$

Not available

66

Ariens 07507700

HANDLEGRIP

$

$

Not available

68

Ariens 07501200

SNAP BUSHING
(Superseded to 07511200)

$2.49

$

In Stock, Qty 5

0

71

Ariens 07516000

BUTTON BUMPER

$1.99

$

In Stock, Qty 10

0

72

Ariens 07510100

KNOB, CONTROL-THROTTLE

$

$

Not available

73

Ariens 00139000

REVERSE IDLER BRACKET

$

$

Not available

74

ENGINE

$

$

Not available

76

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$5.49

$

In Stock, Qty 16

0

77

Ariens 06512600

NUT-LK 8-32 GR A PL

$

$

Not available

78

Ariens 00126500

RETAINING NUT

$10.99

$

Usually ships in 4-12 days

0

79

Ariens 00123800

CLUTCH ROD
(Superseded to 00131300)

$

$

Not available

80

Ariens 07509900

GRIP
(Superseded to 07514700)

$

$

Not available

81

Ariens 06400100

WSHR-FL-STL .250X.562X.049 PL
(Superseded to 06442300)

$2.99

$

Usually ships in 4-12 days

0

84

Ariens 07510200

GRIP
(Superseded to 07530200)

$2.99

$

Usually ships in 4-12 days

0

85

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$1.99

$

In Stock, Qty 20+

0

86

Ariens 01138400

BLADE, 21" MOWER

$

$

Not available

87

Ariens 00138900

BELT COVER BRACKET

$

$

Not available

88

Ariens 00137900

SHOULDER BOLT

$

$

Not available

89

Ariens 06700300

PIN-COTR .06X.50
(Superseded to 06712400)

$4.99

$

Usually ships in 4-12 days

0

90

Ariens 08318900

SG-TENS .039X.44X1.75 WLD 3.2

$21.99

$

Usually ships in 4-12 days

0

91

Ariens 00132800

SLEEVE

$37.99

$

Usually ships in 4-12 days

0

92

Ariens 00130300

BEARING SPACER

$23.99

$

Usually ships in 4-12 days

0

93

Ariens 00212500

IDLER

$56.99

$

Usually ships in 4-12 days

0

94

Ariens 00140300

SPACER
(Superseded to 02513500)

$

$

Not available

95

Ariens 00140100

HEAT SHIELD

$

$

Not available

96

Ariens 06412800

WSHR-FL-STL .344X1.375X.075 PL
(Superseded to 06446900)

$3.49

$

In Stock, Qty 5

0

97

Ariens 06403900

WSHR-FL-STL .630X1.005X.062 PL
(Superseded to 06436100)

$1.49

$

In Stock, Qty 20+

0

98

Ariens 05906900

BLT-HEX .31-18X1.25 PL GR2
(Superseded to 05947500)

$3.49

$

In Stock, Qty 12

0
