901013 (RT 8020) - Ariens 20" Rear Tine Tiller, 8hp Kohler (SN: 000101 & Above) Tiller Gear Case Assembly Parts Diagram

20" Rear Tine Tiller, 8hp Kohler

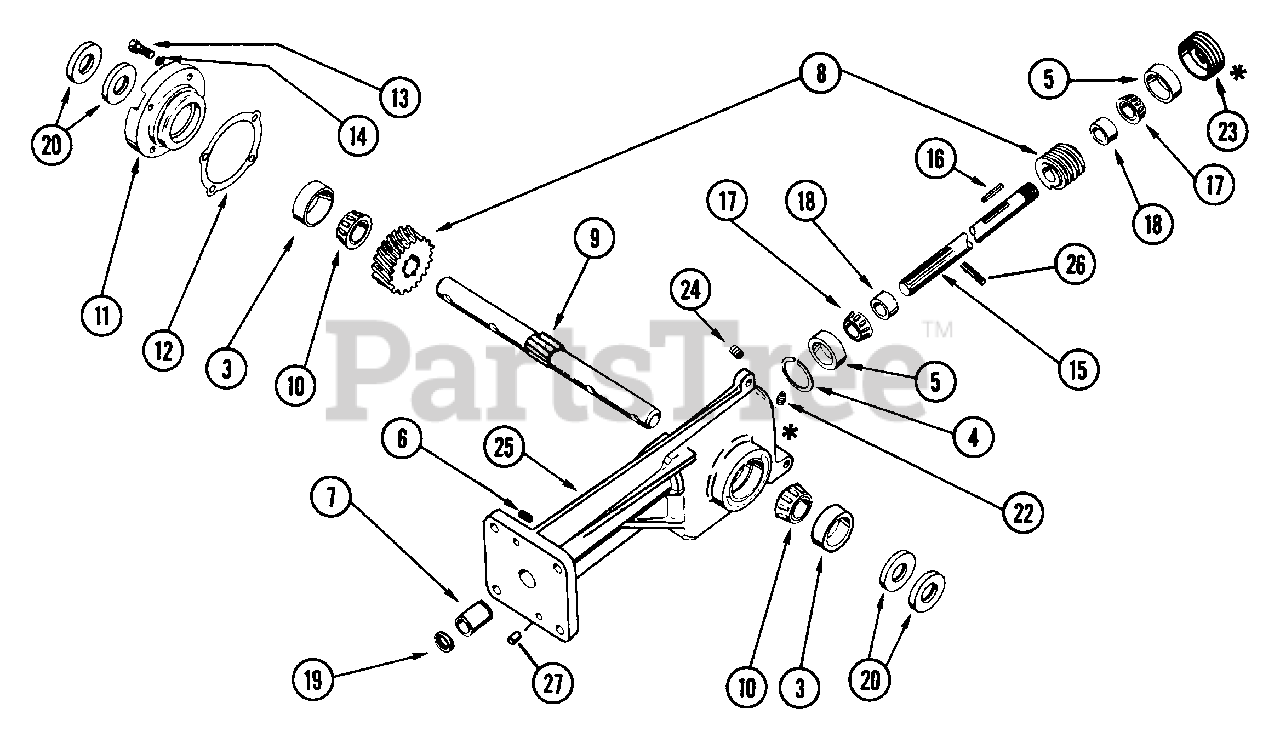

Tiller Gear Case Assembly Parts Diagram

  • Title

1

Ariens 60104600

TILLER GEARCASE - C.I.
(Superseded to 50102900)

$

$

Not available

3

Ariens 05404600

BRG-CUP 2.328X.465

$13.99

$

In Stock, Qty 14

0

4

Ariens 05707500

RG-RTNG-INT 1.781X.062

$9.49

$

In Stock, only 1 left!

0

5

Ariens 05404400

BRG-CUP 1.781X.475

$9.49

$

In Stock, Qty 20+

0

6

Ariens 00200900

BREATHER

$3.49

$

Usually ships in 4-12 days

0

7

Ariens 05402200

BRG-NEEDLE .750X1.0X.62

$24.99

$

In Stock, only 1 left!

0

8

Ariens 50101400

WORM AND WORM GEAR ASSEMBLY

$285.99

$

Usually ships in 4-12 days

0

9

Ariens 00132100

TINE SHAFT

$274.99

$

Usually ships in 4-12 days

0

10

Ariens 05404700

BRG-CONE 1.25X.66

$19.99

$

In Stock, Qty 11

0

11

Ariens 00132200

BEARING FLANGE

$79.99

$

Usually ships in 4-12 days

0

12

Ariens 50101000

SERVICE KIT

$47.99

$

In Stock, only 1 left!

0

13

Ariens 05914500

BLT-HEX .38-16X1.00 PL GR5
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$3.49

$

In Stock, Qty 10

0

15

Ariens 00102900

WORM SHAFT
(Superseded to 50103600)

$190.99

$

Usually ships in 4-12 days

0

16

Ariens 06601300

KEY-SQ .188X1.0X.188 SAE 8630

$1.49

$

In Stock, Qty 5

0

17

Ariens 05404500

BRG-CONE .750X.61

$22.99

$

In Stock, Qty 20+

0

18

Ariens 00200500

BSHG, SPCR .755X1.12X.50 PM

$7.49

$

In Stock, only 2 left!

0

19

Ariens 05604300

SEAL .750X1.000X.125

$5.99

$

In Stock, Qty 20+

0

20

Ariens 05602400

SEAL 1.250X2.00X.250

$15.99

$

In Stock, only 2 left!

0

22

Ariens 00113800

PIPE PLUG

$5.99

$

Usually ships in 4-12 days

0

23

Ariens 00107600

ADJUSTMENT PLUG

$65.99

$

In Stock, only 1 left!

0

24

Ariens 06001400

SCR-SET .25-20X.25 SKHCUPNY OH
(Superseded to 06005400)

$3.99

$

Usually ships in 4-12 days

0

25

Ariens 00131900

TILLER GEARCASE - C.I.

$

$

Not available

26

Ariens 05800900

PIN-ROLL .125X1.00

$0.99

$

In Stock, Qty 18

0

27

Ariens 05802000

PIN-GRV .375X1.00 TP C

$

$

Not available
