901015 (SRT 5020) - Ariens 20" Rear Tine Tiller, 5hp Tecumseh (SN: 000101 - 005000) Tiller Gear Case Assembly Parts Diagram

20" Rear Tine Tiller, 5hp Tecumseh

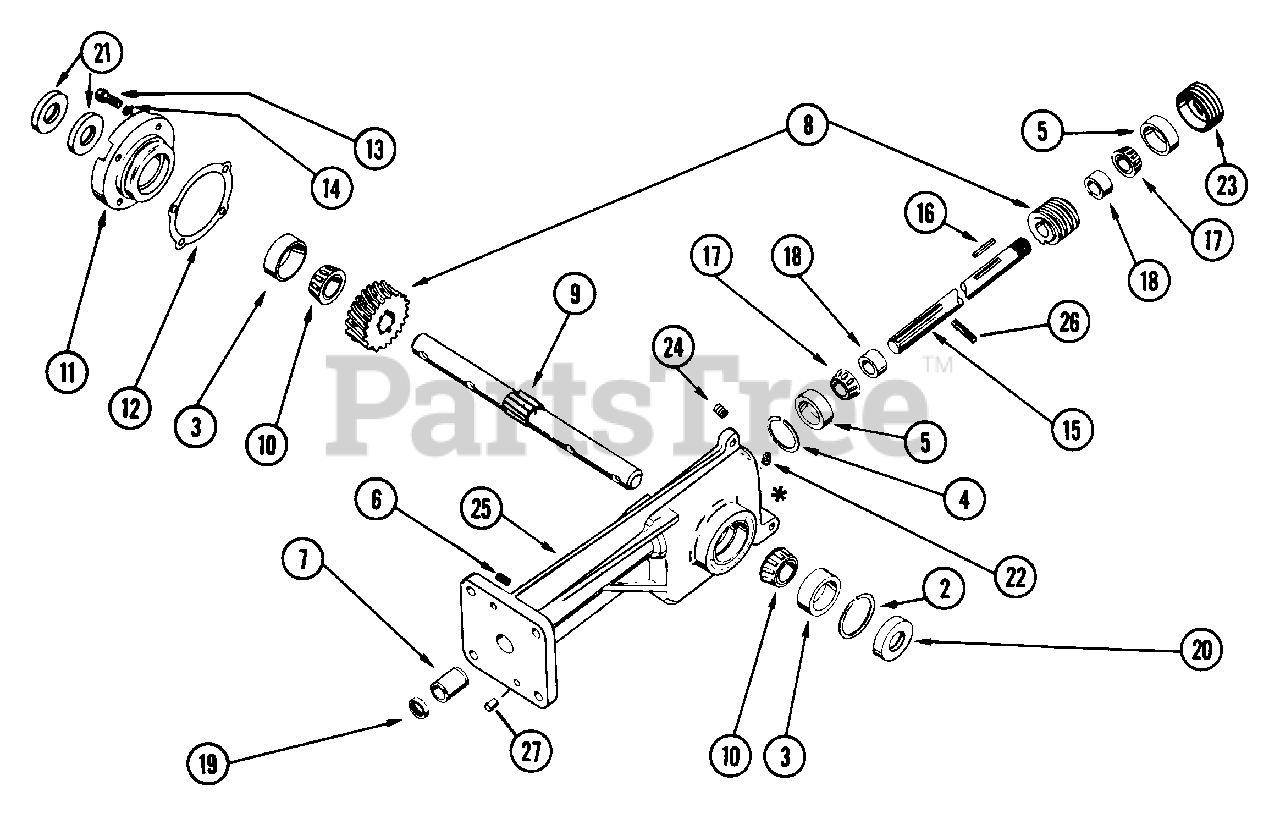

Tiller Gear Case Assembly Parts Diagram

  • Title

1

Ariens 60103400

TILLER GEARCASE ASSEMBLY
(Superseded to 50102600)

$

$

Not available

2

Ariens 05708200

RG-RTNG-INT 1.969X.062

$11.99

$

Usually ships in 4-12 days

0

3

Ariens 05407000

BRG-CUP1.980X.420

$18.99

$

In Stock, Qty 20+

0

4

Ariens 05707500

RG-RTNG-INT 1.781X.062

$9.99

$

In Stock, Qty 8

0

5

Ariens 05404400

BRG-CUP 1.781X.475

$11.99

$

In Stock, Qty 20+

0

6

Ariens 00200900

BREATHER

$

$

Not available

7

Ariens 05402200

BRG-NEEDLE .750X1.0X.62

$25.99

$

In Stock, only 1 left!

0

8

Ariens 50100200

WORM & WORM GEAR SERVICE ASSY

$274.99

$

Usually ships in 4-12 days

0

9

Ariens 00106600

TINE SHAFT

$171.99

$

Usually ships in 4-12 days

0

10

Ariens 05406900

BRG-CONE 1.0X.58

$20.99

$

In Stock, Qty 20+

0

11

Ariens 00112200

BEARING FLANGE

$

$

Not available

12

Ariens 50101000

SERVICE KIT

$50.99

$

In Stock, only 1 left!

0

13

Ariens 05914500

BLT-HEX .38-16X1.00 PL GR5
(Superseded to 05948700)

$1.99

$

In Stock, Qty 20+

0

14

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$4.99

$

In Stock, Qty 17

0

15

Ariens 00102900

WORM SHAFT
(Superseded to 50103600)

$193.99

$

Usually ships in 4-12 days

0

16

Ariens 06601300

KEY-SQ .188X1.0X.188 SAE 8630

$1.99

$

In Stock, Qty 5

0

17

Ariens 05404500

BRG-CONE .750X.61

$29.99

$

In Stock, only 3 left!

0

18

Ariens 00200500

BSHG, SPCR .755X1.12X.50 PM

$7.49

$

In Stock, Qty 11

0

19

Ariens 05604300

SEAL .750X1.000X.125

$6.99

$

In Stock, only 4 left!

0

20

Ariens 05606600

SEAL 1.000X1.980X.375

$17.99

$

In Stock, only 2 left!

0

21

Ariens 05605200

SEAL 1.000X1.785X.250

$17.99

$

In Stock, Qty 11

0

22

Ariens 00113800

PIPE PLUG

$6.49

$

Usually ships in 4-12 days

0

23

Ariens 00107600

ADJUSTMENT PLUG

$67.99

$

In Stock, only 1 left!

0

24

Ariens 06001400

SCR-SET .25-20X.25 SKHCUPNY OH
(Superseded to 06005400)

$3.99

$

Usually ships in 4-12 days

0

25

Ariens 00128600

TILLER GEARCASE - C.I.

$

$

Not available

26

Ariens 05800900

PIN-ROLL .125X1.00

$0.99

$

In Stock, only 4 left!

0

27

Ariens 05802000

PIN-GRV .375X1.00 TP C

$

$

Not available
