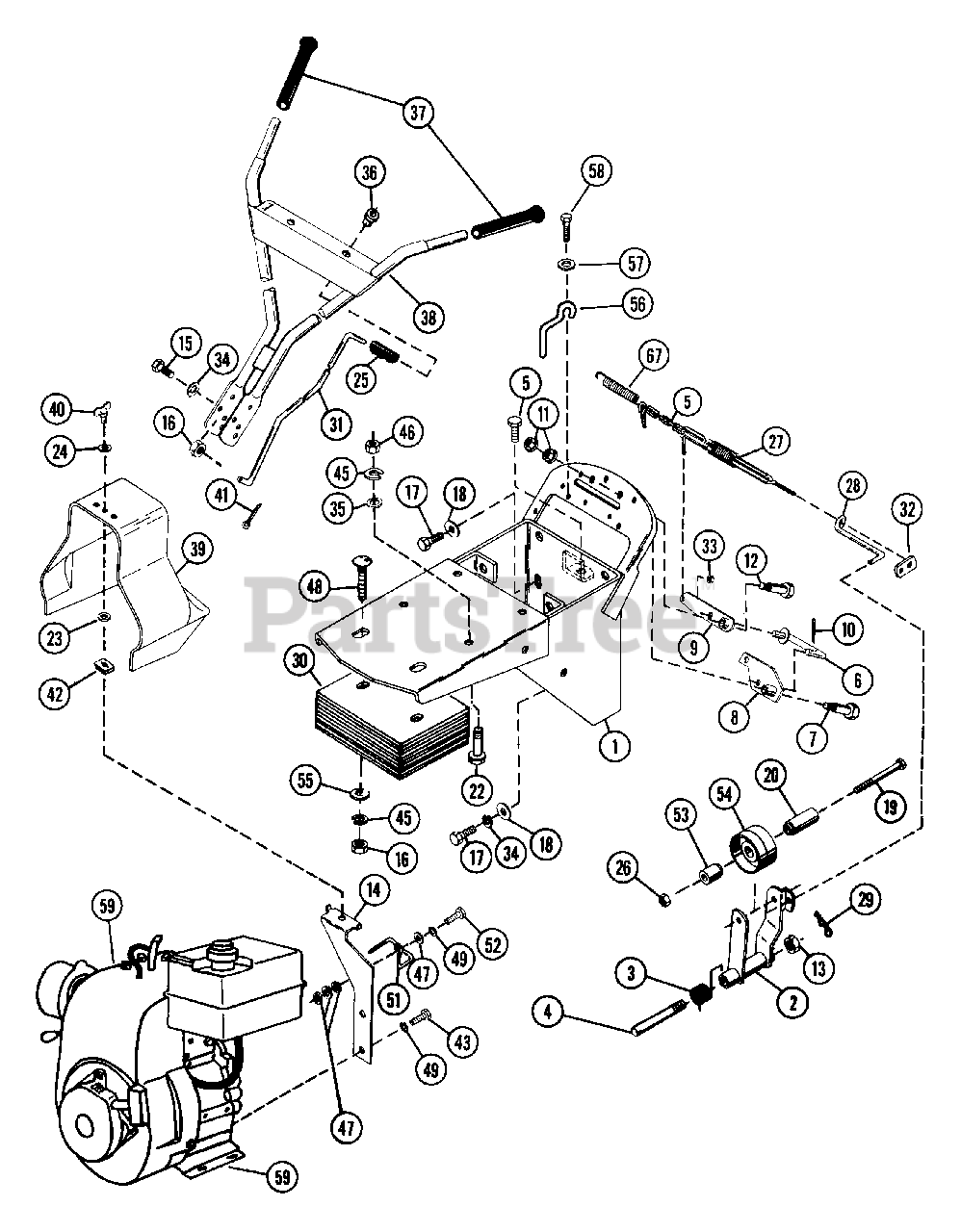

901015 (SRT 5020) - Ariens 20" Rear Tine Tiller, 5hp Tecumseh (SN: 000101 - 005000) Weight And Frame Assembly Parts Diagram

20" Rear Tine Tiller, 5hp Tecumseh

Weight And Frame Assembly Parts Diagram

  • Title

1

Ariens 00137500

FRAME

$

$

Not available

2

Ariens 00137600

IDLER ARM

$

$

Not available

3

Ariens 08310600

SG-TORS .076X.89X1.98

$

$

Not available

4

Ariens 00137700

IDLER PIN

$

$

Not available

5

Ariens 05900300

BLT-HEX .31-18X1.00 PL GR 2
(Superseded to 05946900)

$1.49

$

In Stock, Qty 8

0

6

Ariens 00138000

CLUTCH LINK

$

$

Not available

7

Ariens 00302800

SHOULDER BOLT
(Superseded to 03535600)

$22.99

$

Usually ships in 4-12 days

0

8

Ariens 00138200

CLUTCH BELLCRANK

$

$

Not available

9

Ariens 00137800

SPRING ARM

$

$

Not available

10

Ariens 06700200

PIN-COTR .09X1.0 PL

$0.99

$

Usually ships in 4-12 days

0

11

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 00137900

SHOULDER BOLT

$

$

Not available

13

Ariens 06508000

NUT-LK-FLG .375-16 PL

$3.99

$

Usually ships in 4-12 days

0

14

Ariens 00138900

BELT COVER BRACKET

$

$

Not available

15

Ariens 05900400

BLT-HEX .38-16X1.00 PL
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, only 2 left!

0

17

Ariens 05900500

BLT-HEX .38-16X1.25 PL GR 2
(Superseded to 05958000)

$1.49

$

In Stock, Qty 7

0

18

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 05910100

BLT-HEX .31-18X3.75 PL GR2
(Superseded to 05901936)

$2.99

$

In Stock, only 1 left!

0

20

Ariens 00141000

SPACER-SHOULDER

$

$

Not available

22

Ariens 05900300

BLT-HEX .31-18X1.00 PL GR 2
(Superseded to 05946900)

$1.49

$

In Stock, Qty 8

0

23

Ariens 07005000

NUT-RETNR

$3.99

$

Usually ships in 4-12 days

0

24

Ariens 06400100

WSHR-FL-STL .250X.562X.049 PL
(Superseded to 06442300)

$1.99

$

In Stock, only 2 left!

0

25

Ariens 07509900

GRIP
(Superseded to 07514700)

$

$

Not available

26

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

27

Ariens 00126600

CLUTCH SPRING

$140.99

$

Usually ships in 4-12 days

0

28

Ariens 00126400

CLUTCH LINK

$90.99

$

Usually ships in 4-12 days

0

29

Ariens 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 10

0

30

Ariens 00129500

WEIGHT WAFER

Note: (COUNTERWEIGHT)

$6.65

$

Usually ships in 4-12 days

0

31

Ariens 00139100

CLUTCH ROD

$

$

Not available

32

Ariens 00126500

RETAINING NUT

$9.49

$

Usually ships in 4-12 days

0

33

Ariens 06512600

NUT-LK 8-32 GR A PL

$

$

Not available

34

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$3.49

$

In Stock, Qty 10

0

35

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 14

0

36

Ariens 07501200

SNAP BUSHING
(Superseded to 07511200)

$1.49

$

In Stock, only 3 left!

0

37

Ariens 07507700

HANDLEGRIP

$

$

Not available

38

Ariens 00141400

HANDLEBAR

$

$

Not available

39

Ariens 00137000

BELT COVER

$

$

Not available

40

Ariens 07005100

SCR-WING .25 TURN SOUTHCO

$14.99

$

Usually ships in 4-12 days

0

41

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 5

0

42

Ariens 07004900

NUT-SPEED 1/4 TURN SOUTHCO

$

$

Not available

43

Ariens 05903600

BLT-HEX .31-24X.50 GR5
(Superseded to 05962700)

$

$

Not available

45

Ariens 06302100

WSHR-LK .375X.094 MED PL
(Superseded to 06308800)

$0.99

$

In Stock, Qty 19

0

46

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

47

Ariens 06405700

WSHR-FL-STL .323X.625X.062 PL
(Superseded to 06436700)

$1.49

$

In Stock, only 2 left!

0

48

Ariens 06207500

BLT-RDHDSQNK .38-16X3.25 PL

$

$

Not available

49

Ariens 06301800

WSHR-LK-INT .313X.030 PL
(Superseded to 06310500)

$0.99

$

In Stock, only 3 left!

0

51

Ariens 00123300

FORWARD BELT FINGER

$77.99

$

In Stock, only 1 left!

0

52

Ariens 05906400

BLT-HEX .31-24X1.00 PL GR5
(Superseded to 05963600)

$2.49

$

Usually ships in 4-12 days

0

53

Ariens 00141100

SPACER .328X.625X.843

$

$

Not available

54

Ariens 07310800

IDLER-FLAT 2.25 X .38

$34.99

$

In Stock, only 3 left!

0

55

Ariens 06403900

WSHR-FL-STL .630X1.005X.062 PL
(Superseded to 06436100)

$0.99

$

In Stock, Qty 20+

0

56

Ariens 03533000

BELT FINGER

$

$

Not available

57

Ariens 06405700

WSHR-FL-STL .323X.625X.062 PL
(Superseded to 06436700)

$1.49

$

In Stock, only 2 left!

0

58

Ariens 07405200

SCR-TAP .250-20X.50 HXSLHDPL
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

59

ENGINE

$

$

Not available
