901017 (RT 7020) - Ariens 20" Rear Tine Tiller, 7hp Tecumseh (SN: 000101 & Above) Idler Linkage Parts Diagram

20" Rear Tine Tiller, 7hp Tecumseh

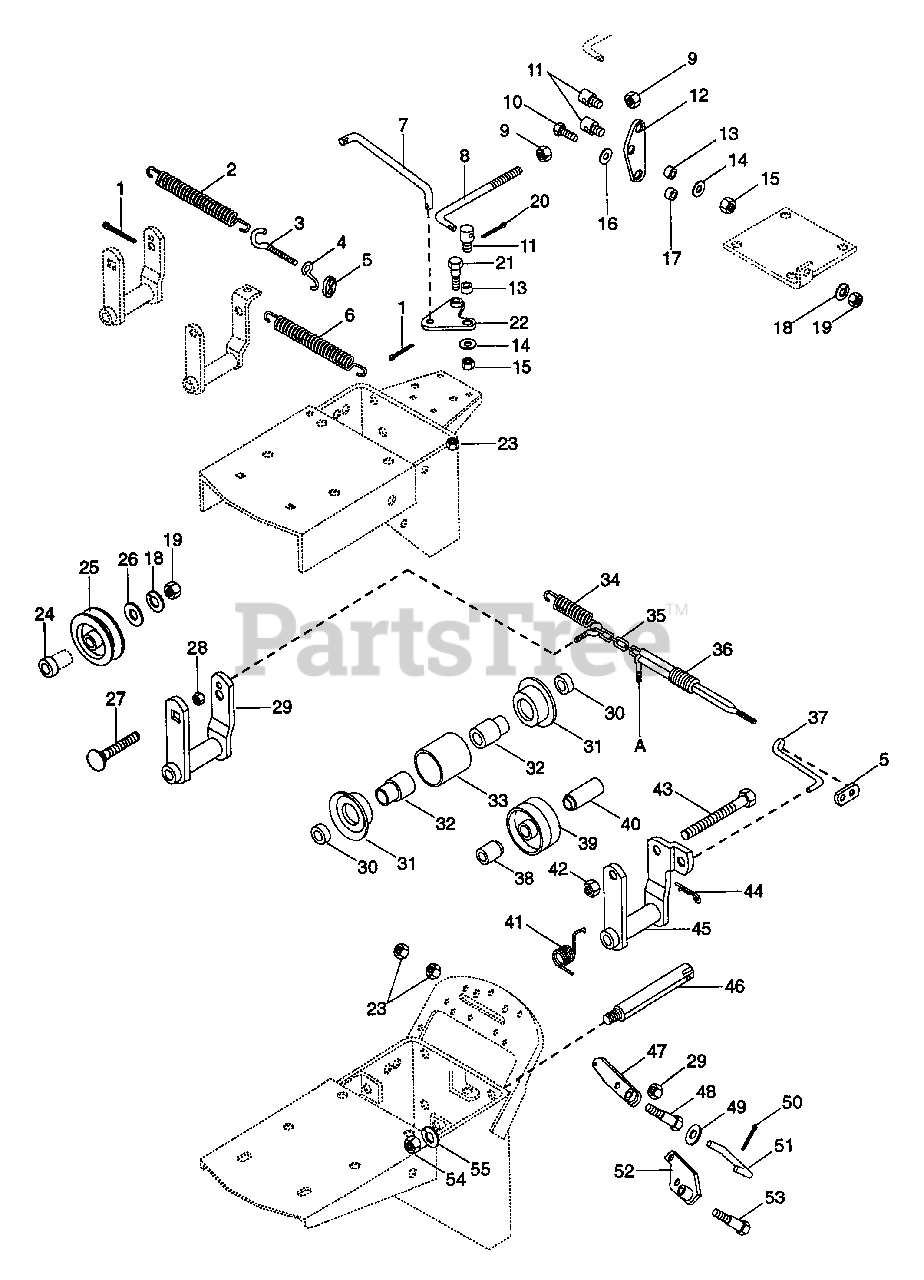

Idler Linkage Parts Diagram

  • Title

1

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 12

0

2

Ariens 08311700

SG-TENS .105X.812X3.88 WLD 15

Note: (901018, 418)

$7.99

$

In Stock, Qty 7

0

3

Ariens 00133800

EYE BOLT

Note: (901018, 418)

$30.99

$

Usually ships in 4-12 days

0

4

Ariens 00133700

LINK-CLUTCH

Note: (901018, 418)

$77.99

$

Usually ships in 4-12 days

0

5

Ariens 00126500

RETAINING NUT

$9.49

$

Usually ships in 4-12 days

0

6

Ariens 08302600

SG-TENS .063X.44X2.81 WLD 18

Note: (018,418)

$20.99

$

Usually ships in 4-12 days

0

7

Ariens 00133600

CROSS LINK

Note: (901018, 418)

$

$

Not available

8

Ariens 00134300

ROD

Note: (901018, 418)

$

$

Not available

9

Ariens 06500100

NUT-JAM .375-16 PL
(Superseded to 06500910)

$0.99

$

In Stock, Qty 12

0

10

Ariens 05900300

BLT-HEX .31-18X1.00 PL GR 2
(Superseded to 05946900)

$1.49

$

In Stock, Qty 8

0

11

Ariens 00145600

UNIVERSAL ROD ADAPTER

Note: (901018, 418)

$

$

Not available

12

Ariens 00133900

ARM

Note: (901018, 418)

$

$

Not available

13

Ariens 00134100

SPACER .63 X .50 X .18

Note: (901018, 418)

$

$

Not available

14

Ariens 06405800

WSHR-FL-STL .505X1.000X.062
(Superseded to 06439200)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 06504600

NUT-LK-CTR .50-13
(Superseded to 06536300)

$3.99

$

In Stock, only 3 left!

0

16

Ariens 06414500

WSHR-FL-STL .390X.750X.125 PL
(Superseded to 06444300)

$7.99

$

In Stock, Qty 9

0

17

Ariens 00607100

SPACER BUSHING .5 X .32 X .21

Note: (901018)

$14.99

$

Usually ships in 4-12 days

0

18

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, only 4 left!

0

19

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 16

0

20

Ariens 06701600

PIN-COTR .15 X 1.0 PL
(Superseded to 06712300)

$2.49

$

In Stock, only 4 left!

0

21

Ariens 00135700

BLT.SHLDR .38-16 X 1.25
(Superseded to 07023400)

Note: (901018, 418)

$34.99

$

In Stock, only 1 left!

0

22

Ariens 00135600

PIVOT LEVER

Note: (901018, 418)

$

$

Not available

23

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

24

Ariens 01036000

BEARING SPACER

Note: (901016)

$

$

Not available

24

Ariens 01213100

SPCR, BRG .315X.50X.688X.281

Note: (901017, 018, 019, 418)

$3.49

$

In Stock, Qty 6

0

25

Ariens 02457400

IDLER
(Superseded to 52007000)

$39.99

$

In Stock, Qty 15

0

26

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 14

0

27

Ariens 06202200

BLT-RDHDSQNK .31-18X1.38SHT PL
(Superseded to 06212100)

$1.49

$

In Stock, Qty 10

0

28

Ariens 06512600

NUT-LK 8-32 GR A PL

$

$

Not available

29

Ariens 00138100

IDLER ARM

Note: (901016, 017, 019)

$

$

Not available

29

Ariens 00135400

REVERSE IDLER ARM

Note: (901018, 418)

$

$

Not available

30

Ariens 00211100

BSHG, SPCR.500X.750X.321 PM

Note: (901017, 018, 019, 418)

$3.49

$

In Stock, Qty 20+

0

31

Ariens 00212500

IDLER

Note: (901017, 018, 019, 418)

$52.99

$

Usually ships in 4-12 days

0

32

Ariens 00130300

BEARING SPACER

Note: (901017, 018, 019, 418)

$21.99

$

Usually ships in 4-12 days

0

33

Ariens 00132800

SLEEVE

Note: (901017, 018, 019, 418)

$32.99

$

Usually ships in 4-12 days

0

34

Ariens 08318900

SG-TENS .039X.44X1.75 WLD 3.2

Note: (901016, 017, 019)

$20.99

$

Usually ships in 4-12 days

0

35

Ariens 00138300

CLUTCH CHAIN

Note: (901016, 017, 019)

$

$

Not available

36

Ariens 00126600

CLUTCH SPRING

Note: (901016, 017, 019)

$140.99

$

Usually ships in 4-12 days

0

37

Ariens 00126400

CLUTCH LINK

Note: (901016, 017, 019)

$90.99

$

Usually ships in 4-12 days

0

38

Ariens 00141100

SPACER .328X.625X.843

Note: (901016)

$

$

Not available

39

Ariens 07310800

IDLER-FLAT 2.25 X .38

Note: (901016)

$34.99

$

In Stock, only 3 left!

0

40

Ariens 00141000

SPACER-SHOULDER

Note: (901016)

$

$

Not available

41

Ariens 08310600

SG-TORS .076X.89X1.98

Note: (901016, 017, 019)

$

$

Not available

42

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

43

Ariens 05910100

BLT-HEX .31-18X3.75 PL GR2
(Superseded to 05901936)

Note: (901016, 017, 019)

$2.99

$

In Stock, only 1 left!

0

43

Ariens 05920400

BLT-HEX .31-18X4.00 PL GR2
(Superseded to 05963200)

Note: (901018, 418)

$3.99

$

Usually ships in 4-12 days

0

44

Ariens 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 10

0

45

Ariens 00137600

IDLER ARM

Note: (901016, 017, 019)

$

$

Not available

45

Ariens 00135200

IDLER ARM

Note: (901018, 418)

$

$

Not available

46

Ariens 00137700

IDLER PIN

Note: (901016, 017, 019)

$

$

Not available

46

Ariens 00135500

IDLER PIN

Note: (901018, 418)

$

$

Not available

47

Ariens 00137800

SPRING ARM

Note: (901016, 017, 019)

$

$

Not available

48

Ariens 00137900

SHOULDER BOLT

Note: (901016, 017, 019)

$

$

Not available

49

Ariens 06409000

WSHR-FL-STL .328X.875X.062 PL
(Superseded to 06439400)

$3.99

$

Usually ships in 4-12 days

0

50

Ariens 06700200

PIN-COTR .09X1.0 PL

$0.99

$

Usually ships in 4-12 days

0

51

Ariens 00138000

CLUTCH LINK

Note: (901016, 017, 019)

$

$

Not available

52

Ariens 00138200

CLUTCH BELLCRANK

Note: (901016, 017, 019)

$

$

Not available

53

Ariens 00302800

SHOULDER BOLT
(Superseded to 03535600)

Note: (901016, 017, 019)

$22.99

$

Usually ships in 4-12 days

0

54

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, only 2 left!

0

55

Ariens 06302100

WSHR-LK .375X.094 MED PL
(Superseded to 06308800)

$0.99

$

In Stock, Qty 19

0
