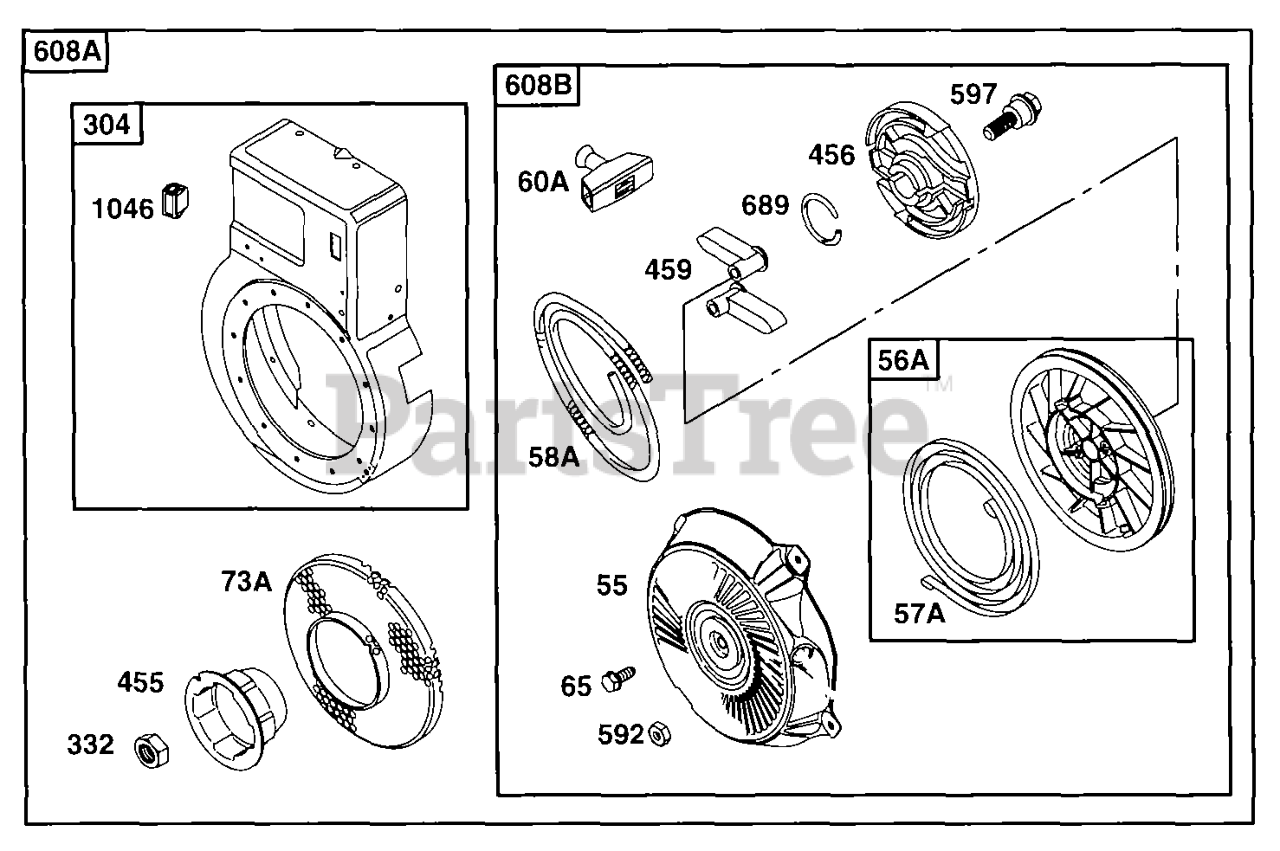

90102-0016-01 - Briggs & Stratton Horizontal Engine Blower Hsg, Rewind Assy Parts Diagram

Horizontal Engine

Blower Hsg, Rewind Assy Parts Diagram

  • Title

55

Briggs & Stratton 499441

Housing-Rewind Starter
(Superseded to 692144)

$45.99

$

Usually ships in 2-12 days

0

56A

Briggs & Stratton 499901

Pulley-Starter

$18.99

$

In Stock, Qty 5

0

57A

Briggs & Stratton 263074

Spring-Rewind Starter
(Superseded to 498144)

$19.99

$

In Stock, Qty 6

0

58A

Briggs & Stratton 280399

Rope, Starter (99" Cut To Required Length)
(Superseded to 280399S)

$5.99

$

In Stock, Qty 19

0

60A

Briggs & Stratton 281101

Grip-Starter Rope
(Superseded to 691915)

$6.49

$

In Stock, Qty 12

0

65

Briggs & Stratton 94904

Screw, Sem Hex Head
(Superseded to 690837)

$3.49

$

In Stock, Qty 18

0

73A

Briggs & Stratton 225381

Screen, Rotating
(Superseded to 699850)

$35.99

$

Usually ships in 2-12 days

0

304

Briggs & Stratton 692622

Housing-Blower

$83.99

$

Usually ships in 2-12 days

0

332

Briggs & Stratton 94877

Nut, Jam
(Superseded to 690662)

$5.99

$

In Stock, Qty 8

0

455

Briggs & Stratton 225502

Cup-Flywheel
(Superseded to 691236)

$11.99

$

Usually ships in 2-12 days

0

456

Briggs & Stratton 281503

Retainer-Spring
(Superseded to 692299)

$4.99

$

In Stock, Qty 20+

0

459

Briggs & Stratton 281505

Plate-Paul Friction
(Superseded to 281505S)

$3.49

$

In Stock, Qty 20+

0

592

Briggs & Stratton 94908

Nut, Hex Mach
(Superseded to 690800)

$3.99

$

In Stock, only 3 left!

0

597

Briggs & Stratton 94943

Screw, Shoulder Hex
(Superseded to 691696)

$11.99

$

In Stock, only 4 left!

0

608B

Briggs & Stratton 690101

Starter-Rewind

$63.99

$

In Stock, Qty 5

0

608A

Briggs & Stratton 690098

Starter-Rewind (Susa Replacement Kit)

$106.99

$

Usually ships in 2-12 days

0

689

Briggs & Stratton 260575

Spring-Throttle Adjustment
(Superseded to 691783)

$7.99

$

In Stock, only 2 left!

0

689

Briggs & Stratton 263073

Spring-Friction
(Superseded to 691855)

$4.49

$

In Stock, Qty 7

0

1046

Briggs & Stratton 281412

Plug-Blower Housing
(Superseded to 691337)

$6.49

$

Usually ships in 2-12 days

0
