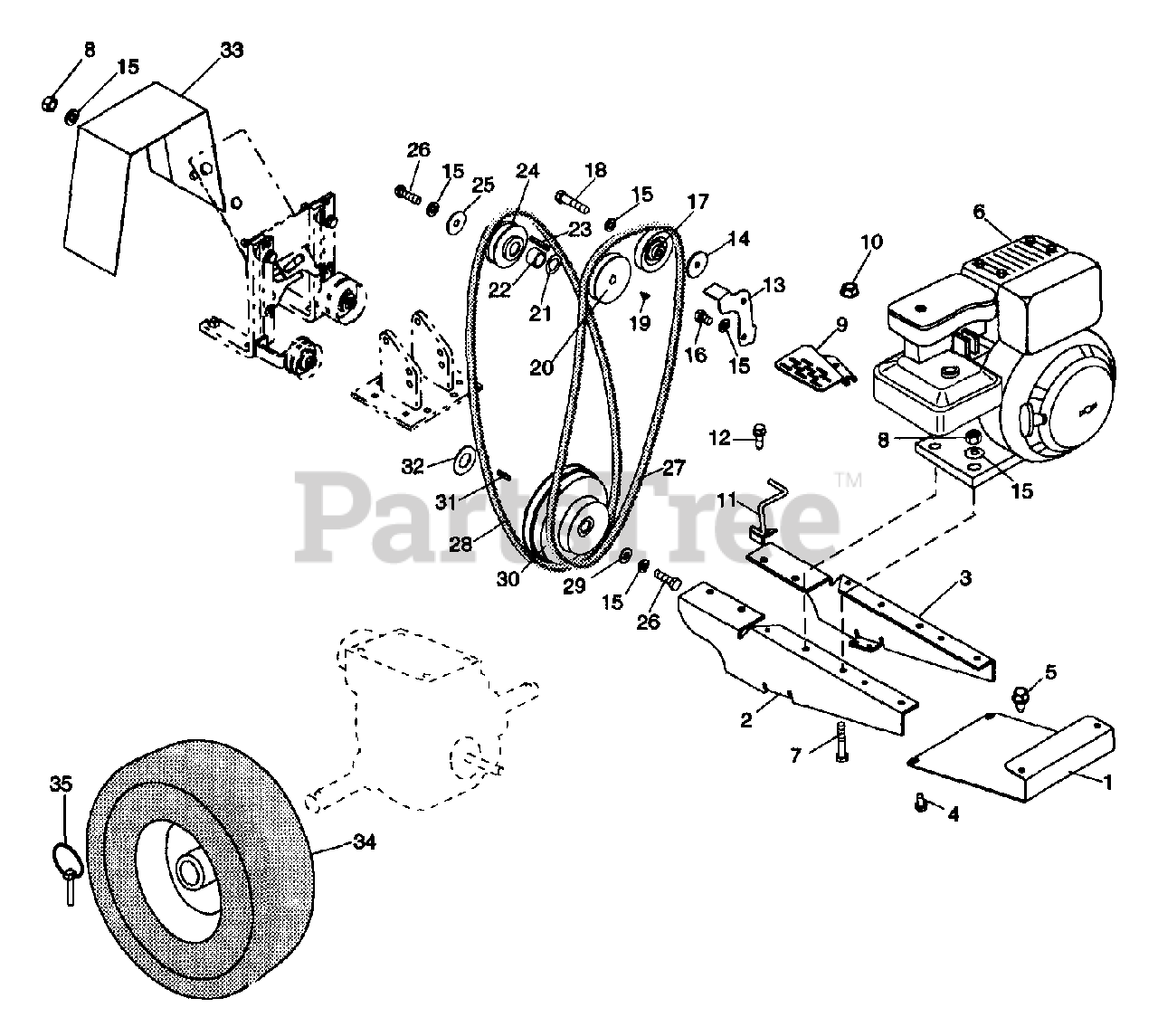

901020 (RT 5018 B) - Ariens 18" Rear Tine Tiller, 5hp Briggs & Stratton (SN: 000101 & Above) Drives Parts Diagram

18" Rear Tine Tiller, 5hp Briggs & Stratton

Drives Parts Diagram

  • Title

1

Ariens 00149000

COVER, ENGINE BRACKET

$

$

Not available

2

Ariens 00135800

RH ENGINE MOUNTING BRACKET

$

$

Not available

3

Ariens 00138700

LH ENGINE MOUNTING BRACKET

$

$

Not available

4

Ariens 07405200

SCR-TAP .250-20X.50 HXSLHDPL
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

5

Ariens 07401400

SCR-TAP .312-18X.50 HWH PL TR
(Superseded to 07411500)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 08225400

5 HP BRIGGS ENG 135292-0180-01

$

$

Not available

7

Ariens 05912800

BLT-HEX .31-18X1.75 GR5
(Superseded to 05957400)

$2.99

$

In Stock, Qty 12

0

8

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 16

0

9

Ariens 00234100

MUFFLER SHIELD

$

$

Not available

10

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.49

$

In Stock, only 3 left!

0

11

Ariens 00146700

BELT FINGER WELDMENT
(Superseded to 00157351)

$

$

Not available

12

Ariens 07402800

SCR-TAP .250-20X.75 HWH PL TR
(Superseded to 07400131)

$1.49

$

In Stock, Qty 11

0

13

Ariens 00142000

BELT FINGER

$

$

Not available

14

Ariens 06409900

WSHR-FL-STL .312X1.62X.13

$

$

Not available

15

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, only 4 left!

0

16

Ariens 05903600

BLT-HEX .31-24X.50 GR5
(Superseded to 05962700)

$

$

Not available

17

Ariens 07320300

IDLER-V 2.625X.312

$

$

Not available

18

Ariens 05918800

BLT-HEX .31-24X1.50 PL GR5
(Superseded to 05963500)

$2.49

$

Usually ships in 4-12 days

0

19

Ariens 06601500

KEY-WDRF .125X.625X.250 SAE5

$2.49

$

In Stock, only 1 left!

0

20

Ariens 00146400

SHEAVE REVERSE

$

$

Not available

21

Ariens 06413400

WSHR-HDND-THRST .758X1.23X.031

Note: (As Required)

$3.49

$

In Stock, only 2 left!

0

22

Ariens 00146600

SPACER .765X.875X.750

$

$

Not available

23

Ariens 06602300

KEY-SQ .188X1.5X.187 SAE 8630
(Superseded to 06609600)

$2.99

$

Usually ships in 4-12 days

0

24

Ariens 00146500

SHEAVE, FORWARD

$

$

Not available

25

Ariens 06407900

WSHR-FL-STL .344X1.125X.063PL
(Superseded to 06425500)

$2.49

$

In Stock, Qty 6

0

26

Ariens 05906400

BLT-HEX .31-24X1.00 PL GR5
(Superseded to 05963600)

$2.49

$

Usually ships in 4-12 days

0

27

Ariens 07224000

V-BELT, 3L-WRAPPED

$21.99

$

In Stock, only 1 left!

0

28

Ariens 07224100

V-BELT, 4L-WRAPPED

$21.99

$

Usually ships in 4-12 days

0

29

Ariens 06404400

WSHR-FL-STL .380X.875X.179 PL
(Superseded to 06439100)

$3.49

$

In Stock, only 2 left!

0

30

Ariens 00141800

SHEAVE - TRANSMISSION

$

$

Not available

31

Ariens 06601300

KEY-SQ .188X1.0X.188 SAE 8630

$1.49

$

In Stock, Qty 5

0

32

Ariens 06415100

WSHR-FL-STL .699X1.375X.059

Note: (As Required)

$

$

Not available

33

Ariens 00148400

BELT GUARD
(Superseded to 50104800)

$

$

Not available

34

Ariens 07134900

T/WHL ASSY RH

$

$

Not available

34

Ariens 07135000

T/WHL ASSY LH

$

$

Not available

34

Ariens 07135100

RIM-ASSY 1.75X3.13 SEE L-2080

$

$

Not available

34

Ariens 07113800

TIRE

$46.99

$

Usually ships in 4-12 days

0

35

Ariens 07015800

PIN-LOK .31X2.00

$6.99

$

In Stock, only 2 left!

0
