901022 (RT 4018 T) - Ariens 18" Rear Tine Tiller, 4hp Tecumseh (SN: 000101 & Above) Gear And Shafts Parts Diagram

18" Rear Tine Tiller, 4hp Tecumseh

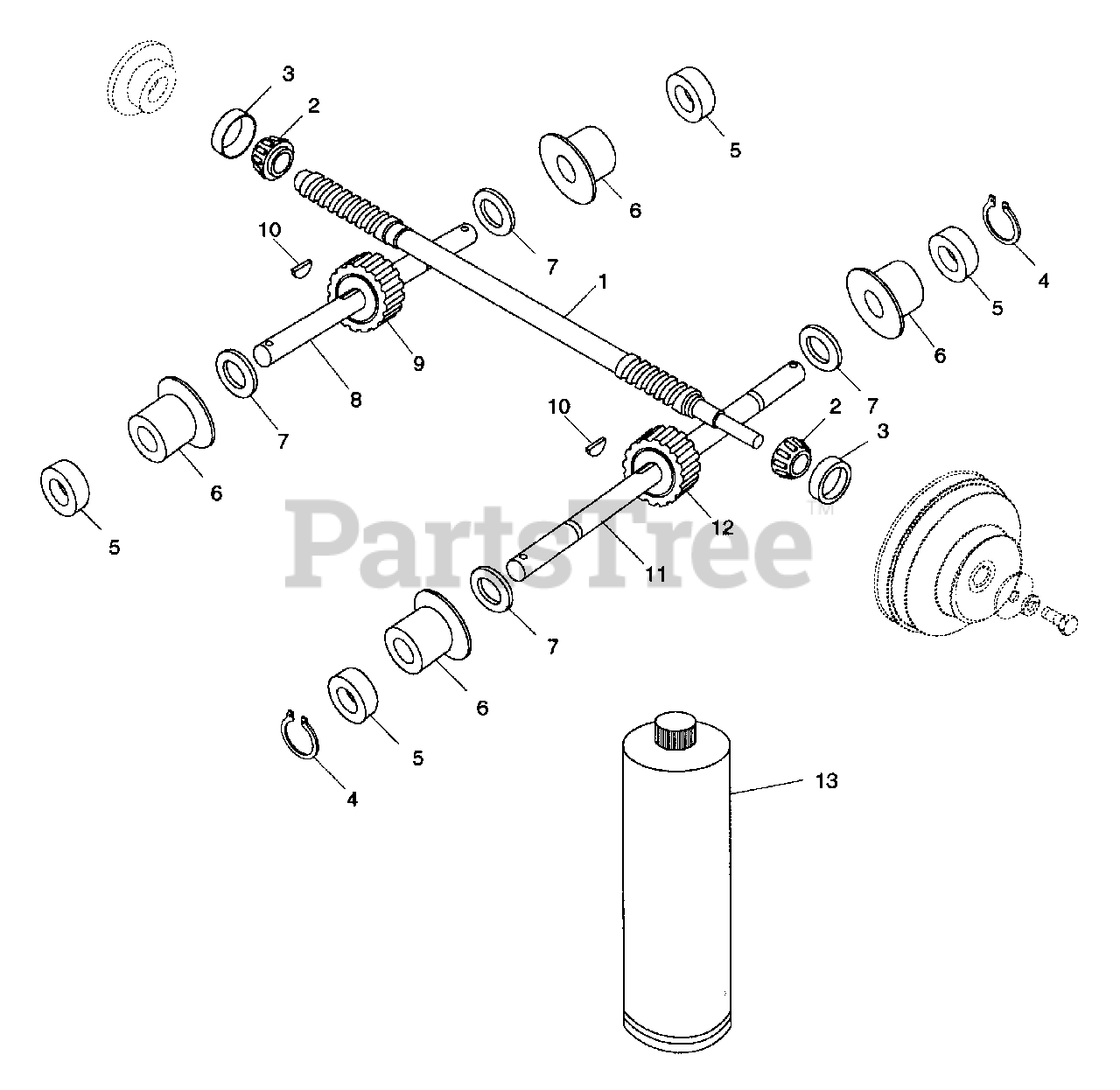

Gear And Shafts Parts Diagram

  • Title
1

Ariens 00152600

WORM SHAFT

$

$

Not available

2

Ariens 05404500

BRG-CONE .750X.61

$13.36

$

In Stock, Qty 14

0

3

Ariens 05404400

BRG-CUP 1.781X.475

$8.89

$

In Stock, Qty 14

0

4

Ariens 05716800

RG-RTNG .822X1.500X.050 TYP E

$2.12

$

Usually ships in 4-12 days

0

5

Ariens 05606100

SEAL 1.000X1.312X.150

$11.68

$

In Stock, Qty 13

0

6

Ariens 05520900

BSHG-FLG 1.000X1.125X1.875

$12.24

$

Usually ships in 4-12 days

0

7

Ariens 05421600

WSHR-HDND-THRUST 1.00X1.55X.03
(Superseded to 06435300)

$3.63

$

In Stock, Qty 17

0

8

Ariens 00151700

TINE SHAFT

$74.85

$

Usually ships in 4-12 days

0

9

Ariens 00151400

WORM GEAR

$141.37

$

In Stock, only 1 left!

0

10

Ariens 06600800

KEY-WDRF .25X.875X.375 SAE A

$3.63

$

In Stock, Qty 12

0

11

Ariens 00151800

WHEEL SHAFT

Note: (Used Only On Model(s): 021,023).

$100.56

$

Usually ships in 4-12 days

0

Ariens 00152800

WHEEL SHAFT - COMP. WHEEL

Note: (Used Only On Model(s): 022).

$

$

Not available

12

Ariens 00151200

WORM GEAR 61

$

$

Not available

13

Ariens 00008000

ARIENS 16 OZ.BOTTLE OF L2 LUBE
(Superseded to 00068800)

$17.83

$

In Stock, Qty 20+

0
