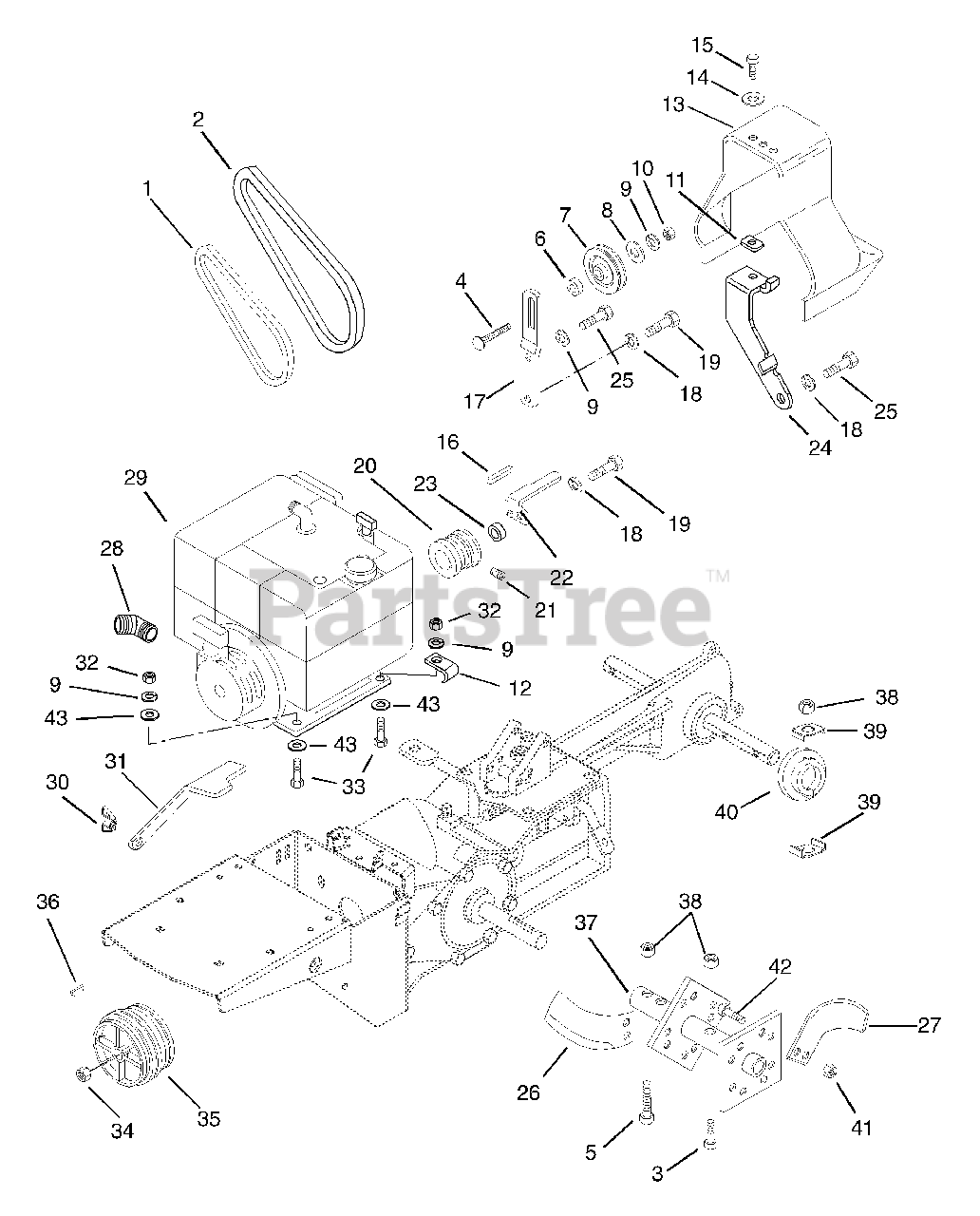

901024 (RT 8020) - Ariens 20" Rear Tine Tiller, 8hp Briggs & Stratton (SN: 000101 & Above) Belt Drive And Tines Parts Diagram

20" Rear Tine Tiller, 8hp Briggs & Stratton

Belt Drive And Tines Parts Diagram

  • Title

1

Ariens 07231600

V-BELT, SAE 380-RAW EDGE (SET)

$

$

Not available

2

Ariens 07212700

V-BELT, 3L-COGGED

$29.99

$

In Stock, only 2 left!

0

3

Ariens 05963100

BLT-HEX .38-16X2.00 GR8 YWZC
(Superseded to 05901810)

$3.49

$

In Stock, Qty 20+

0

4

Ariens 06212100

@BLT-RDHDSQNK .31-18X1.50 G5YZ
(Superseded to 06200233)

$1.99

$

In Stock, Qty 12

0

5

Ariens 05963000

BLT-HEX .38-16X2.75 GR8 YWZC
(Superseded to 05901813)

$1.99

$

In Stock, Qty 20+

0

6

Ariens 01213100

SPCR, BRG .315X.50X.688X.281

$3.99

$

In Stock, Qty 12

0

7

Ariens 02457400

IDLER
(Superseded to 52007000)

$40.99

$

In Stock, only 2 left!

0

8

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

9

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

11

Ariens 06513000

NUT-SPEED U-TYPE .250-20

$

$

Not available

12

Ariens 06909400

J-CLAMP

$3.99

$

In Stock, only 2 left!

0

13

Ariens 50103500

BELT GUARD W/DECALS

$

$

Not available

14

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, only 3 left!

0

15

Ariens 05947900

@BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, only 3 left!

0

16

Ariens 06603400

KEY-SQ .25 X 1.25 X .25 SAE

$3.99

$

In Stock, Qty 7

0

17

Ariens 00133151

REVERSE IDLER BRACKET

$5.53

$

Usually ships in 4-12 days

0

18

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 17

0

19

Ariens 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 10

0

20

Ariens 00133400

ENGINE SHEAVE

$

$

Not available

21

Ariens 06005500

SCR-SET .31-18X.38 SKHCUPDL

$3.49

$

In Stock, only 2 left!

0

22

Ariens 00133051

BELT FINGER

$

$

Not available

23

Ariens 05530300

BSHG-SLV .391X.688X.140

$

$

Not available

24

Ariens 00155000

BELT COVER BRACKET
(Superseded to 00155051)

$

$

Not available

25

Ariens 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.99

$

In Stock, Qty 5

0

26

Ariens 00417200

R KNIFE TINE

$26.99

$

In Stock, Qty 5

0

27

Ariens 00417100

L KNIFE TINE

$26.99

$

In Stock, Qty 5

0

28

Ariens 07050200

ELBOW .375X45 STREET

$

$

Not available

29

Ariens 08251400

ENGINE BRIGGS 8HP IND.

$

$

Not available

30

Ariens 06537100

NUT-NYLK WING .312-18 YWZC

$6.49

$

In Stock, only 1 left!

0

31

Ariens 00154100

BELT FINGER
(Superseded to 00154151)

$22.30

$

Usually ships in 4-12 days

0

32

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

33

Ariens 05957200

@BLT-HEX .31-18X2.00 GR5 YWZC
(Superseded to 05901805)

$1.99

$

In Stock, Qty 12

0

34

Ariens 06536900

NUT-JAM CTRLK .75-16 YWZC

$6.49

$

In Stock, Qty 12

0

35

Ariens 00133300

DRIVE SHEAVE

$

$

Not available

36

Ariens 06601100

KEY-FTHR .188X1.25X.187 SAE

$8.49

$

In Stock, Qty 5

0

37

Ariens 00134900

INNER TINE HUB

$224.99

$

Usually ships in 4-12 days

0

38

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

39

Ariens 00126700

CLIP

$19.99

$

Usually ships in 4-12 days

0

40

Ariens 00130500

DUST CAP

$23.99

$

Usually ships in 4-12 days

0

41

Ariens 06536400

@NUT-LK-CTR .44-14 YWZC
(Superseded to 06500930)

$3.49

$

In Stock, Qty 8

0

42

Ariens 05958700

@BLT-HEX .44-14X1.00 GR5 YWZC
(Superseded to 05901913)

$2.99

$

In Stock, only 1 left!

0

43

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0
