901024 (RT 8020) - Ariens 20" Rear Tine Tiller, 8hp Briggs & Stratton (SN: 000101 & Above) Idlers Parts Diagram

20" Rear Tine Tiller, 8hp Briggs & Stratton

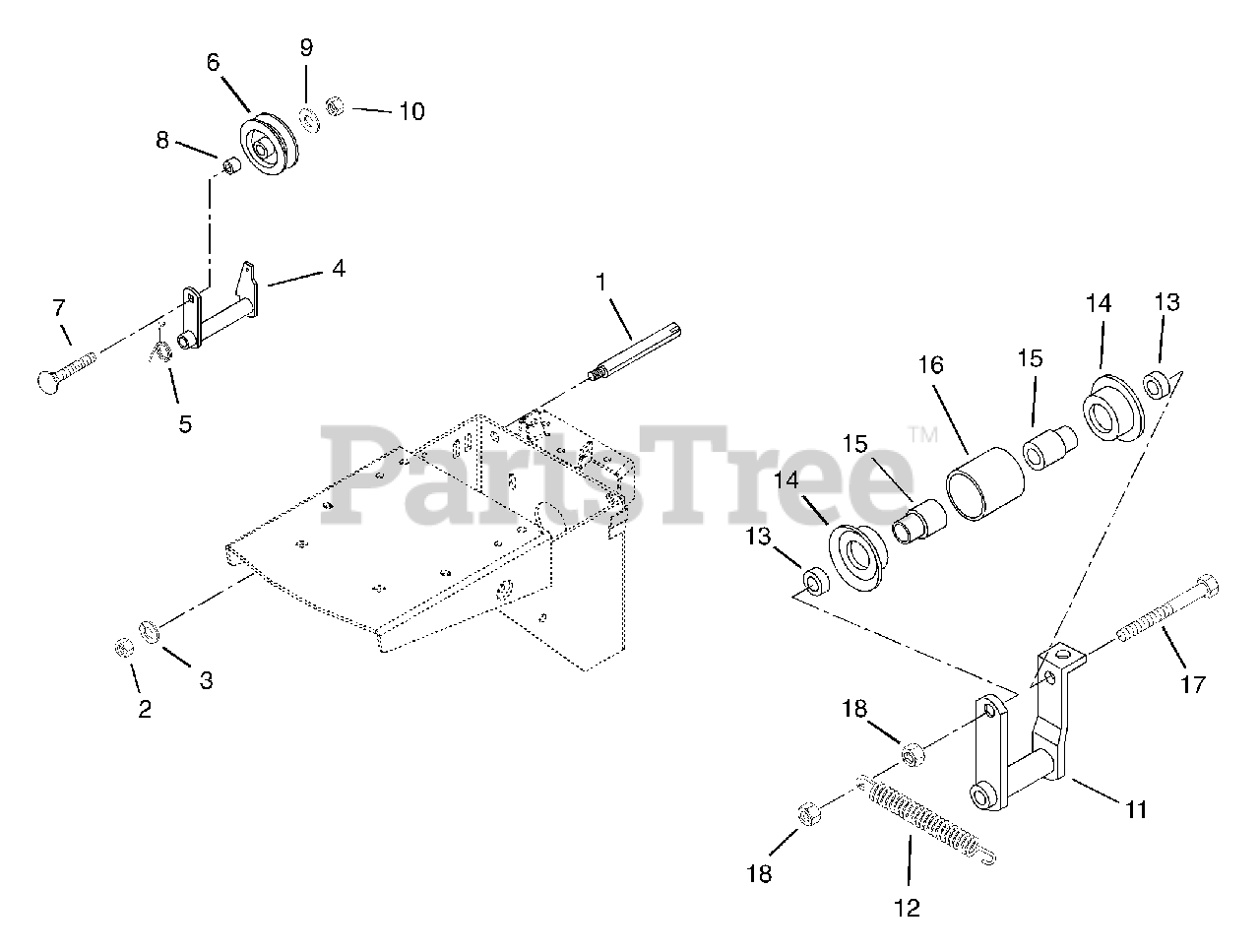

Idlers Parts Diagram

  • Title

1

Ariens 00135500

IDLER PIN

$

$

Not available

2

Ariens 06529400

@NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$0.99

$

In Stock, only 1 left!

0

3

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 18

0

4

Ariens 00156900

ARM, REVERSE IDLER
(Superseded to 00156951)

$20.99

$

Usually ships in 4-12 days

0

5

Ariens 08333100

SG-TORS

$

$

Not available

6

Ariens 02457400

IDLER
(Superseded to 52007000)

$39.99

$

In Stock, Qty 15

0

7

Ariens 06212100

@BLT-RDHDSQNK .31-18X1.50 G5YZ
(Superseded to 06200233)

$1.49

$

In Stock, Qty 9

0

8

Ariens 01213100

SPCR, BRG .315X.50X.688X.281

$3.49

$

In Stock, Qty 6

0

9

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 14

0

10

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 16

0

11

Ariens 00135251

IDLER ARM

$

$

Not available

12

Ariens 08302600

SG-TENS .063X.44X2.81 WLD 18

$20.99

$

Usually ships in 4-12 days

0

13

Ariens 00211100

BSHG, SPCR.500X.750X.321 PM

$3.49

$

In Stock, Qty 20+

0

14

Ariens 00212500

IDLER

$52.99

$

Usually ships in 4-12 days

0

15

Ariens 00130300

BEARING SPACER

$21.99

$

Usually ships in 4-12 days

0

16

Ariens 00132800

SLEEVE

$32.99

$

Usually ships in 4-12 days

0

17

Ariens 05963200

@BLT-HEX .31-18X4.00 GR5 YWZC
(Superseded to 05901834)

$3.99

$

Usually ships in 4-12 days

0

18

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0
