901024 (RT 8020) - Ariens 20" Rear Tine Tiller, 8hp Briggs & Stratton (SN: 000101 & Above) Lower Controls And Wheels Parts Diagram

20" Rear Tine Tiller, 8hp Briggs & Stratton

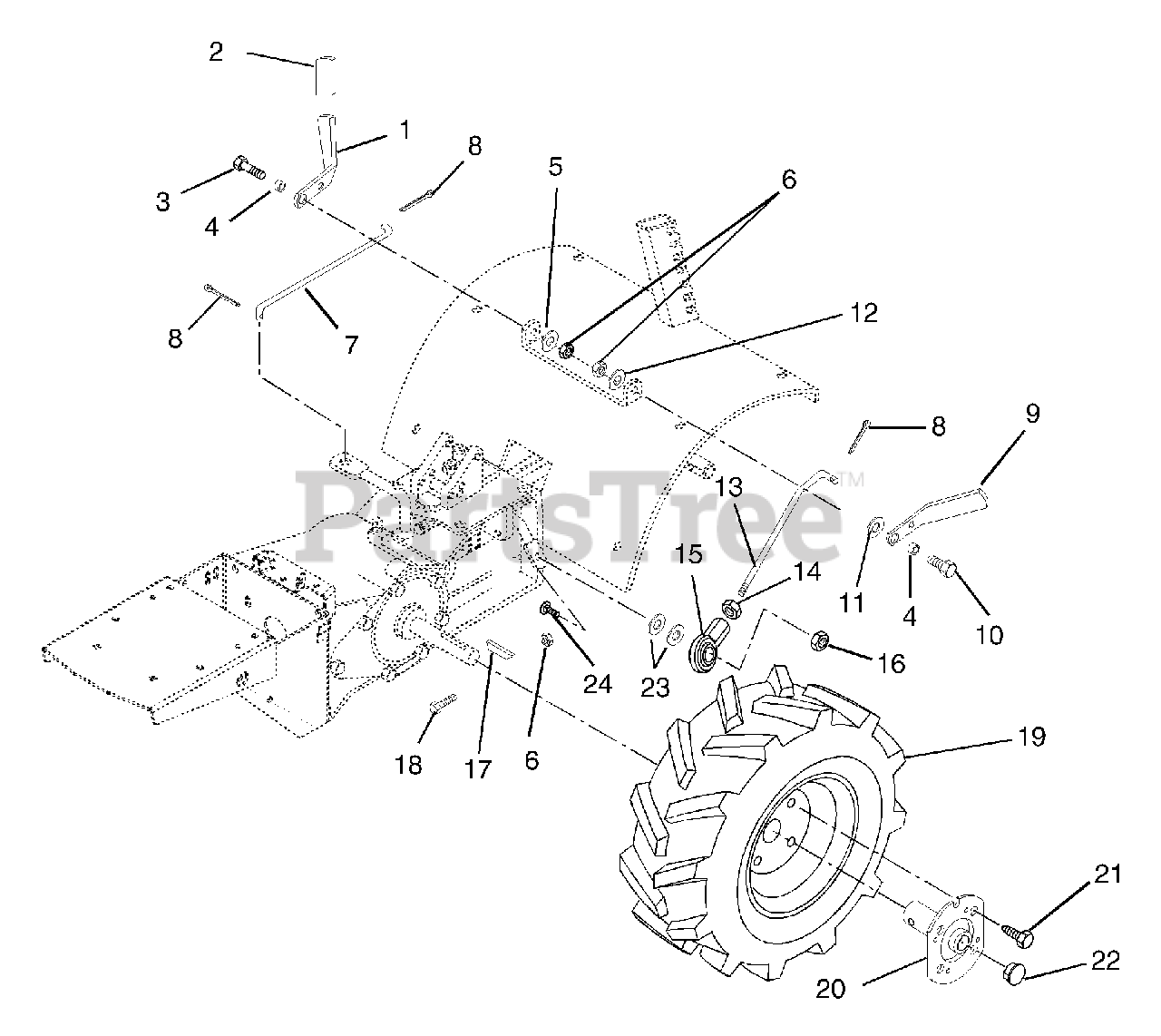

Lower Controls And Wheels Parts Diagram

  • Title

1

Ariens 00104259

DRIVE CLUTCH HANDLE

$

$

Not available

2

Ariens 07509400

GRIP

$

$

Not available

3

Ariens 05947500

@BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.49

$

In Stock, only 2 left!

0

4

Ariens 00607100

SPACER BUSHING .5 X .32 X .21

$14.99

$

Usually ships in 4-12 days

0

5

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 16

0

6

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 00111500

DRIVE CLUTCH ROD

$45.99

$

Usually ships in 4-12 days

0

8

Ariens 06706900

@PIN-CTR .09X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, Qty 5

0

9

Ariens 00104359

TILLER CLUTCH HANDLE

$

$

Not available

10

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 12

0

11

Ariens 02513500

SPACER .344X1.000X.375

$

$

Not available

12

Ariens 06446900

WSHR-FL-STL .347X1.254X.048YWZ
(Superseded to 06401105)

$2.49

$

Usually ships in 4-12 days

0

13

Ariens 00104400

TILLER CLUTCH ROD

$

$

Not available

14

Ariens 06529500

NUT-HEX .312-24 YWZC
(Superseded to 06500939)

$1.99

$

Usually ships in 4-12 days

0

15

Ariens 01542600

ROD END, FEMALE 5/16
(Superseded to 03787100)

$12.99

$

In Stock, Qty 5

0

16

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 06601000

KEY-FTHR .25X1.875X.25 SAE

$4.99

$

Usually ships in 4-12 days

0

18

Ariens 05957200

@BLT-HEX .31-18X2.00 GR5 YWZC
(Superseded to 05901805)

$1.49

$

In Stock, Qty 13

0

19

Ariens 07121900

T/WHL ASSY 4.80-8
(Superseded to 07100017)

$136.99

$

Usually ships in 4-12 days

0

20

Ariens 00132751

WHEEL HUB

$

$

Not available

21

Ariens 07412200

SCR-TAP .500-20X.62 HH YWZC
(Superseded to 07416900)

$13.99

$

In Stock, only 3 left!

0

22

Ariens 07529500

HOLE PLUG 1.00"

$

$

Not available

23

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 6

0

24

Ariens 06216100

@BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.49

$

In Stock, Qty 13

0
