901027 (RT 8020) - Ariens 20" Rear Tine Tiller, 8hp Briggs & Stratton (SN: 000101 & Above) Frame And Transmissions Parts Diagram

20" Rear Tine Tiller, 8hp Briggs & Stratton

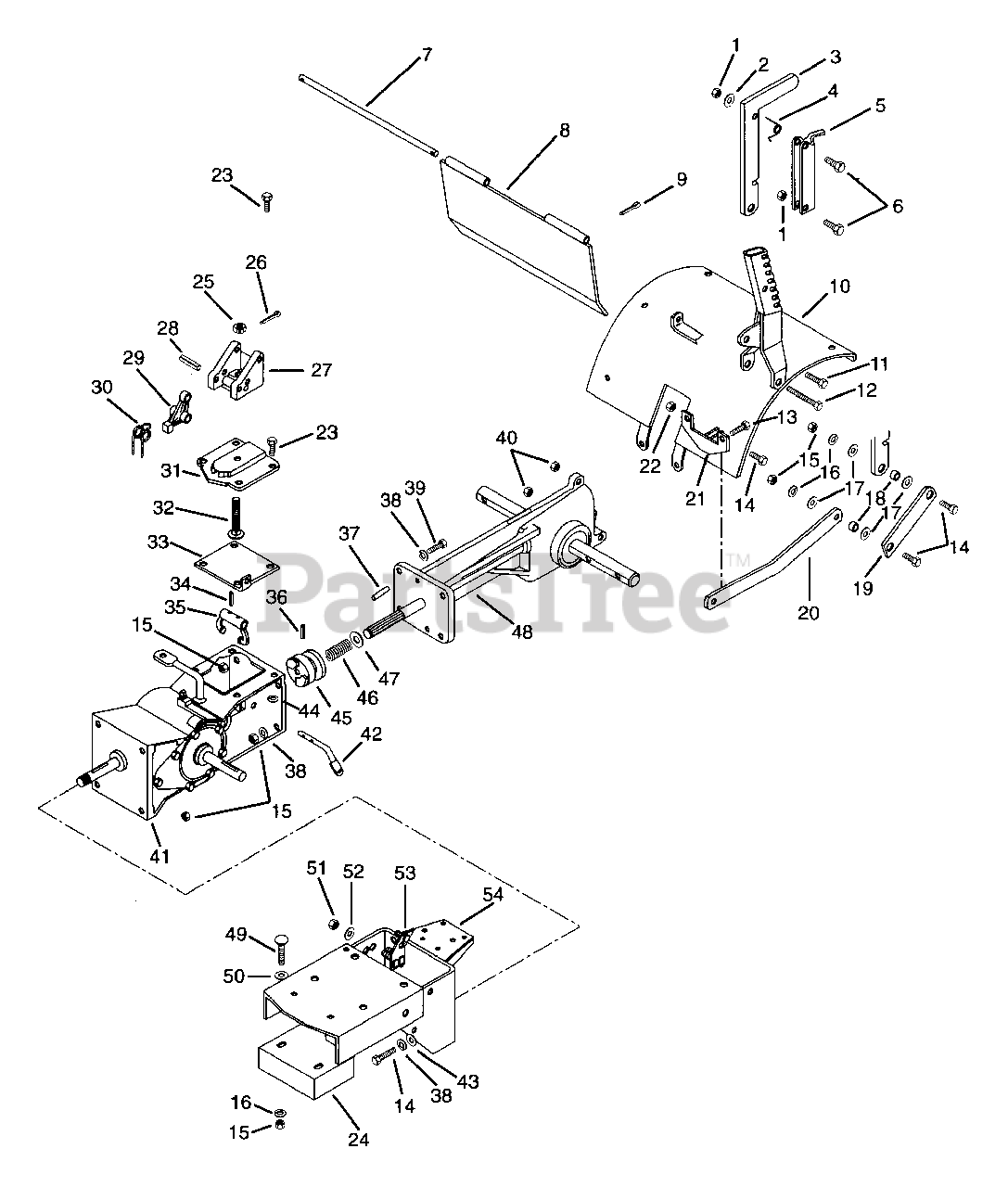

Frame And Transmissions Parts Diagram

  • Title

1

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

2

Ariens 06412700

WSHR-FL-STL.281X.62X.065 PL
(Superseded to 06437300)

$0.99

$

In Stock, Qty 16

0

3

Ariens 00142800

HANDLE WELDMENT
(Superseded to 00142859)

$

$

Not available

4

Ariens 08321800

SG-TORS .050X.25X2.33

$

$

Not available

5

Ariens 00142500

TRIGGER
(Superseded to 00142559)

$

$

Not available

6

Ariens 05905600

BLT-HEX .25-20X1.25 PL GR5
(Superseded to 05947400)

$1.99

$

In Stock, Qty 5

0

7

Ariens 00103700

TAILBOARD PIN

$66.99

$

Usually ships in 4-12 days

0

8

Ariens 00143700

TAILBOARD WELDMENT
(Superseded to 00158959)

$155.99

$

Usually ships in 4-12 days

0

9

Ariens 06703400

PIN COTR .09X.50 PL
(Superseded to 06707400)

$0.99

$

Usually ships in 4-12 days

0

10

Ariens 50102200

TINE HOOD W/DECAL

$

$

Not available

11

Ariens 05906900

BLT-HEX .31-18X1.25 PL GR2
(Superseded to 05947500)

$2.49

$

In Stock, only 2 left!

0

12

Ariens 05919200

BLT-HEX .31-18X3.50 PL GR2
(Superseded to 05948000)

$2.49

$

Usually ships in 4-12 days

0

13

Ariens 05914900

BLT-HEX .38-16X2.25 PL GR2
(Superseded to 05962900)

$3.99

$

In Stock, Qty 20+

0

14

Ariens 05900500

BLT-HEX .38-16X1.25 PL GR 2
(Superseded to 05958000)

$1.49

$

In Stock, Qty 7

0

15

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, only 2 left!

0

16

Ariens 06302100

WSHR-LK .375X.094 MED PL
(Superseded to 06308800)

$0.99

$

In Stock, Qty 18

0

17

Ariens 06409300

WSHR-FL-STL .382X.812X.062
(Superseded to 06435700)

$1.49

$

In Stock, Qty 14

0

18

Ariens 00144100

SPACER BUSHING .63 X .38 X .27

$18.99

$

Usually ships in 4-12 days

0

19

Ariens 00146000

CHISEL POINT
(Superseded to 00146051)

$31.99

$

Usually ships in 4-12 days

0

20

Ariens 00146100

DRAG LINK
(Superseded to 00146151)

$51.99

$

Usually ships in 4-12 days

0

21

Ariens 00142700

PIVOT BRACKET
(Superseded to 00142751)

$6.65

$

Usually ships in 4-12 days

0

22

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

23

Ariens 05906900

BLT-HEX .31-18X1.25 PL GR2
(Superseded to 05947500)

$2.49

$

In Stock, only 2 left!

0

24

Ariens 00129500

WEIGHT WAFER

$6.65

$

Usually ships in 4-12 days

0

25

Ariens 06505000

NUT-SL .50-13

$3.99

$

Usually ships in 4-12 days

0

26

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 12

0

27

Ariens 00110600

HANDLEBAR BRACKET
(Superseded to 00158800)

$

$

Not available

28

Ariens 05801300

PIN-ROLL .313X2.00

$2.99

$

Usually ships in 4-12 days

0

29

Ariens 00102600

LATCH

$

$

Not available

30

Ariens 08300300

SG-TORS .109X.88X2.25

$34.99

$

Usually ships in 4-12 days

0

31

Ariens 00129000

PIVOT CAP

$

$

Not available

32

Ariens 00107700

SWIVEL BOLT

$77.99

$

Usually ships in 4-12 days

0

33

Ariens 00136200

PIVOT BRACKET

$

$

Not available

34

Ariens 05801600

PIN-ROLL .188X1.00
(Superseded to 02470401)

$2.49

$

In Stock, only 2 left!

0

35

Ariens 00100800

CLUTCH FORK

$56.99

$

Usually ships in 4-12 days

0

36

Ariens 05800900

PIN-ROLL .125X1.00

$0.99

$

In Stock, Qty 18

0

37

Ariens 05802000

PIN-GRV .375X1.00 TP C

$

$

Not available

38

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$3.49

$

In Stock, Qty 10

0

39

Ariens 05902700

BLT-HEX .38-16X1.75 PL GR2
(Superseded to 05958500)

$1.49

$

In Stock, only 4 left!

0

40

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

41

Ariens 50103100

TRANSMISSION GEARCASE ASSY

$

$

Not available

42

Ariens 00102300

TINE ENGAGING FORK SHAFT

$

$

Not available

43

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

44

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

45

Ariens 00103900

TILLER JAW CLUTCH

$147.99

$

Usually ships in 4-12 days

0

46

Ariens 08300500

SG-COMP .080X.97X2.18 WLD14

$14.99

$

In Stock, only 1 left!

0

47

Ariens 06403300

WSHR-FL-STL .755X1.375X.125

$3.99

$

In Stock, only 1 left!

0

48

Ariens 50102900

TILLER GEAR CASE - C.I.

$

$

Not available

49

Ariens 06200300

BLT-RDHDSQNK .38-16X1.75 PL
(Superseded to 06223800)

$3.99

$

In Stock, only 2 left!

0

50

Ariens 06403900

WSHR-FL-STL .630X1.005X.062 PL
(Superseded to 06436100)

$0.99

$

In Stock, Qty 20+

0

51

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

52

Ariens 06405700

WSHR-FL-STL .323X.625X.062 PL
(Superseded to 06436700)

$1.49

$

In Stock, only 2 left!

0

53

Ariens 00133200

BELT FINGER BRACKET

$5.99

$

Usually ships in 4-12 days

0

54

Ariens 00155300

FRAME

$

$

Not available
