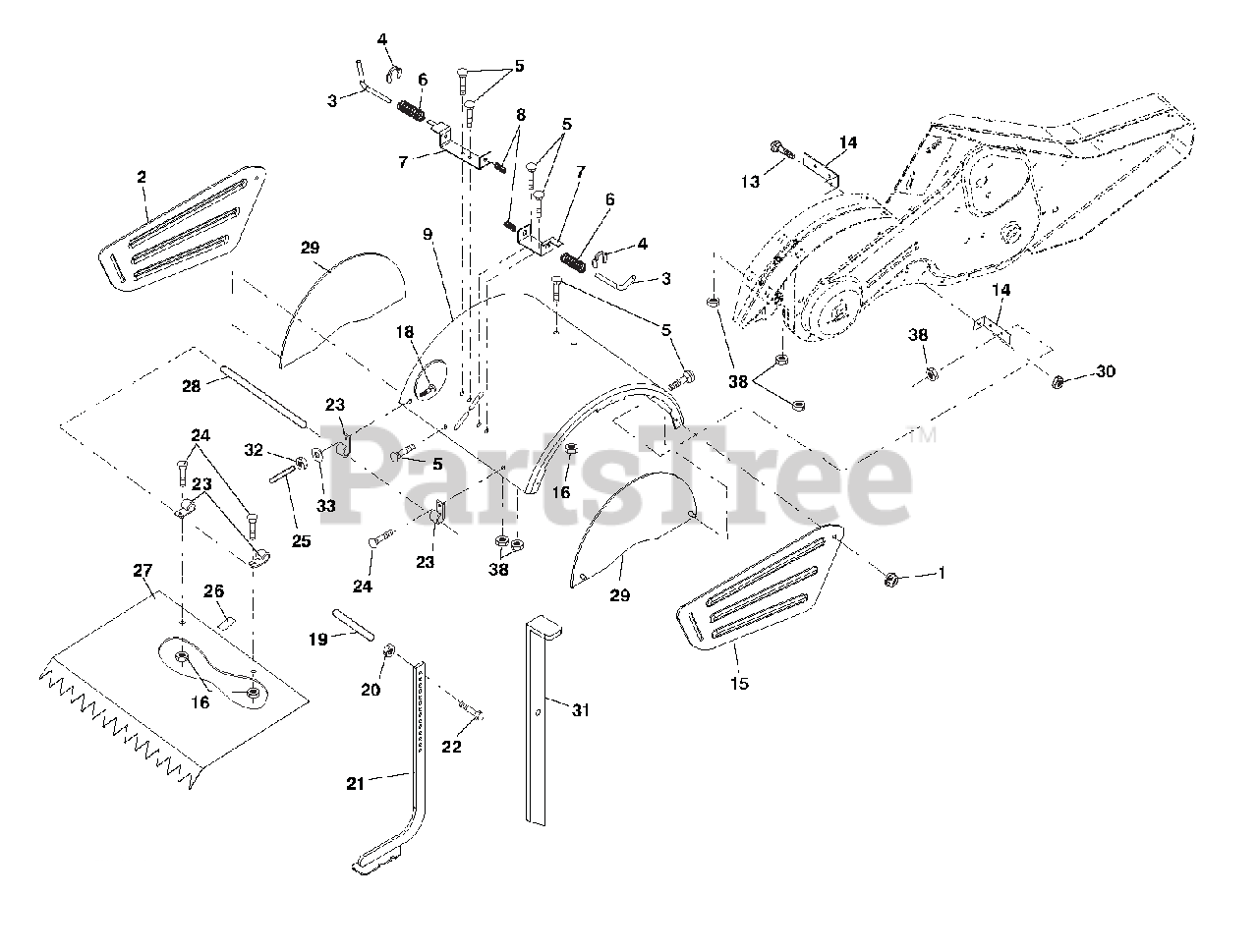

901028 (960960001-02) - Ariens 17" Rear Tine Tiller, Subaru Tine Shield Parts Diagram

17" Rear Tine Tiller, Subaru

Tine Shield Parts Diagram

  • Title

1

Ariens 21546789

Nut, Lock Hex Flange 5/16-18 u
(Superseded to 06530400)

$1.49

$

In Stock, only 4 left!

0

2

Ariens 21547617

SHIELD, SIDE, OUTER, L.H.

$

$

Not available

3

Ariens 21546828

Pin, Stake, Depth

$25.99

$

Usually ships in 4-12 days

0

4

Ariens 21546055

Ring, Klip

$6.49

$

Usually ships in 4-12 days

0

5

Ariens 21546218

Bolt, Carriage, Gr. 5 5/16-18
(Superseded to 06215700)

$2.49

$

In Stock, only 1 left!

0

6

Ariens 21546829

Spring

$6.49

$

Usually ships in 4-12 days

0

7

Ariens 21546827

Bracket, Latch

$

$

Not available

8

Ariens 21546043

Spring, Depth Stake

$

$

Not available

9

Ariens 21547619

SHIELD, TINE

$

$

Not available

13

Ariens 21546763

Bolt, Carriage 5/16-18 x 1-1/4
(Superseded to 06200310)

$1.49

$

In Stock, only 1 left!

0

14

Ariens 21546075

Bracket, Shield Tine

$6.49

$

Usually ships in 4-12 days

0

15

Ariens 21547616

SHIELD, SIDE, OUTER, RH

$

$

Not available

16

Ariens 21546788

Nut, Hex Flange 1/4-20 unc
(Superseded to 06533300)

$3.99

$

Usually ships in 4-12 days

0

18

Ariens 21546758

Bolt, Carriage 1/4-20 x 1-1/4

$

$

Not available

19

Ariens 21546021

Grip

$

$

Not available

20

Ariens 21546776

Nut, Hex 3/8-16

$

$

Not available

21

Ariens 21546013

Stake, Depth

$

$

Not available

22

Ariens 21546819

Bolt, Hex 3/8-16 x 2

$

$

Not available

23

Ariens 21546738

Hinge

$

$

Not available

24

Ariens 21546769

Bolt, Carriage 1/4-20 x 1/2
(Superseded to 06220600)

$0.99

$

In Stock, Qty 7

0

25

Ariens 21546752

Cap, Vinyl

$

$

Not available

26

Ariens 21546040

Pad, Idler

$

$

Not available

27

Ariens 21547615

SHIELD, LEVELING

$

$

Not available

28

Ariens 21546062

Pin, Hinge

$

$

Not available

29

Ariens 21547621

SHIELD, SIDE

$

$

Not available

30

Ariens 21546796

Nut, Hex, Flangelock
(Superseded to 06500020)

$3.99

$

Usually ships in 4-12 days

0

31

Ariens 21546163

Stake, Drag

$6.99

$

Usually ships in 4-12 days

0

32

Ariens 21546774

Nut, Fin, Hex 1/4-20 unc

$

$

Not available

33

Ariens 21546001

Washer, Lock 1/4

$7.99

$

In Stock, only 1 left!

0

38

Ariens 21546780

Nut, Keps 5/16-18 unc

$2.49

$

Usually ships in 4-12 days

0
