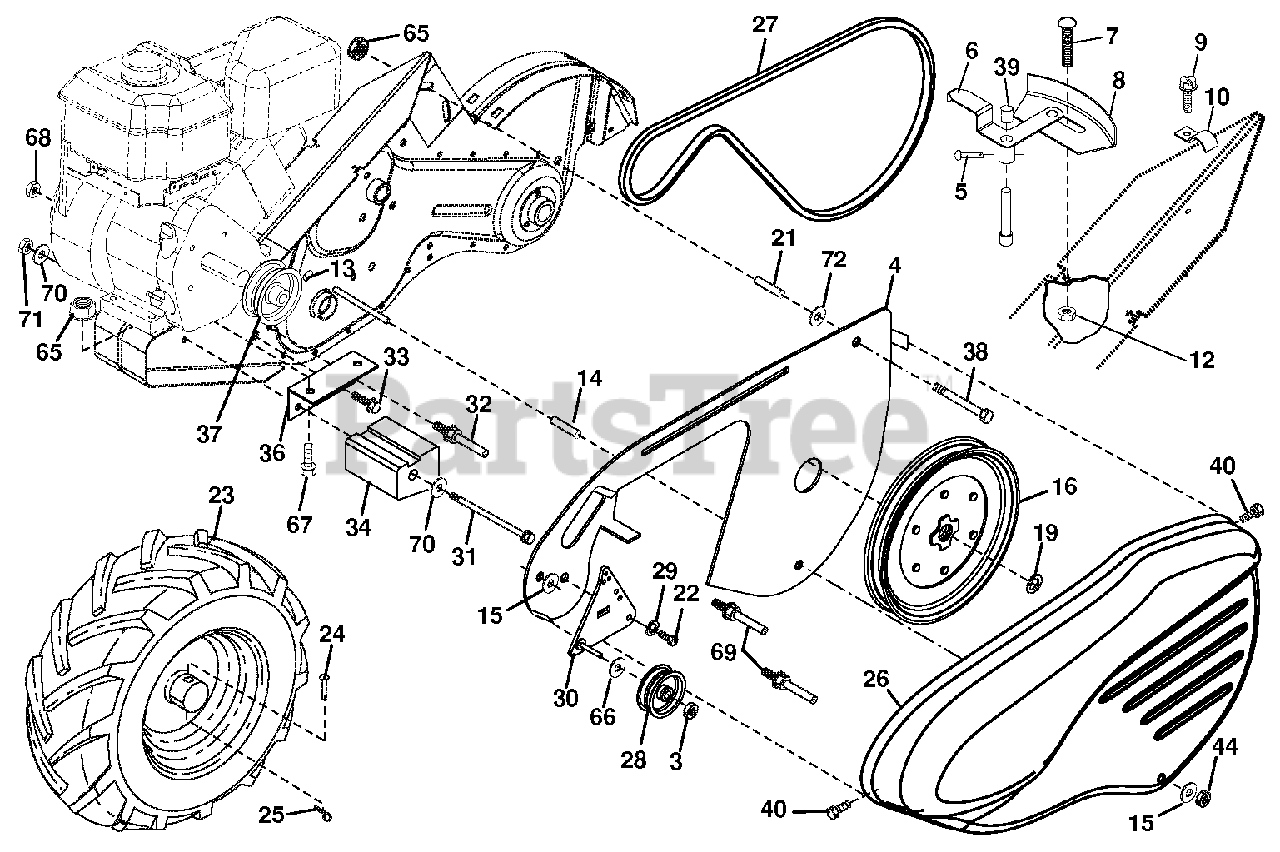

901028 (960960001-05) - Ariens 17" Rear Tine Tiller, Subaru Mainframe, Left Side Parts Diagram

17" Rear Tine Tiller, Subaru

Mainframe, Left Side Parts Diagram

  • Title

3

Ariens 21546794

NUT.CENTERLOCK.3/8-16 UNC.

$3.49

$

In Stock, Qty 9

0

4

Ariens 21547598

SHIELD, INNER BELT GUARD

$

$

Not available

5

Ariens 21546166

Pin, Shift Lever

$7.49

$

In Stock, Qty 12

0

6

Ariens 21546161

Lever, Shift

$19.99

$

Usually ships in 4-12 days

0

7

Ariens 21546760

Bolt 1/4-20 unc x 1/2 Gr. 5
(Superseded to 05947900)

$0.99

$

In Stock, Qty 5

0

8

Ariens 21546158

Plate, Shift Indicator

$5.99

$

Usually ships in 4-12 days

0

9

Ariens 21546830

Screw, Tap Hex Head

$

$

Not available

10

Ariens 21546839

Clip, Cable

$

$

Not available

12

Ariens 21546779

Nut, Keps Hex 1/4-20 unc

$2.99

$

Usually ships in 4-12 days

0

13

Ariens 21546545

Screw Set 5/16-18 x 3/8 Patch
(Superseded to 06005500)

$2.99

$

In Stock, Qty 17

0

14

Ariens 21546135

Spacer, Split .327 x .42 x 1.2

$

$

Not available

15

Ariens 21546279

Washer 11/32 x 11/16 x 16 Ga.
(Superseded to 06437200)

$0.99

$

In Stock, Qty 8

0

16

Ariens 21546111

Sheave, Transmission

$60.99

$

Usually ships in 4-12 days

0

19

Ariens 21546052

Ring, Retainer

$

$

Not available

21

Ariens 21546135

Spacer, Split .327 x .42 x 1.2

$

$

Not available

22

Ariens 21546813

Bolt, Hex Head 5/16-24 unf x 1

$

$

Not available

23

Ariens 21548789

TIRE AND WHEEL ASSEMBLY

$

$

Not available

24

Ariens 21546078

Rivet, Drilled

$7.49

$

Usually ships in 4-12 days

0

25

Ariens 21546739

Retainer Spring

$

$

Not available

26

Ariens 21547618

GUARD, BELT

$

$

Not available

27

Ariens 21546085

Belt, V

$

$

Not available

28

Ariens 21546022

Pulley, Idler

$28.99

$

Usually ships in 4-12 days

0

29

Ariens 21546054

Ring, Klip

$

$

Not available

30

Ariens 21548791

BRACKET, IDLER

$

$

Not available

31

Ariens 21548792

BOLT, HEX HEAD 5/16-16 X 12

$

$

Not available

32

Ariens 21546012

Shaft, Idler Arm

$10.99

$

Usually ships in 4-12 days

0

33

Ariens 21546811

Bolt, Hex 3/8-16 x 1
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

34

Ariens 21548793

COUNTERWEIGHT, LH

$

$

Not available

36

Ariens 21546016

Bracket, Reinforcement, LH

$

$

Not available

37

Ariens 21546079

Sheave, Engine

$

$

Not available

38

Ariens 21546809

Bolt, Fin Hex 5/16-18 x 2-3/4

$

$

Not available

39

Ariens 21546099

Cap, Plunger

$

$

Not available

40

Ariens 21546185

Screw Hex Wsh Hd #8-18 x 1/2

$

$

Not available

44

Ariens 21546786

Locknut, Washer Insert 5/16-18
(Superseded to 21546784)

$3.99

$

Usually ships in 4-12 days

0

65

Ariens 21546796

Nut, Hex, Flangelock
(Superseded to 06500020)

$3.99

$

Usually ships in 4-12 days

0

66

Ariens 21546283

Washer 13/32 x 13/16 x 12 Ga.
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

67

Ariens 21546808

Bolt, Fin Hex 5/16-18 unc x 1-

$

$

Not available

68

Ariens 21546781

Nut Keps Hex 3/8-16 unc

$

$

Not available

69

Ariens 21547583

KEEPER BELT ENGINE

$12.99

$

Usually ships in 4-12 days

0

70

Ariens 21546286

WASHER.13/32 X 1-1/4 X 12 GA.

$1.99

$

Usually ships in 4-12 days

0

71

Ariens 21546785

Nut, Hex, Crownlock 3/8-16

$3.99

$

Usually ships in 4-12 days

0

72

Ariens 21548793

COUNTERWEIGHT, LH

$

$

Not available
