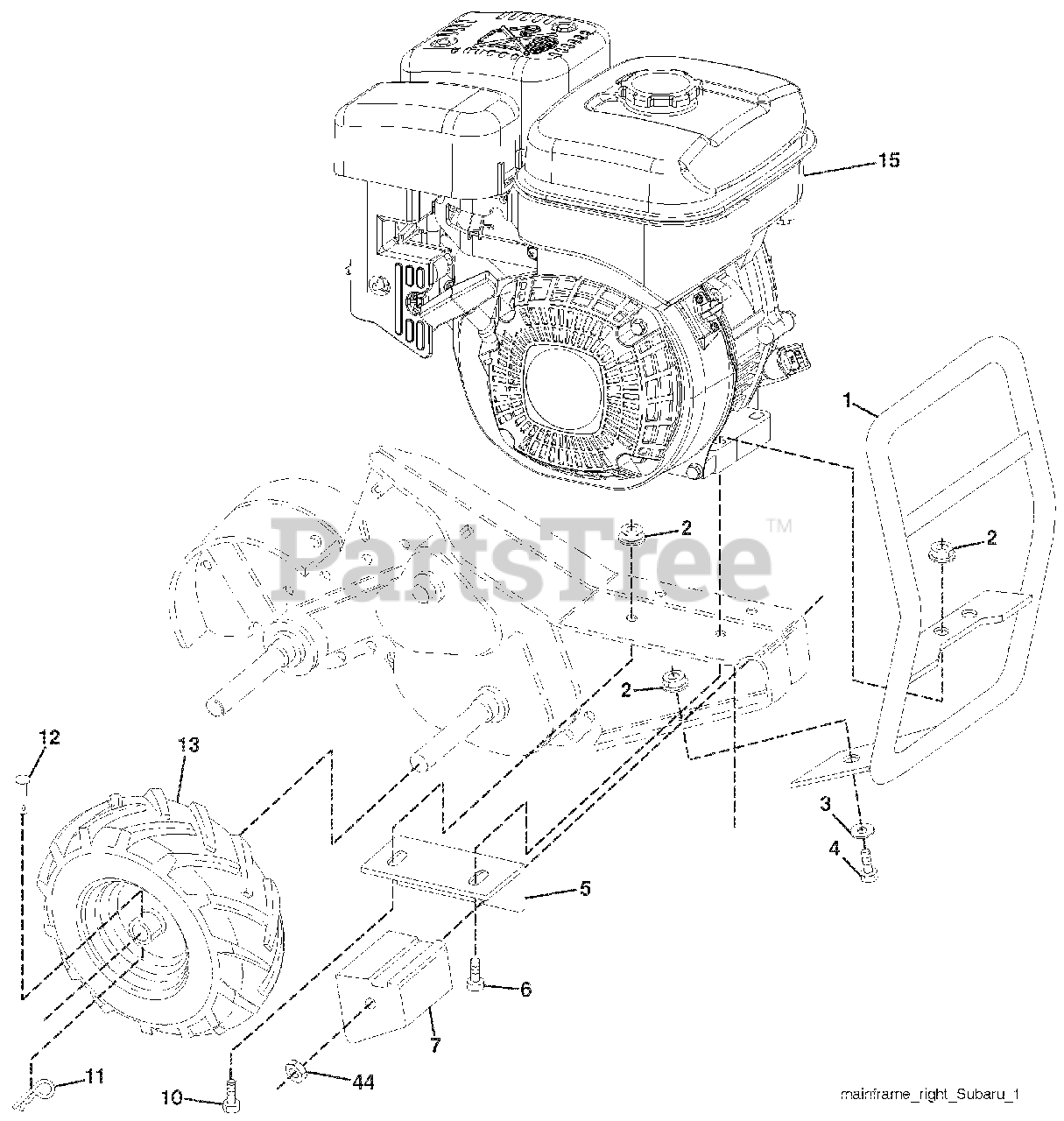

901028 (960960001-05) - Ariens 17" Rear Tine Tiller, Subaru Mainframe, Right Side Parts Diagram

17" Rear Tine Tiller, Subaru

Mainframe, Right Side Parts Diagram

  • Title

1

Ariens 21546231

Bumper

$

$

Not available

2

Ariens 21546796

Nut, Hex, Flangelock
(Superseded to 06500020)

$3.99

$

Usually ships in 4-12 days

0

3

Ariens 21546279

Washer 11/32 x 11/16 x 16 Ga.
(Superseded to 06437200)

$0.99

$

In Stock, only 3 left!

0

4

Ariens 21546804

Bolt, Hex Head 5/16-18 x 3/4

$5.99

$

In Stock, only 4 left!

0

5

Ariens 21546017

Bracket, Reinforcement

$

$

Not available

6

Ariens 21546808

Bolt, Fin Hex 5/16-18 unc x 1-

$

$

Not available

7

Ariens 21548795

COUNTERWEIGHT, RH

$

$

Not available

10

Ariens 21546807

Bolt, Hex Head, Gr. 25/16-18 x
(Superseded to 05952400)

$1.49

$

Usually ships in 4-12 days

0

11

Ariens 21546739

Retainer Spring

$

$

Not available

12

Ariens 21546078

Rivet, Drilled

$7.49

$

Usually ships in 4-12 days

0

13

Ariens 21548790

TIRE AND WHEEL ASSEMBLY

$

$

Not available

15

Ariens 21548805

ENGINE SUBARU MDL# EX170DT1031

$

$

Not available

15

call Subaru toll free at 1-800-277-6246)

Note: call Subaru toll free at 1-800-277-6246)

$

$

Not available

44

Ariens 21546785

Nut, Hex, Crownlock 3/8-16

$3.99

$

Usually ships in 4-12 days

0
