901428 (RT 5020) - Ariens 20" Rear Tine Tiller, 5hp Tecumseh (SN: 000101 & Above) Shifting Assembly Parts Diagram

20" Rear Tine Tiller, 5hp Tecumseh

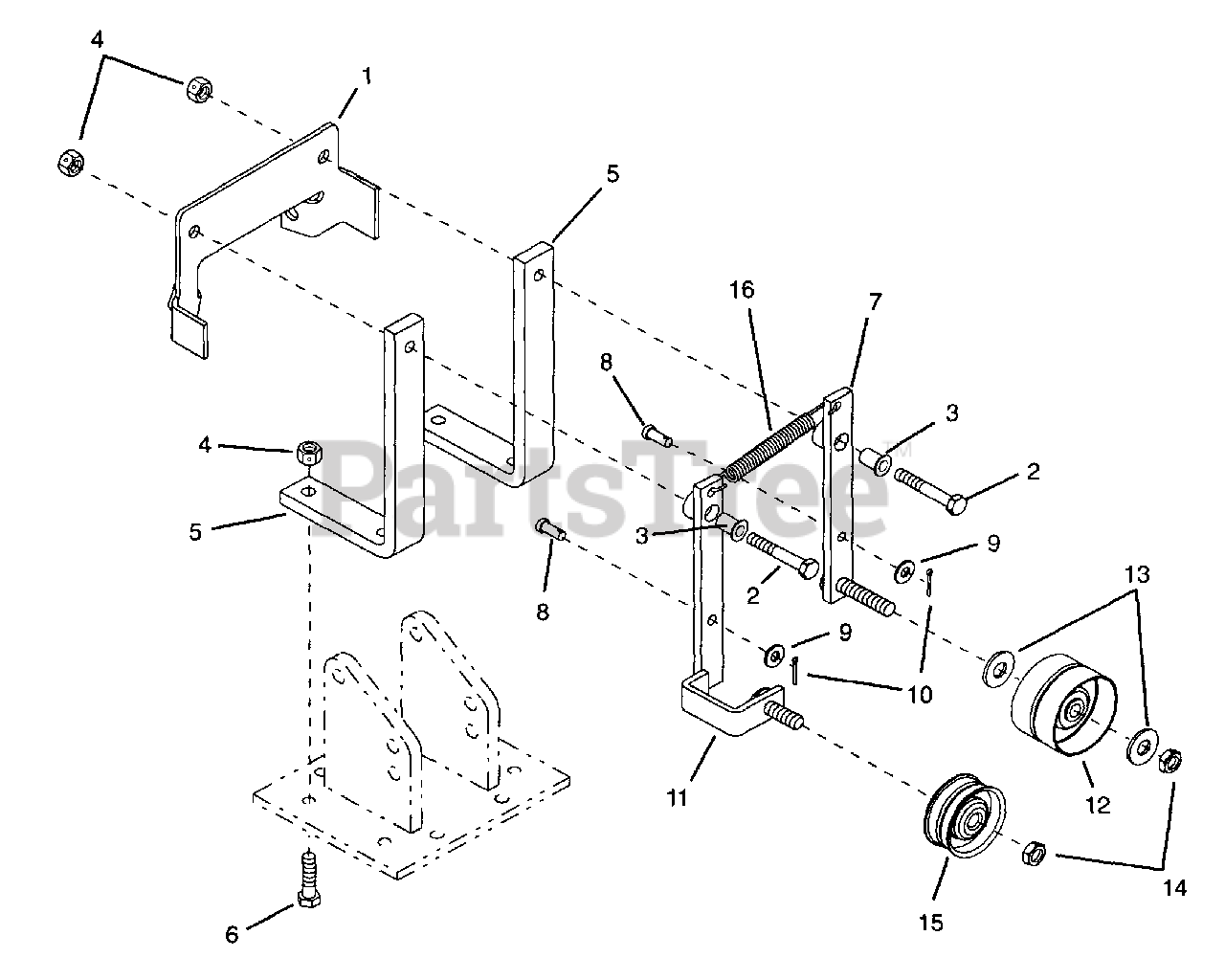

Shifting Assembly Parts Diagram

  • Title

1

Ariens 00156300

PLATE, ANCHOR

$

$

Not available

2

Ariens 05957200

@BLT-HEX .31-18X2.00 GR5 YWZC
(Superseded to 05901805)

$1.49

$

In Stock, Qty 13

0

3

Ariens 05530400

BSHG-FLG .325X.465X.831X.685

$

$

Not available

4

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 00141900

SHIFT MOUNTING BAR
(Superseded to 00141951)

$14.48

$

Usually ships in 4-12 days

0

6

Ariens 05947500

@BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.49

$

In Stock, only 2 left!

0

7

Ariens 00146900

IDLER ARM - FORWARD
(Superseded to 00146951)

$

$

Not available

8

Ariens 06814200

PIN-CLEV .25X.62

$

$

Not available

9

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 16

0

10

Ariens 06712500

PIN-COTR .062 X .50
(Superseded to 06712400)

$3.99

$

Usually ships in 4-12 days

0

11

Ariens 00146800

IDLER ARM - REVERSE
(Superseded to 00146851)

$

$

Not available

12

Ariens 07310800

IDLER-FLAT 2.25 X .38

$34.99

$

In Stock, only 3 left!

0

13

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.49

$

In Stock, only 2 left!

0

14

Ariens 06537200

@NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 07320400

IDLER-FLAT 2.000X.375

$

$

Not available

16

Ariens 08311800

SG-TENS .047X.44X3.5 WLD 3

$

$

Not available
