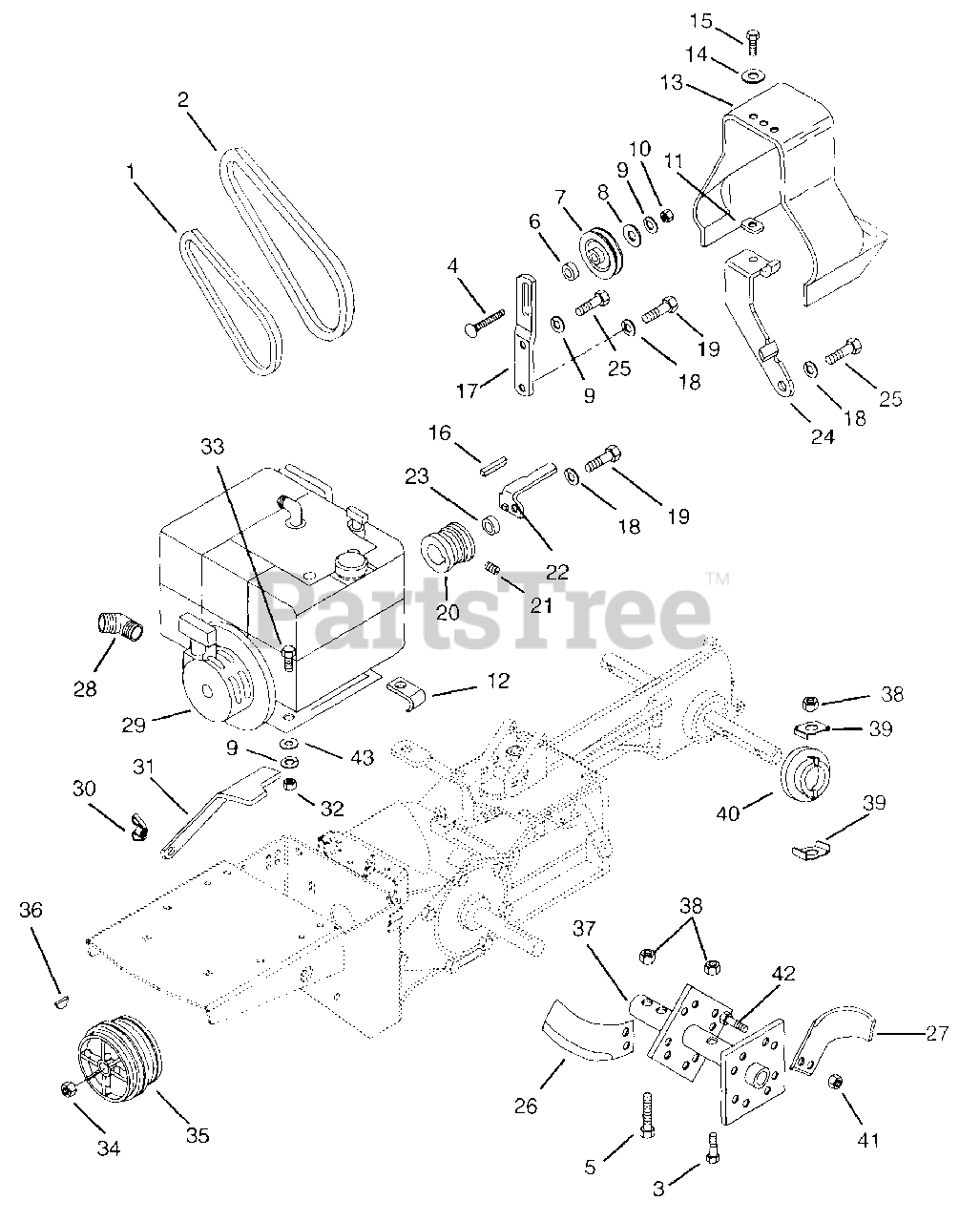

901429 (RT 8020) - Ariens 20" Rear Tine Tiller, 8hp Briggs & Stratton (SN: 000101 & Above) > Parts Diagrams (9) > Belt Drive And Tines

  • Title
07231600

1

V-BELT, SAE 380-RAW EDGE (SET)

Part# 07231600

Note: (Reverse)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $44.66

07212700

2

V-BELT, 3L-COGGED

Part# 07212700

Note: (Forward)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $22.30

05963100

3

BLT-HEX .38-16X2.00 GR8 YWZC

Part# 05963100

OEM Warranty Repair Part for Ariens

Not available

06214000

4

BLT-RDHDSQSHK .31-18X1.38 GR5Y

Part# 06214000

OEM Warranty Repair Part for Ariens

Not available

05963000

5

BLT-HEX .38-16X2.75 GR8 YWZC

Part# 05963000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

01213100

6

SPCR, BRG .315X.50X.688X.281

Part# 01213100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

02457400

7

IDLER

Part# 02457400 (Superseded to 52007000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $42.43

06435700

8

@WSHR-FL-STL.38X.875X.083 YWZC

Part# 06435700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06308600

9

@WSHR-LK .31X.078 REG YWZC

Part# 06308600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06529200

10

@NUT-HEX .31-18 YWZC

Part# 06529200

OEM Warranty Repair Part for Ariens

Not available

06513000

11

NUT-SPEED U-TYPE .250-20

Part# 06513000

OEM Warranty Repair Part for Ariens

Not available

06909400

12

J-CLAMP

Part# 06909400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

50103500

13

BELT GUARD W/DECALS

Part# 50103500

OEM Warranty Repair Part for Ariens

Not available

06437300

14

@WSHR-FL-STL.281X.62X.065 YWZC

Part# 06437300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

05947900

15

@BLT-HEX .25-20X.50 GR5 YWZC

Part# 05947900

OEM Warranty Repair Part for Ariens

Not available

06603400

16

KEY-SQ .25 X 1.25 X .25 SAE

Part# 06603400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

00133100

17

REVERSE IDLER BRACKET

Part# 00133100 (Superseded to 00133151)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

06308800

18

@WSHR-LK .38X.094 REG YWZC

Part# 06308800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

05959400

19

@BLT-HEX .38-16X.75 GR5 YWZC

Part# 05959400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

00133400

20

ENGINE SHEAVE

Part# 00133400

OEM Warranty Repair Part for Ariens

Not available

06001200

21

SCR-SET .32-18X.38 SKHCUPNL OH

Part# 06001200 (Superseded to 06005500)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

00133000

22

BELT FINGER

Part# 00133000 (Superseded to 00133051)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $11.12

05530300

23

BSHG-SLV .391X.688X.140

Part# 05530300

OEM Warranty Repair Part for Ariens

Not available

00155000

24

BELT COVER BRACKET

Part# 00155000 (Superseded to 00155051)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

05947300

25

BLT-HEX .31-24X.75 YWZC GR5

Part# 05947300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

00417200

26

R KNIFE TINE

Part# 00417200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $24.54

00417100

27

L KNIFE TINE

Part# 00417100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $24.54

07050200

28

ELBOW .375X45 STREET

Part# 07050200

OEM Warranty Repair Part for Ariens

Not available

08247500

29

ENGINE, B&S 8HP MODEL 196432

Part# 08247500

OEM Warranty Repair Part for Ariens

Not available

06537100

30

NUT-NYLK WING .312-18 YWZC

Part# 06537100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

00154100

31

BELT FINGER

Part# 00154100 (Superseded to 00154151)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $22.30

06529200

32

@NUT-HEX .31-18 YWZC

Part# 06529200

OEM Warranty Repair Part for Ariens

Not available

05957200

33

@BLT-HEX .31-18X2.00 GR5 YWZC

Part# 05957200

OEM Warranty Repair Part for Ariens

Not available

06536900

34

NUT-JAM CTRLK .75-16 YWZC

Part# 06536900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

00133300

35

DRIVE SHEAVE

Part# 00133300

OEM Warranty Repair Part for Ariens

Not available

06601100

36

KEY-FTHR .188X1.25X.187 SAE

Part# 06601100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

00134900

37

INNER TINE HUB

Part# 00134900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $110.63

06529600

38

@NUT-LK-CTR .38-16 YWZC

Part# 06529600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

00126700

39

CLIP

Part# 00126700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $12.24

00130500

40

DUST CAP

Part# 00130500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $13.53

06501900

41

NUT-LK-TOP .437-14 GR C PL

Part# 06501900 (Superseded to 06536400)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

05902600

42

BLT-HEX .44-14X1.00 GR5

Part# 05902600 (Superseded to 05958700)

OEM Warranty Repair Part for Ariens

Not available

06435700

43

@WSHR-FL-STL.38X.875X.083 YWZC

Part# 06435700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40
